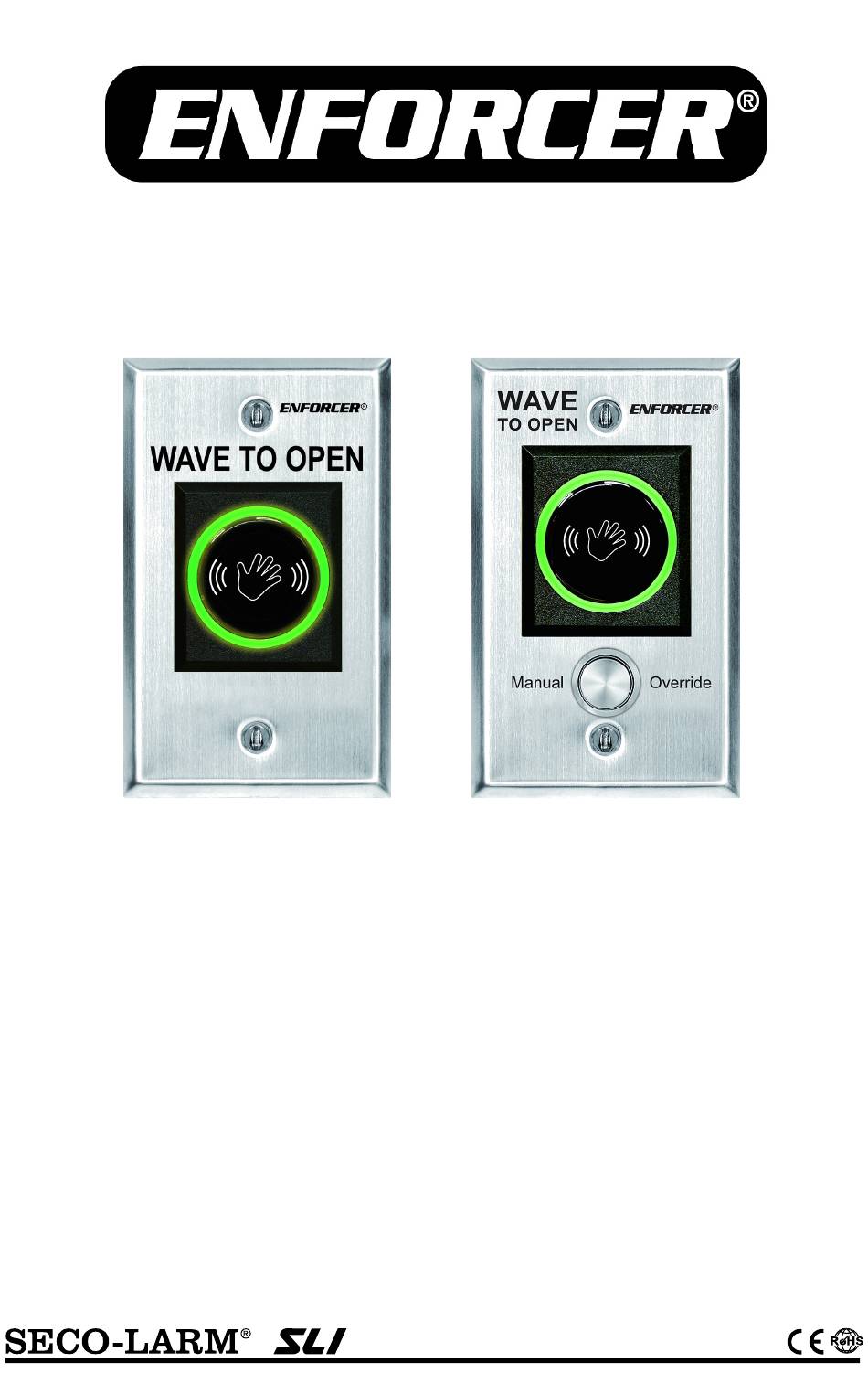

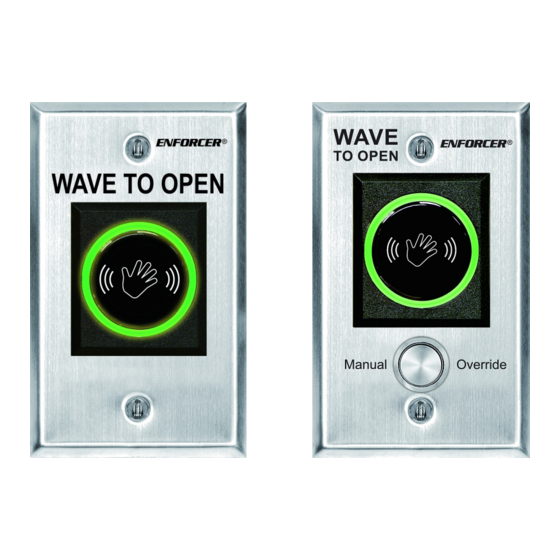

Wave-To-Open Sensors
The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected
area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is
ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools,
factories, or offices. The SD-927PKC-NEVQ adds a manual override button.
Also available with Spanish (SD-927PKC-NSQ, SD-927PKC-NSVQ) or French (SD-927PKC-NFQ,
SD-927PKC-NFVQ) faceplates.
Features:
• Dual voltage, 12~24 VAC/VDC
• Range adjustable from 2
• Stainless steel single-gang plate
• 3A relay, adjustable from 0.5~30 sec, toggle,
or as long as hand is near the sensor
• LED illuminated sensor area for easy
identification
SD-927PKC-NEQ
3
/
"-8" (6~20 cm)
8
®
Manual
• Quick connect screw-less terminal block
• Selectable LED colors (turns from red to
green or green to red) when activated
SD-927PKC-NEVQ
• Adds manual override button as a backup
to the sensor
SD-927PKC-NEVQ

Advertisement

loading
Need help?

Need help?

Do you have a question about the SD-927PKC-NEQ and is the answer not in the manual?

Questions and answers

Summary of Contents for ENFORCER SD-927PKC-NEQ

  • Page 1 SD-927PKC-NEVQ SD-927PKC-NEQ The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
  • Page 2 ENFORCER Wave-To-Open Sensors Parts List: 1x Wave-To-Open Sensor 2x Mounting screws 3x 6" (15cm) wire connectors* 1x Manual *For override button, SD-927PKC-NEVQ only Specifications: Model SD-927PKC-NEQ SD-927PKC-NEVQ Operating voltage 12~24 VAC/VDC Current draw (max.) 120mA@12VDC Relay type Form C dry contact, 3A@24VDC...
  • Page 3 ENFORCER Wave-To-Open Sensors Sample Installations: SECO-LARM Series 1. Installation with Electric Lock SECO-LARM Series Electric Strike Electromagnetic Lock (Fail Secure) (Fail Safe) WAVE TO OPEN Access Control Power Supply 12~24 VAC/VDC Power input Relay output (–) ( NO NC 2. Installation with Electromagnetic Lock and Keypad...
  • Page 4 ENFORCER Wave-To-Open Sensors Care and Cleaning for the SD-927PKC Series Wave-To-Open Sensor: The SD-927PKC Series is designed for indoor use to match most interiors. The sensor requires special care to ensure reliability and a long operating life. 1. Use a soft, clean cloth for cleaning.
