• No-touch operation reduces the risk of
spread of germs, viruses, etc., through
cross-contamination
• Triggers a warning or locking device when
the sensor is triggered
• Form C relay output (1A@30VDC)
• Adjustable output time (0.5~30 s) or toggle
• Adjustable sensor range up to 6" (15cm)
*When properly installed, see pg. 2
Infrared Proximity Sensors

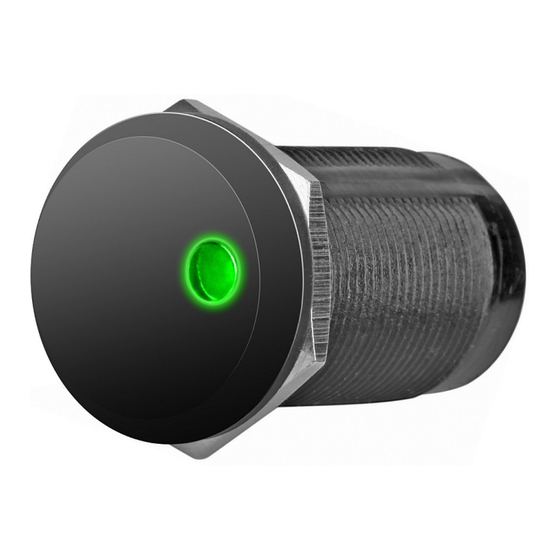

CS-PD115-PAQ shown
Size
3
ø
/
" (ø19mm)
4
3
ø
/
" (ø19mm)
4
7
ø
/
" (ø22mm)
8
1
ø1
/
" (ø38mm)
2
™
Manual
Material
Polycarbonate
Stainless steel and polycarbonate
Stainless steel and polycarbonate
Stainless steel and polycarbonate
• Selectable LED colors (turns from red to
green or green to red on activation)
• 12~24 VDC Operation
• Variety of sizes allow for a wide range of
applications
• Filters out interference from other infrared
sources
• Weatherproof front panel (IP65)*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER CS-PD115-PAQ
Summary of Contents for ENFORCER CS-PD115-PAQ

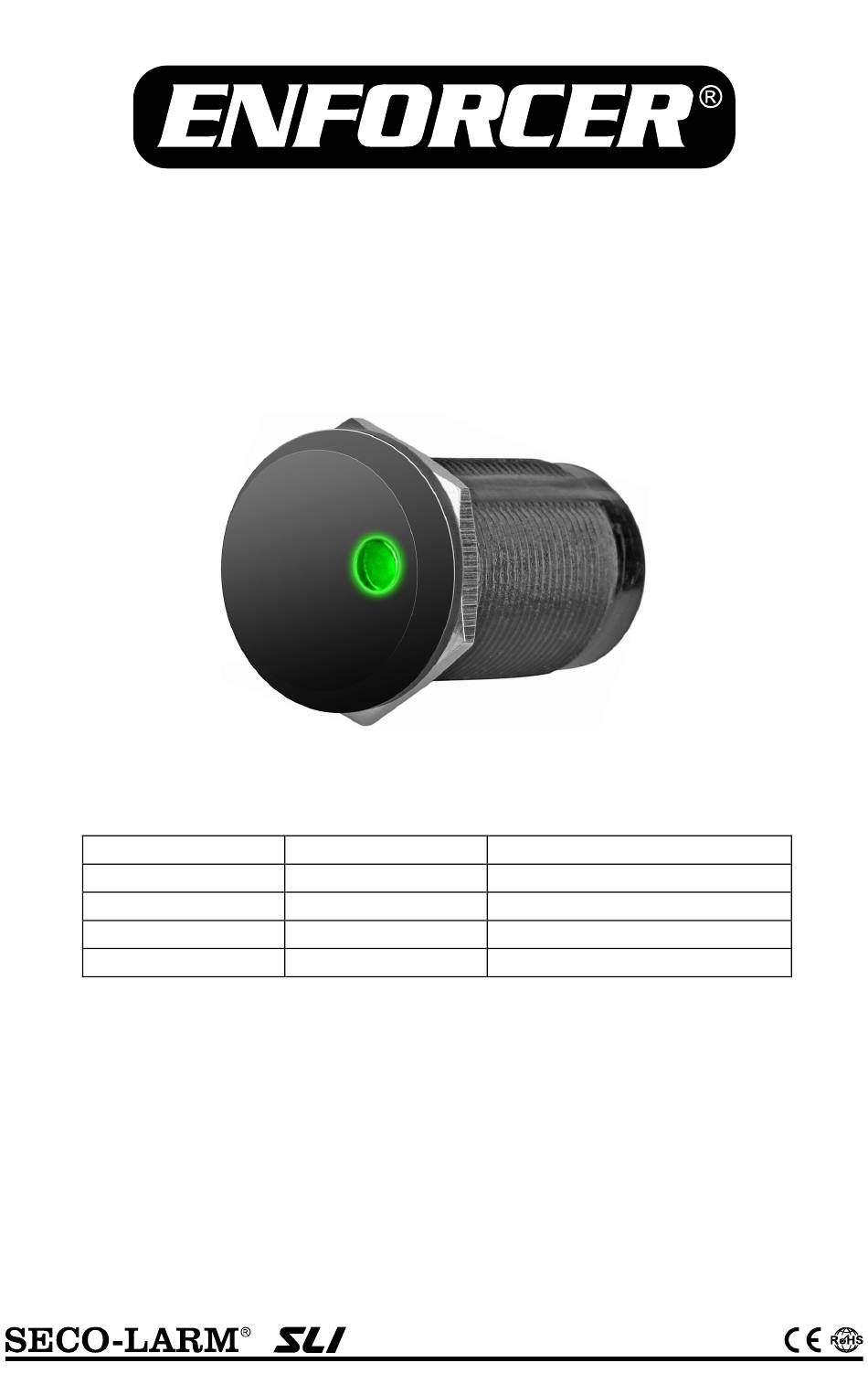

- Page 1 Infrared Proximity Sensors Manual CS-PD115-PAQ shown Model Size Material CS-PD115-PAQ ø " (ø19mm) Polycarbonate CS-PD419-PQ ø " (ø19mm) Stainless steel and polycarbonate CS-PD422-PQ ø " (ø22mm) Stainless steel and polycarbonate CS-PD438-PQ ø1 " (ø38mm) Stainless steel and polycarbonate • No-touch operation reduces the risk of •...
- Page 2 ENFORCER Infrared Proximity Sensors Introduction: ENFORCER IR Proximity Sensors are compact and can be programmed to unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor or trigger an alarm when an object (such as a valuable possession) is removed from the sensing area.
- Page 3 ENFORCER Infrared Proximity Sensors Overview: CS-PD115-PAQ CS-PD419-PQ CS-PD115-PAQ " " (31mm) (35mm) " " " " (24mm) (19mm) (23mm) (19mm) " " (34mm) (33mm) CS-PD422-PQ CS-PD438-PQ CS-PD419-PQ CS-PD422-PQ " (17mm) " CS-PD438-PQ (28mm) 1" " " " (25mm) (22mm) (41mm) (38mm) "...
- Page 4 ENFORCER Infrared Proximity Sensors Sample Applications: CS-PD115-PAQ Anti-Theft Access Control EXIT IR Proximity Sensor IR Proximity Sensor Place the sensor under or behind a valuable object. If the Mount the sensor to a wall or plate in a protected area. A user...
