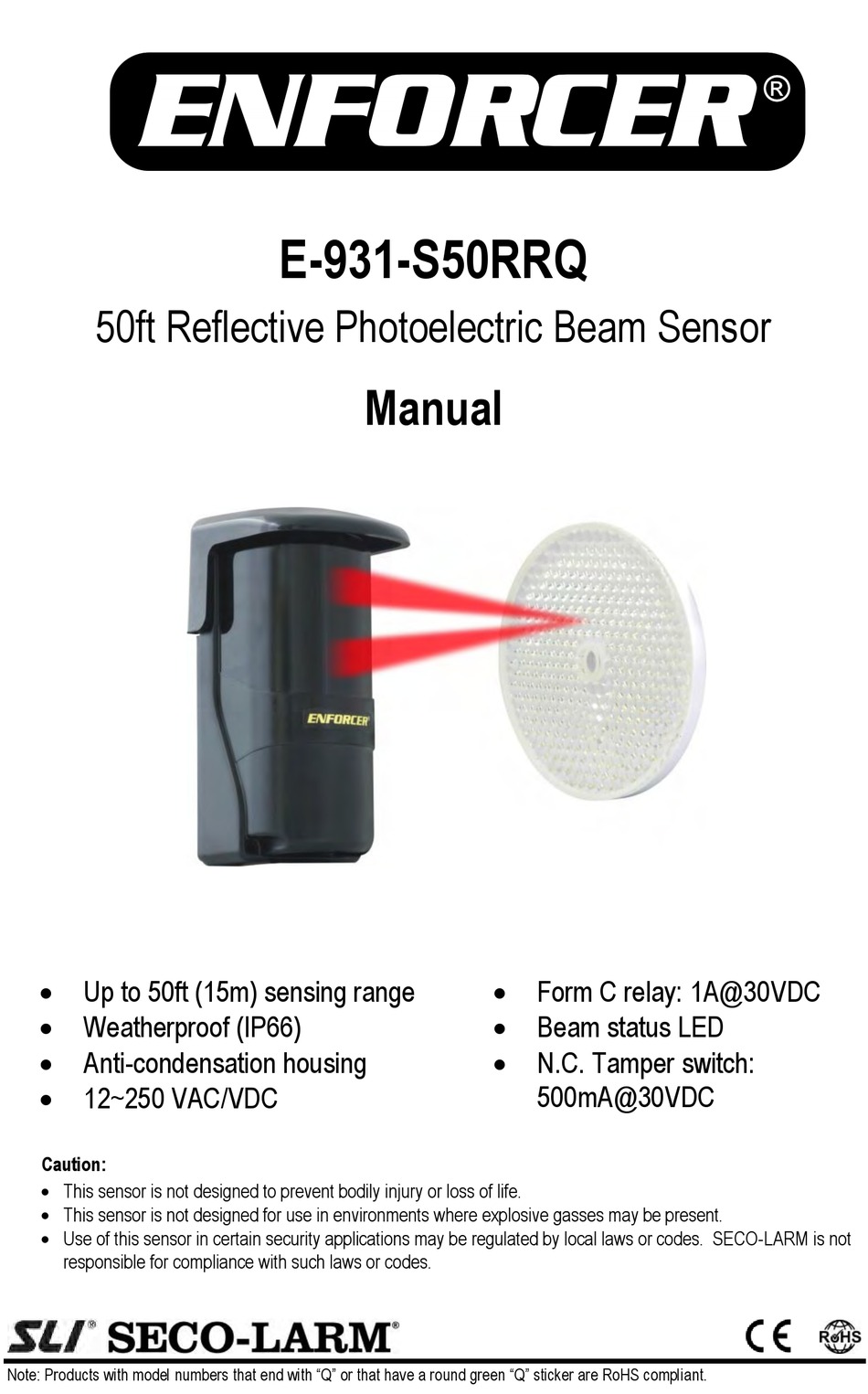

50ft Reflective Photoelectric Beam Sensor
 Up to 50ft (15m) sensing range
 Weatherproof (IP66)
 Anti-condensation housing
 12~250 VAC/VDC
Caution:
 This sensor is not designed to prevent bodily injury or loss of life.
 This sensor is not designed for use in environments where explosive gasses may be present.
 Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not
responsible for compliance with such laws or codes.
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
E-931-S50RRQ
Manual
 Form C relay: 1A@30VDC
 Beam status LED
 N.C. Tamper switch:
500mA@30VDC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-931-S50RRQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER E-931-S50RRQ

Summary of Contents for ENFORCER E-931-S50RRQ

  • Page 1 E-931-S50RRQ 50ft Reflective Photoelectric Beam Sensor Manual  Up to 50ft (15m) sensing range  Form C relay: 1A@30VDC  Weatherproof (IP66)  Beam status LED  Anti-condensation housing  N.C. Tamper switch:  12~250 VAC/VDC 500mA@30VDC Caution:  This sensor is not designed to prevent bodily injury or loss of life.

  • Page 2: Specifications

    ENFORCER 50ft Reflective Photoelectric Beam Sensor Specifications: Parts List: Model E-931-S50RRQ 1x Sensor Reflective photoelectric Type 1x Reflector beam sensor 1x Mounting bracket Sensing range 50ft (15m) Operating voltage 12~250 VAC/VDC 1x Sensor hood 12VDC Standby: 50mA; Active: 25mA 4x Cover screws Current draw (max.)
  • Page 3 ENFORCER 50ft Reflective Photoelectric Beam Sensor Mounting: 1. Unscrew the four cover screws and remove the cover. 2. Loosen the captive screw and remove the sensor from the mounting plate. 3. Using the included mounting screws, mount the mounting plate to the wall.

  • Page 4: Troubleshooting

    ENFORCER 50ft Reflective Photoelectric Beam Sensor Sample Applications: Garage Vehicle Assembly Gate Door Detection Line Optional Accessory: Other Sensors Available: Reflector Hood E-931ACC-HR Provides extra protection for the Reflective Dual and Curtain and reflector. Photobeam Quad Beam Barrier Compatible with Reflective Photoelectric Beam Sensor models E-931-S50RRQ, E-931-S35RRQ, and E-931-S33PRQ.
