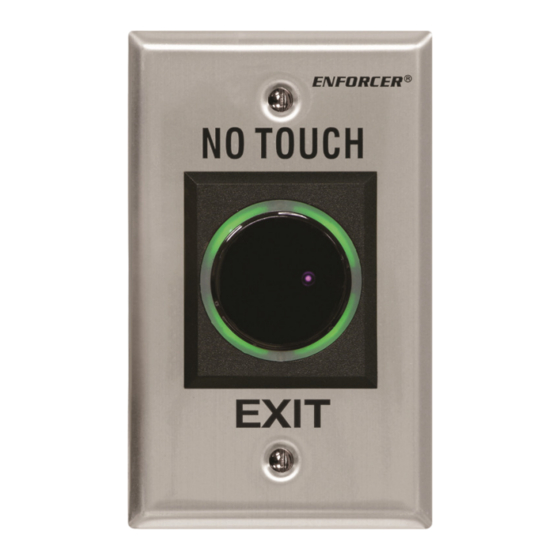

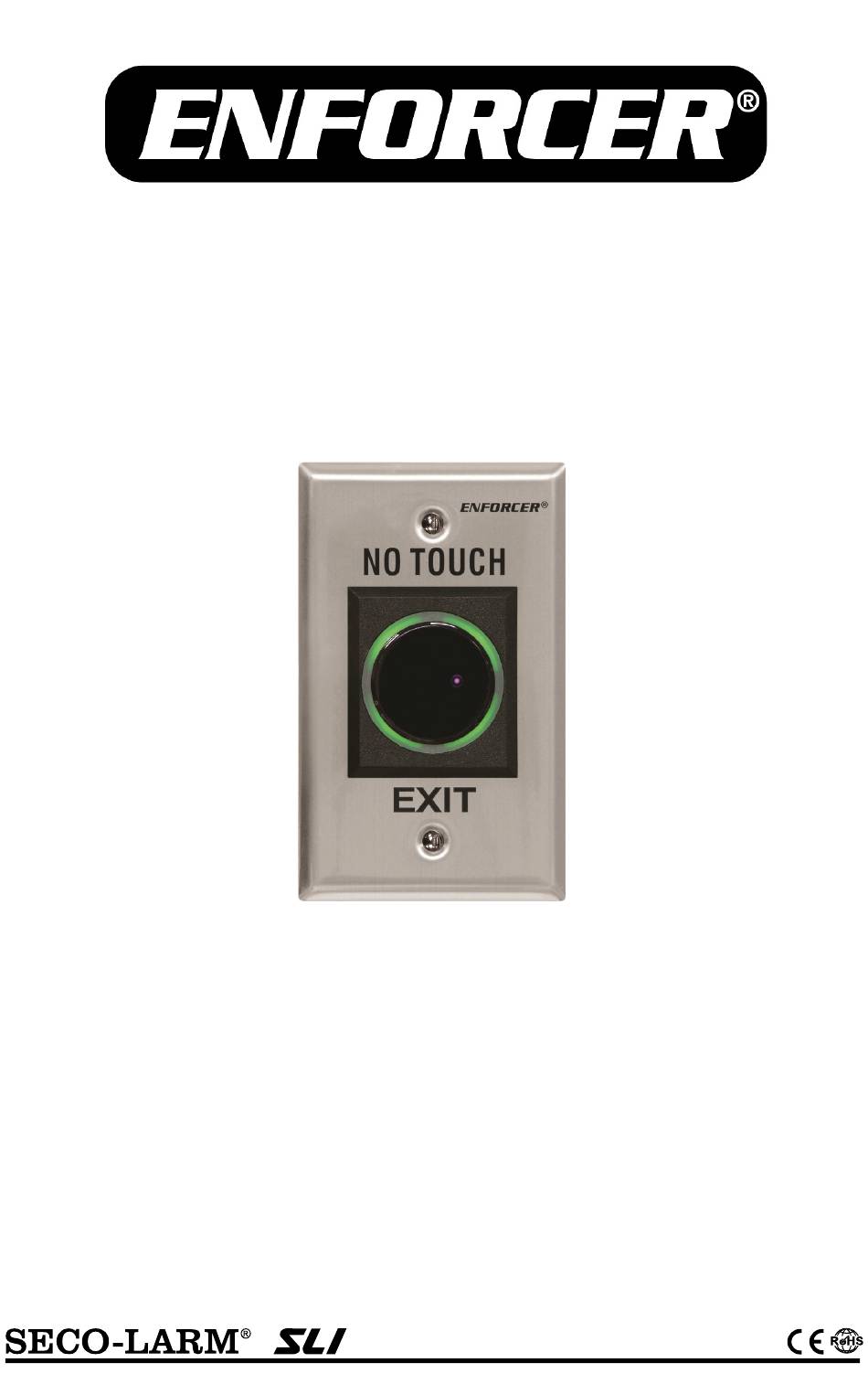

Indoor No-Touch Request-To-Exit Sensor
The ENFORCER No-Touch Request-To-Exit Sensor uses IR technology to request egress from a
protected area or activate a device with the simple wave of a hand. Since it is No-Touch, this
sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination),
schools, factories, or offices.
Also available with Spanish (SD-927PKC-NSQ) or French (SD-927PKC-NFQ) faceplates.

Features:

• Dual voltage, 12~24 VAC/VDC
• Range adjustable from 2
• Stainless steel single-gang plate
• 3A relay, adjustable from 0.5~30 sec, toggle,
or as long as hand is near the sensor
SD-927PKC-NEQ
Manual
3
/
"-8" (6~20 cm)
8
®
• Quick connect screw-less terminal block
• LED illuminated sensor area for easy
identification
• Selectable LED colors (turns from red to
green or green to red) when activated

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-927PKC-NEQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER SD-927PKC-NEQ

Summary of Contents for ENFORCER SD-927PKC-NEQ

  • Page 1 Indoor No-Touch Request-To-Exit Sensor Manual The ENFORCER No-Touch Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it is No-Touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
  • Page 2 ENFORCER Indoor No-Touch Request-To-Exit Sensor Parts List: 1x No-Touch Sensor 2x Mounting screws 1x Manual Specifications: " (29mm) Operating voltage 12~24 VAC/VDC Current draw (max.) 120mA@12VDC Relay type Form C dry contact, 3A@24VDC Response time 10ms Standby Red* LEDS Triggered Green* "...
  • Page 3 ENFORCER Indoor No-Touch Request-To-Exit Sensor Sample Installations: 1. Installation with Electromagnetic Lock (Fail-Safe) ENFORCER Series Electromagnetic Lock Access Control Power Supply 12~24 VAC/VDC Power input Relay output (–) ( NO NC 2. Installation with Electric Door Strike (Fail-Secure) ENFORCER Series...
  • Page 4 ENFORCER Indoor No-Touch Request-To-Exit Sensor Care and Cleaning for the SD-927PKC Series No-Touch: The SD-927PKC Series is designed for indoor use to match most interiors. The sensor requires special care to ensure reliability and a long operating life. 1. Use a soft, clean cloth for cleaning.
