ENFORCER 50ft Large Reflective Beam Sensor

Troubleshooting:

Sensor does not detect the object.
Alarm LED will not turn ON when the beam
is interrupted
Alarm LED turns ON when object is
detected, but there is no output
Alarm LED is continuously ON
Alarm output becomes erratic in bad
weather
Frequent false alarms from leaves, birds,
or other objects
This product is protected by the following patents: U.S. pat. no. D485774
Other international patents are pending.
WARRANTY:
This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for one (1) year from the date of sale to the original customer. SECO-LARM's obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is
not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of
SECO-LARM and the purchaser's exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM's
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
NOTICE:
The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to
change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or
in part, without the written permission of SECO-LARM.
®
SECO-LARM
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA, 92606
Phone: (949) 261-2999 | (800) 662-0800
8
• Check the sensor's alignment.
• Readjust the sensor's response time.
• Clean the sensor and reflector with a damp
(not wet) cloth.
• Adjust the reflector and/or sensor for proper
alignment.
• Check wiring between the sensor and local
alarm device.
• Check the sensor's alignment.
• Check for any objects between the sensor
and reflector that may be causing false
alarms.
• Check the sensor's alignment.
• Readjust the sensor's response time.
• Readjust the sensor's response time.
• Change the sensor's location.
Taiwan pat. no. 89463
China pat. no. ZL03311103.0
Website: www.seco-larm.com
Email: sales@seco-larm.com
MiE-931-S50RRLQ_1312.docx
SECO-LARM U.S.A., Inc.

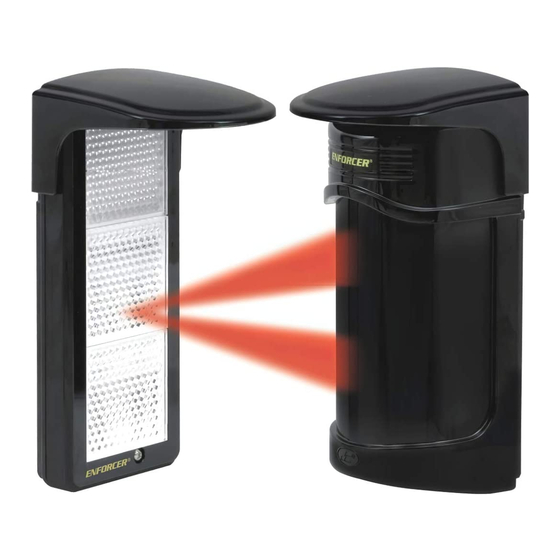

50ft Large Reflective Beam Sensor
• Up to 50ft (15m) sensing range
• Weatherproof (IP55)
• Beam status LED
PITSW3
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.
E-931-S50RRLQ
Manual
Patented
• 12~250 VAC/VDC Operation
• Form C relay rated 0.5A@120VAC
• N.C. Tamper switch rated 0.5A@30VDC
