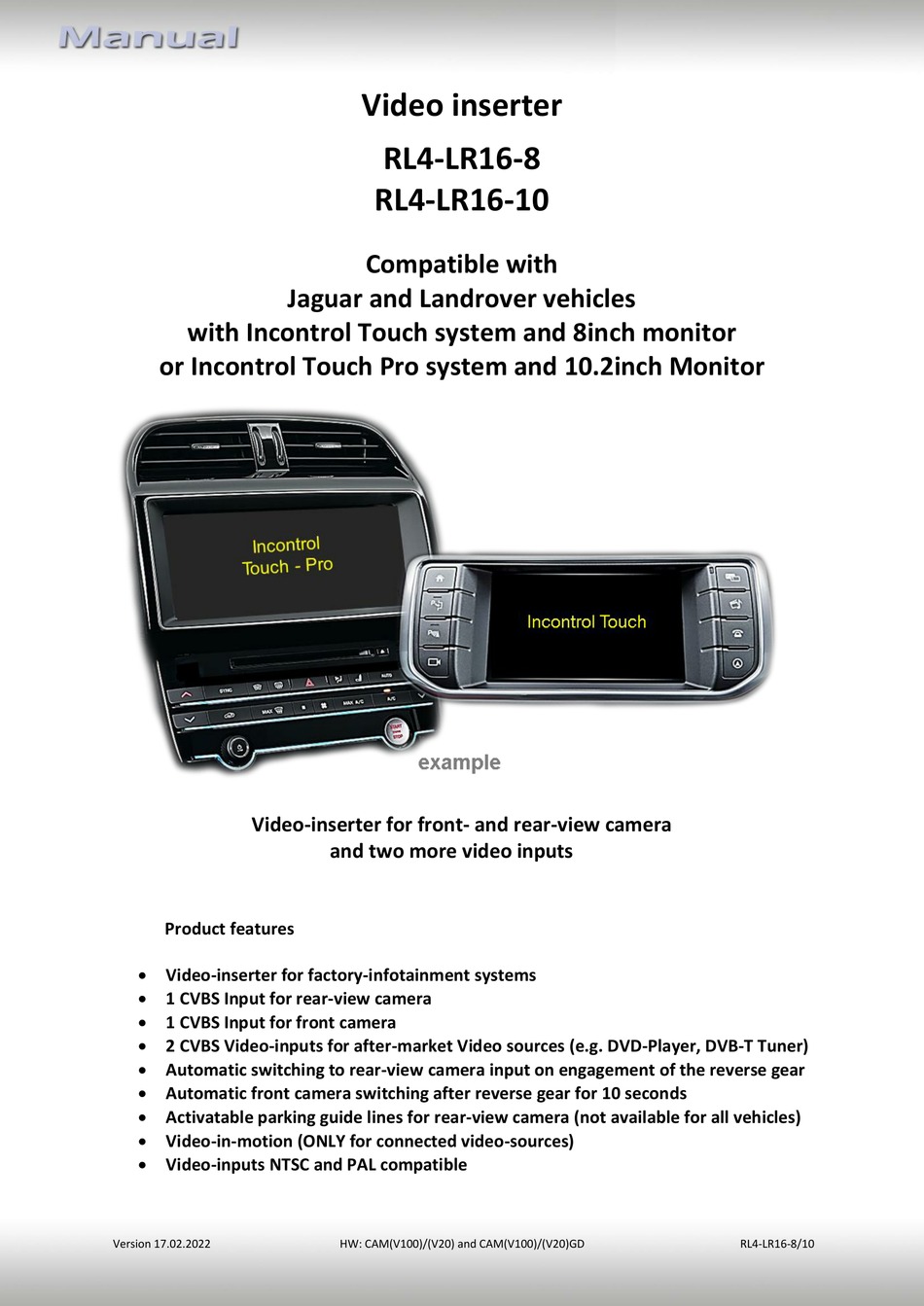

Video inserter
RL4-LR16-8
RL4-LR16-10
Compatible with
Jaguar and Landrover vehicles
with Incontrol Touch system and 8inch monitor
or Incontrol Touch Pro system and 10.2inch Monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 17.02.2022
HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD
RL4-LR16-8/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL4-LR16-8
Summary of Contents for NavLinkz RL4-LR16-8
- Page 1 Video inserter RL4-LR16-8 RL4-LR16-10 Compatible with Jaguar and Landrover vehicles with Incontrol Touch system and 8inch monitor or Incontrol Touch Pro system and 10.2inch Monitor Video-inserter for front- and rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
ICT - Pro head unit and 10.2inch monitor (RL4-LR16-10) 2.3.2. Connection - Quadlock - CAN 2.3.2.1. Incontrol Touch head unit (8 inch monitor – RL4-LR16-8) 2.3.2.2. Incontrol Touch Pro head unit (10,2 inch monitor – RL4-LR16-10) 2.4. Analog power supply for the video interface 2.5. -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
1.2. Checking the compatibility of vehicle and accessories Requirements Brand Compatible vehicles for RL4-LR16-8 Compatible systems F-Pace model years since 2016 F-Type model years since 2016 Incontrol Touch - 8 inch monitor Jaguar XE model years since 2016 Not compatible with Dual-View monitor! -
Page 5: Boxes And Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 6: Settings Of The 8 Dip Switches (Black)
Dip position down is ON and position up is OFF. Function ON (down) OFF (up) Front camera enabled* disabled RL4-LR16-8: +12V (max. 3A) when reverse gear is Power supply engaged incl. 10 seconds delay No function front camera and +12V by manual switching to... -
Page 7: Activating The Front Camera (Dip 1)
Using the 10,2inch monitor, the dip switch setting is OFF. Size of monitor Dip 8 8inch – INCONTROL TOUCH 10.2inch – INCONTROL TOUCH PRO Note: Dip 4 is out of function and has to be set to OFF! Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 8: Settings Of The 4 Dip Switches (Can Function - Red)
Behind the trim panel in the boot on the left (e.g. F-Pace 10.2 inch - not 8 inch) Under the rear centre console Under the driver seat (e.g. in the Range Rover Sport - installed low down) Under the passenger seat Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 9: Connection Schema
2.2. Connection schema Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 10: Connection - Factory Head Unit And Monitor
2.3.1. Connection - picture signal cable 2.3.1.1. INCONTROL TOUCH head unit and 8inch monitor (RL4-LR16-8) Disconnect the factory picture signal cable’s purple coloured female HSD+2 connector from the rear-side of the head unit and connect it to the waterblue coloured HSD+2 connector „TO LCD“... - Page 11 If the connection of the female HSD+2 connector of the factory picture signal cable which is coming from the monitor does not fit on the interface, the coding lugs have tob e cut off for the connection! Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10...
-
Page 12: Connection - Quadlock-Can
2.3.2. Connection - Quadlock-CAN 2.3.2.1. INCONTROL TOUCH head unit (8 inch monitor – RL4-LR16-8) Connect the female 10pin connector of the 10pin Power / CAN cable to the 10pin connector of the video interface. Remove the female Quadlock connector of the vehicle harness from the rear-side of the head-unit and connect it to the male Quadlock connector of the 10pin Power / CAN cable. -
Page 13: Incontrol Touch Pro Head Unit (10,2 Inch Monitor - Rl4-Lr16-10)
24pin connector at the rear-side of the head unit. Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, refer to chapter “Analog power supply for the video interface” Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 14: Analog Power Supply For The Video Interface
With analogue connection of the video interface (without CAN bus), the connection of the rear-view camera has also to be done manually (see point: “Case 2: Interface does not receive a reverse gear signal”). Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 15: Power Supply Output
(independent of Dip-1 switch setting). On the RL4-LR16-8, the red power supply output can only be used to power an after-market front camera for 10 seconds after the reverse gear has been disengaged. -
Page 16: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 17: Audio Insertion
Incontrol Touch Pro infotainment with 10.2 inch monitor is equipped with an external relay. 2.6.2.1. Connection - RL4-LR16-8 - Incontrol Touch with 8inch monitor The red power supply output ACC/front cam out 12V (max 3A) can be used to power a front camera. -
Page 18: Connection - Rl4-Lr16-10 Incontrol Touch Pro With 10.2Inch Monitor
Note: In addition, a manual switch-over to the front camera input is possible via keypad (short press) from any image mode. The power supply output supplies +12V then, too (if Dip 1 is set to ON and the front camera input is selected). Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 19: After-Market Rear-View Camera
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... - Page 20 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10...
-
Page 21: Connecting - Video-Interface And External Keypad
Connect the keypad’s female 4pin connector to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... - Page 22 Guide L/R (no function) UI-CNTRL (no function) - via Dip6 the guide lines were activated H-SIZE horizontal picture size V-SIZE vertical picture size Illustration exemplary Note: To adjust the reverse picture, engage the reverse gear. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10...
-
Page 23: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 24: By Keypad
Stand-by power drain 11mA Power 230mA @12V Video input 0.7V - 1V Video input formats NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 117 x 26 x 103 mm (W x H x D) Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 25: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10... -
Page 26: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
