Mazda Fahrzeuge with MZD Connect Infotainment
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Version 29.01.2021
r.LiNK Video-inserter
RL4-MZD88
Compatible with
and 8.8inch ultrawide monitor
and two additional video sources
HW: CAM(V100)/(V21)
RL4-MZD88
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL4-MZD88
Summary of Contents for NavLinkz RL4-MZD88

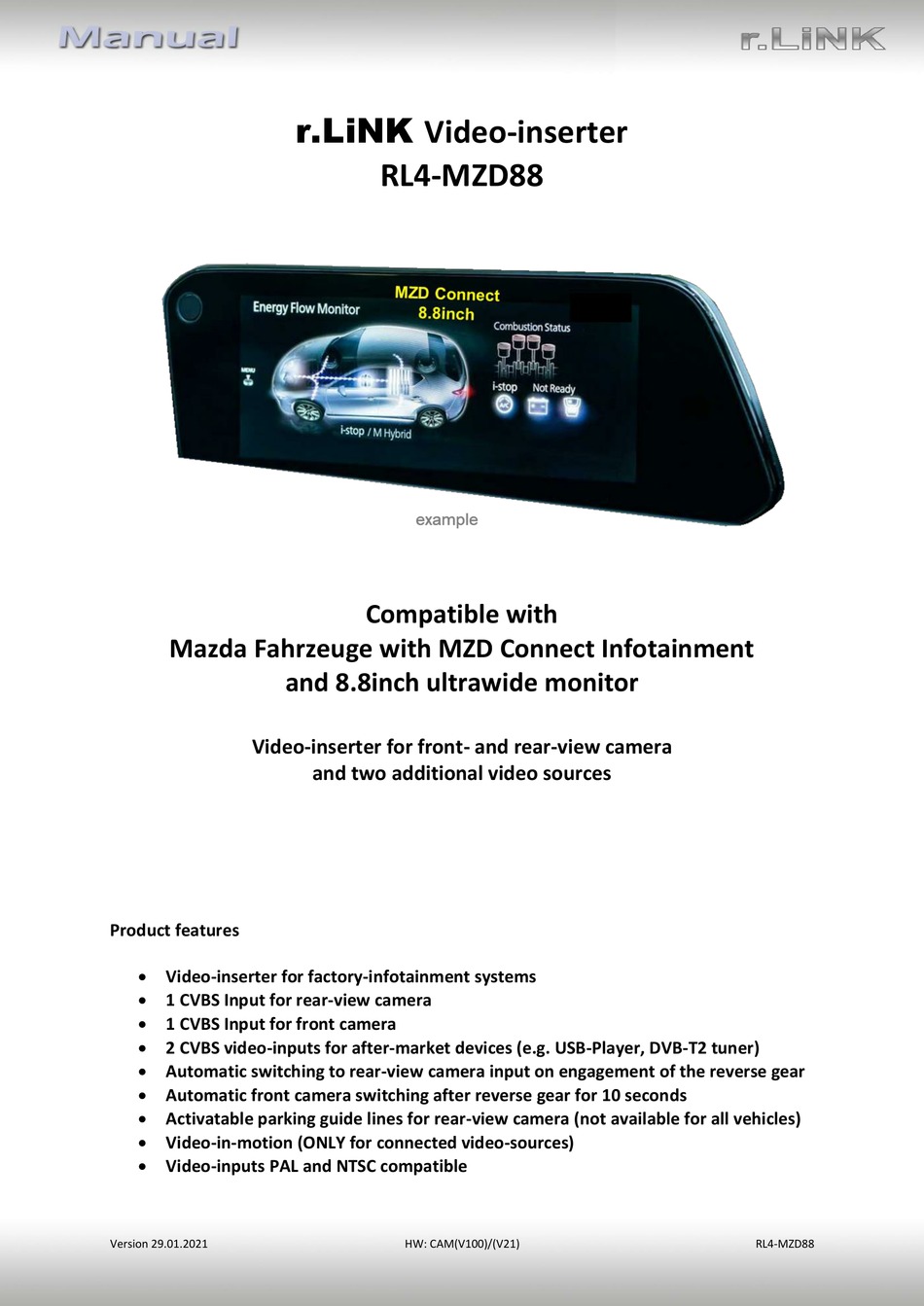

- Page 1 Video-inserter RL4-MZD88 Compatible with Mazda Fahrzeuge with MZD Connect Infotainment and 8.8inch ultrawide monitor Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 1: Video-interface receives the reverse gear signal 2.8.3.2. Case 2: Video interface does not receive the reverse gear signal 2.9. Connection video-interface – keypad 3. Interface operation 4. Picture settings 5. Specifications 6. FAQ – Trouble shooting 7. Technical support Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Guidelines Displayed guidelines are not available in all vehicles. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 5: Connectors - Video Interface
The camera power supply +12V will automatically be provided by the green wire "Reverse-Out" when the reverse gear is engaged, plus 10 seconds delay for the front camera, and also +12V when the front camera is manually selected by external keypad (see chapter "Power Supply Output"). Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 6: Activating The Front Camera Input (Dip 1)
Dip 1 Dip 2 Dip 3 Dip 4 All vehicles For all vehicles, use the OFF position of all the 4 dip switches. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 7: Installation
2.1.1. Place of installation – video-interface The video-interface has to be installed on the backside of the head-unit. 2.1.2. Place of installation - daugter PCB The daughter PCB has to be installed inside the monitor housing. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 8: Connection Schema
2.2. Connection schema Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... - Page 9 2.3. Connections and installation – daughter PCB Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88...
-
Page 10: Warning Notes Concerning The Installation Of Ribbon Cables
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. 3) Avoid cable contusion or cable injury caused by sharp-edged metal. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 11: Connection- Picture Signal Cable
2.4. Connection – picture signal cable Connect the picture signal cable’s beige coloured female 20pin connector which is lead out from the head unit, to the male 20pin connector of the video-interface. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... - Page 12 10pin Power / CAN cable’s male 52pin connector. Connect the 10pin Power / CAN cable’s female 52pin connector to the male 52pin connector of the head-unit. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88...
-
Page 13: 12Pin Interface Cable
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 14: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... - Page 15 Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88...
-
Page 16: Audio-Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 17: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire of the 20pin cable to avoid an unnecessary permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to stay connected. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... - Page 18 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88...
- Page 19 Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88...
-
Page 20: Interface Operation
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces switches from the factory video to the front camera input and back to factory video. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 21: Picture Settings
Video input 0.7V – 1V Video input formats PAL/NTSC Temperature range -40°C to +85°C Dimensions Video-Box 117 x 26 x 90 mm (W x H x D) Dimensions daughter PCB 115 x 7 x 56 mm Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 22: Faq - Trouble Shooting
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 29.01.2021 HW: CAM(V100)/(V21) RL4-MZD88... -
Page 23: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
