r.LiNK Video-inserter
RL4-UCON8-LV
Compatible with
Maserati vehicles with Uconnect VP4-NA
and 8.4 inch monitor
Video-inserter for front- and rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Version 23.11.2020
HW: CAM(V98/(V12)
RL4-UCON8-LV
Advertisement
Table of Contents
Related Manuals for NavLinkz RL4-UCON8-LV
Summary of Contents for NavLinkz RL4-UCON8-LV

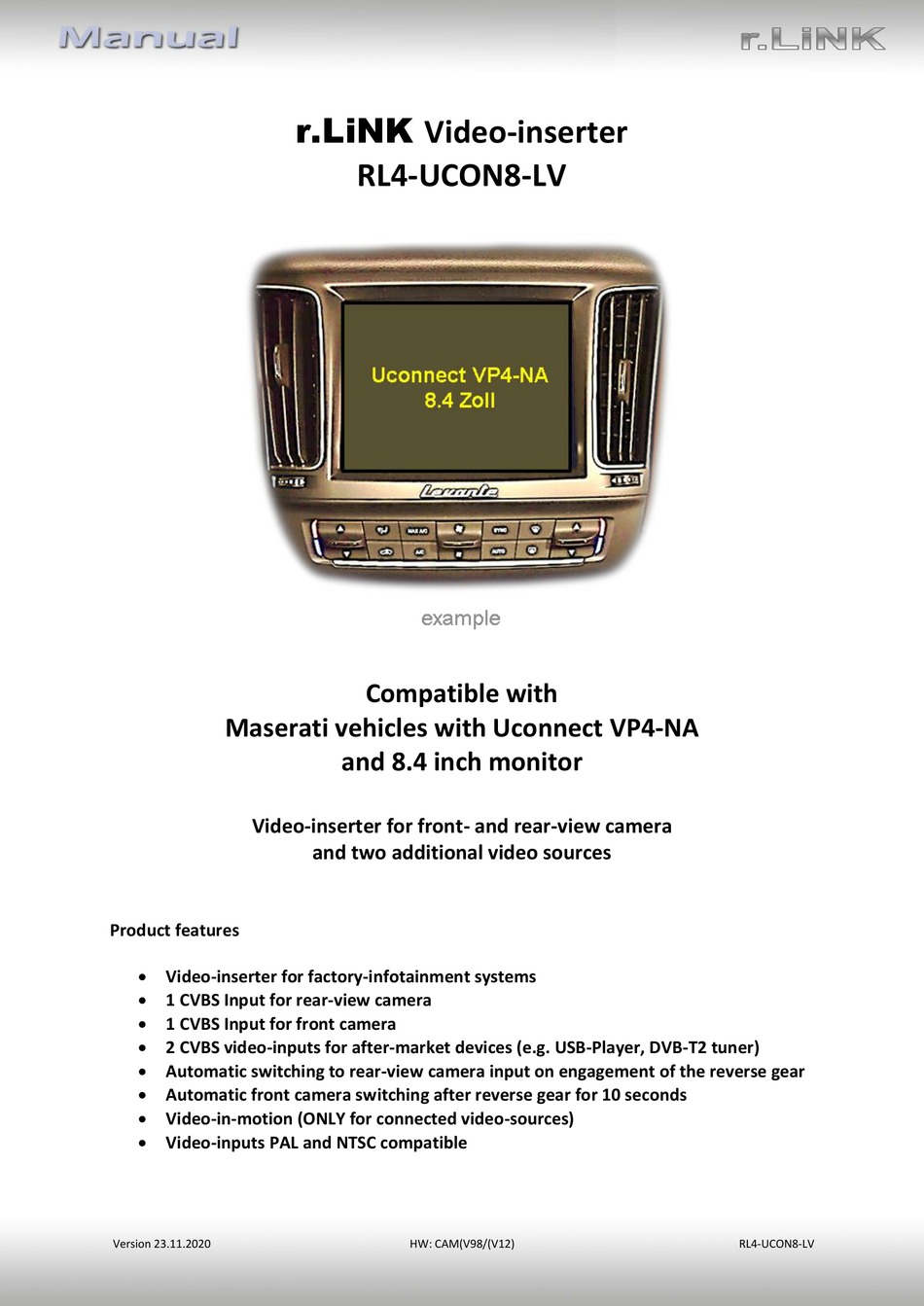

- Page 1 Video-inserter RL4-UCON8-LV Compatible with Maserati vehicles with Uconnect VP4-NA and 8.4 inch monitor Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera 1 CVBS Input for front camera ...
-
Page 2: Table Of Contents
Case 1: Video-interface receives the reverse gear signal 2.7.3.2. Case 2: Video interface does not receive the reverse gear signal 2.8. Connection video-interface – keypad 3. Interface operation 4. Picture settings 5. Specifications 6. FAQ – Trouble shooting 7. Technical support Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 5: Connectors - Video Interface
Try all possible combinations of dip 7 and 8 to find the Monitor selection best picture (quality and size) See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 6: Activating The Front Camera Input (Dip 1)
Dip 1 Dip 2 Dip 3 Dip 4 All vehicles For all vehicles, use the OFF position of all the 4 dip switches. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 7: Installation
2.1.1. Place of installation – video-interface The video-interface has to be installed on the backside of the head-unit. 2.1.2. Place of installation - daugter PCB The daughter PCB has to be installed inside the head unit. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 8: Connection Schema
2.2. Connection schema Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... - Page 9 2.3. Connections and installation – daughter PCB Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV...
-
Page 10: Warning Notes Concerning The Installation Of Ribbon Cables
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. 3) Avoid cable contusion or cable injury caused by sharp-edged metal. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 11: Connection Head Unit - Picture Signal Cable
2.4. Connection to head unit – picture signal cable Connect the picture signal cable’s beige coloured female 20pin connector which is lead out from the head unit, to the male 20pin connector of the video-interface. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 12: Connection Head-Unit - Power / Can
10pin Power / CAN cable’s male 52pin connector. Connect the 10pin Power / CAN cable’s female 52pin connector to the male 52pin connector of the head-unit. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 13: 12Pin Interface Cable
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 14: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... - Page 15 Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV...
-
Page 16: Audio-Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 17: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire of the 20pin cable to avoid an unnecessary permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to stay connected. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... - Page 18 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV...
- Page 19 Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV...
-
Page 20: Interface Operation
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces switches from the factory video to the front camera input and back to factory video. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 21: Picture Settings
0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions Video-Box 115 x 25 x 89 mm (W x H x D) Dimensions daughter PCB 110 x 7 x 92 mm (W x H x D) Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 22: Faq - Trouble Shooting
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 23.11.2020 HW: CAM(V98/(V12) RL4-UCON8-LV... -
Page 23: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
