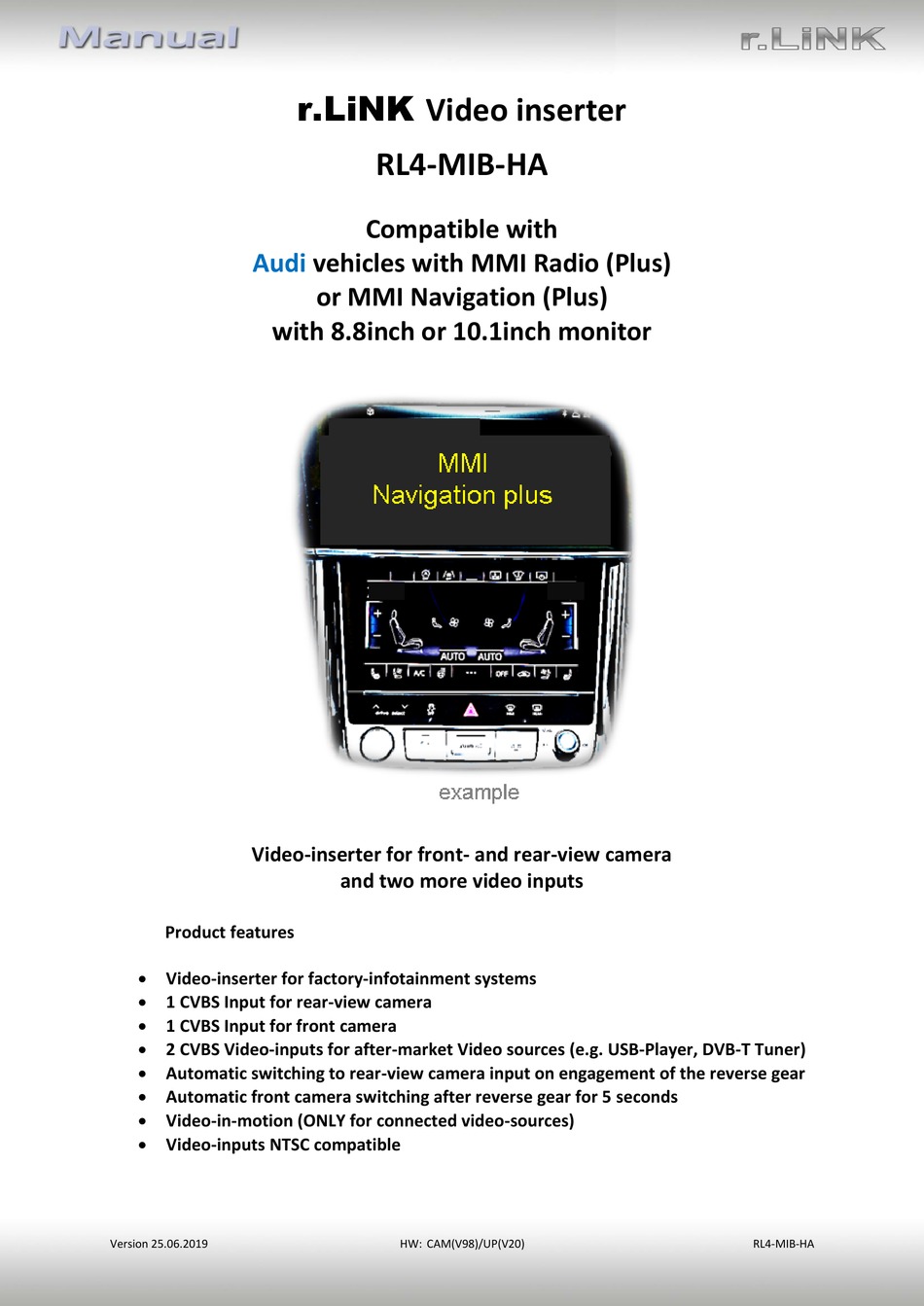

r.LiNK Video inserter
RL4-MIB-HA
Compatible with
Audi
vehicles with MMI Radio (Plus)
or MMI Navigation (Plus)
with 8.8inch or 10.1inch monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 5 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 25.06.2019
HW: CAM(V98)/UP(V20)
RL4-MIB-HA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL4-MIB-HA
Summary of Contents for NavLinkz RL4-MIB-HA
- Page 1 Video inserter RL4-MIB-HA Compatible with Audi vehicles with MMI Radio (Plus) or MMI Navigation (Plus) with 8.8inch or 10.1inch monitor Video-inserter for front- and rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.6. Connection - video-interface and external keypad 2.7. Picture settings 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 5: Settings - 8 Dip Switches (Black)
8, we recommend to try each other possible dip switch combination. After each Dip-switch-change a power-reset of the Can-box has to be performed! *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. See the following chapters for detailed information. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 6: Activating The Front Camera (Dip 1)
Empirical value: Size of monitor Dip 6 Dip7 Dip 8 8.8inch und 10.1inch Monitor with Harman HU 8.8inch Monitor without Harman HU 10.1inch Monitor without Harman HU Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 7: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 8: Connection Schema
2.2. Connection schema Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 9: Connection - Factory Head Unit
The connection of the picture signal cable varies, depending on the factory –installed head unit. Variant A: Connection to infotainment with Harman head unit Variant B: Connection to infotainments with other head units,except Harman 2.3.1.1. Connection – picture signal cable to Harman head unit Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... - Page 10 Save the insert-socket connection by clipping in the purple coloured locking clip. Connect the completely locked female waterblue HSD connector to the previously become free male waterblue coloured HSD connector of the video interface. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA...
-
Page 11: Connection - Picture Signal Cable To Other Head Units Except Harman
2.3.1.2. Connection – picture signal cable to other head units, except Harman Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... - Page 12 Save the insert-socket connection by clipping in the purple coloured locking clip. Connect the completely locked female waterblue HSD connector to the previously become free male waterblue coloured HSD connector of the video interface. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA...
-
Page 13: Connection - Quadlock - Can
Clip in the grey coloured female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector. After that, finish the Quadlock reconnection at the rear-side of the head-unit. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 14: Connection - Power
Connect the single black wire of the 10pin power/CAN cable to the vehicle’s negative ground. Note: If, after connecting the 10pin Power / CAN cable, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface”. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 15: Analog Power Supply
If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, the purple coloured wire Manual ACC of the 12pin interface cable has to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 16: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 17: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 18: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 19: After-Market Rear-View Camera
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 20: Case 2Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 21: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 22: Picture Settings
The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 Guide L/R – no function UI-CNTRL (guide lines ON/OFF) – no function Size H/V (picture size horizontal/vertical) Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 23: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 24: By Keypad
7V - 25V Stand-by power drain Power 320mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 119 x 25 x 103 mm (W x H x D) Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 25: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 25.06.2019 HW: CAM(V98)/UP(V20) RL4-MIB-HA... -
Page 26: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
