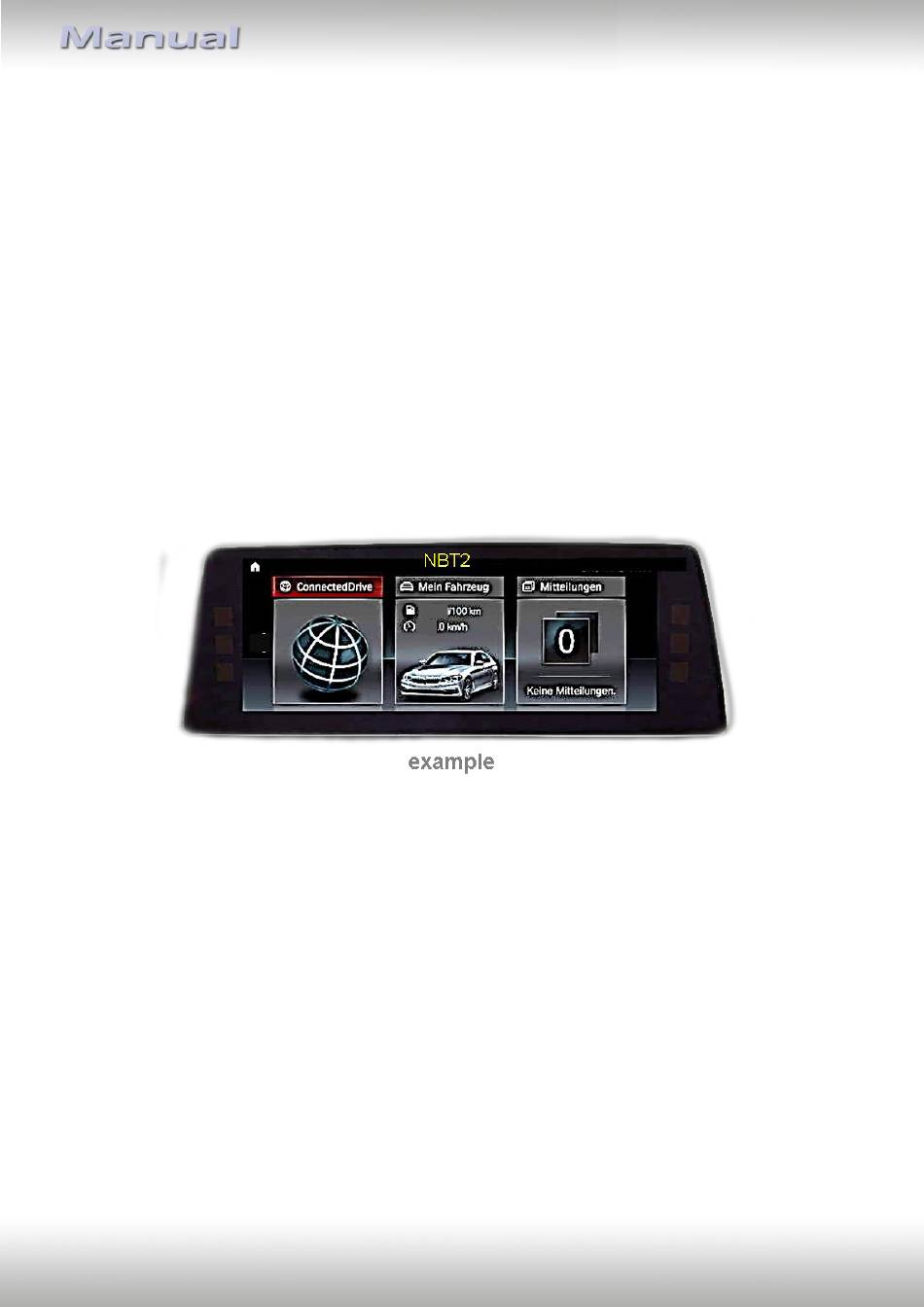

with CHAMP2, NBT or NBT2 and 6.5, 7, 8.8 or 10.25inch monitor and HSD+2
with CHAMP2, NBT or NBT2 and 6.5 or 8.8inch monitor and HSD+2 video
Video-inserter with rear-view camera input,
front camera input and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
CVBS video-input for one rear-view camera
CVBS video-input for one front camera
2 CVBS video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after disengaging reverse gear for 10 seconds
Activatable parking guide-lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 12.08.2024
Video inserter
RL4-NBT2
Compatible with
BMW
vehicles F-and G-series
video connector
Mini
vehicles
connector
HW: CAM V100/V44.3
RL4-NBT2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL4-NBT2
Summary of Contents for NavLinkz RL4-NBT2
- Page 1 Video inserter RL4-NBT2 Compatible with vehicles F-and G-series with CHAMP2, NBT or NBT2 and 6.5, 7, 8.8 or 10.25inch monitor and HSD+2 video connector Mini vehicles with CHAMP2, NBT or NBT2 and 6.5 or 8.8inch monitor and HSD+2 video connector...
- Page 2 2.6. Connection - video-interface and external keypad 2.7. Picture settings and guide-lines 3. Interface operation 3.1. By keypad 3.2. By factory infotainment buttons 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...

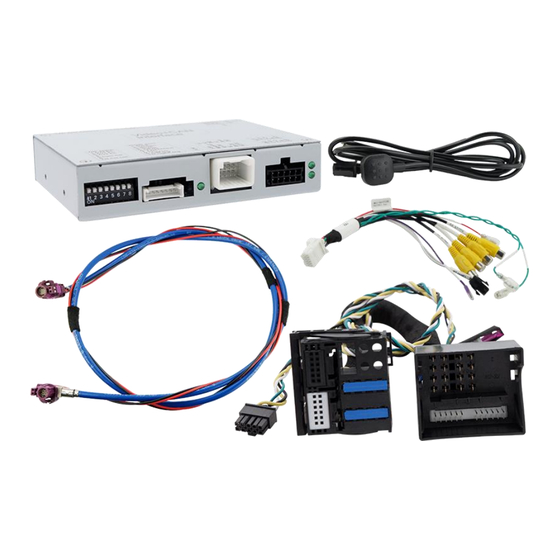

- Page 3 Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents 'ahmad@fosp.cn' Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 4 Displayed dynamic guide-lines on after-market rear-view camera picture are not available in all vehicles. PDC display Optical display of PDC in combination with after-market rear-view camera does not work in all vehicles. Video-input signal NTSC video sources compatible only. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 5 Try all possible combinations of Dips 7 and 8 to receive Monitor the best picture (quality and size) adjustments See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 6 Dip7 and 8 change the monitor-specific video settings. Try all possible combinations of Dips 7 and 8 to receive the best picture (quality and size) After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 7 The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. In most vehicles, the centre console must be removed for this purpose. The connection is made to both, the head unit and the monitor. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 8 2.2. Connection schema Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 9 However, mixing up/interchanging the connections of „HU IN“ and „TO LCD“ will cause disfunction or even damage to the system! Note: Colours of HSD+2 connectors at monitor and head unit may vary. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 10 Quadlock connector of Quadlock harness at the same position. Connect female Quadlock connector of 10pin PNP Power / CAN cable to male Quadlock connector at rear-side of head unit. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 11 Note: With analogue connection of the video interface (without CAN bus), the connection of the rear-view camera must also be made manually. (see point 2.5.2.2.: Case 2: Interface does not receive a reverse gear signal). Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 12 +12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay* after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 13 Connect the video RCA of the front camera to the 12pin interface cable’s female RCA connector “V3 Front”. Connect the video RCA of the video source 1 and 2 to the female RCA connector “V1 Left” ”V2 Right” of the 12pin interface cable. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 14 “V4 Reverse” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 15 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 16 The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 17 Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 18 If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 19 Front and next short press switches back to the previous video mode. Note: We recommend to install the external keypad for possible support reasons even if not required for customer needs. Make sure the external keypad is not installed “pressed” then. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 20 7V - 16V Stand-by power drain Power 260mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 112 x 22 x 115 mm (W x H x D) Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 21 Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 12.08.2024 HW: CAM V100/V44.3 RL4-NBT2...
- Page 22 6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
