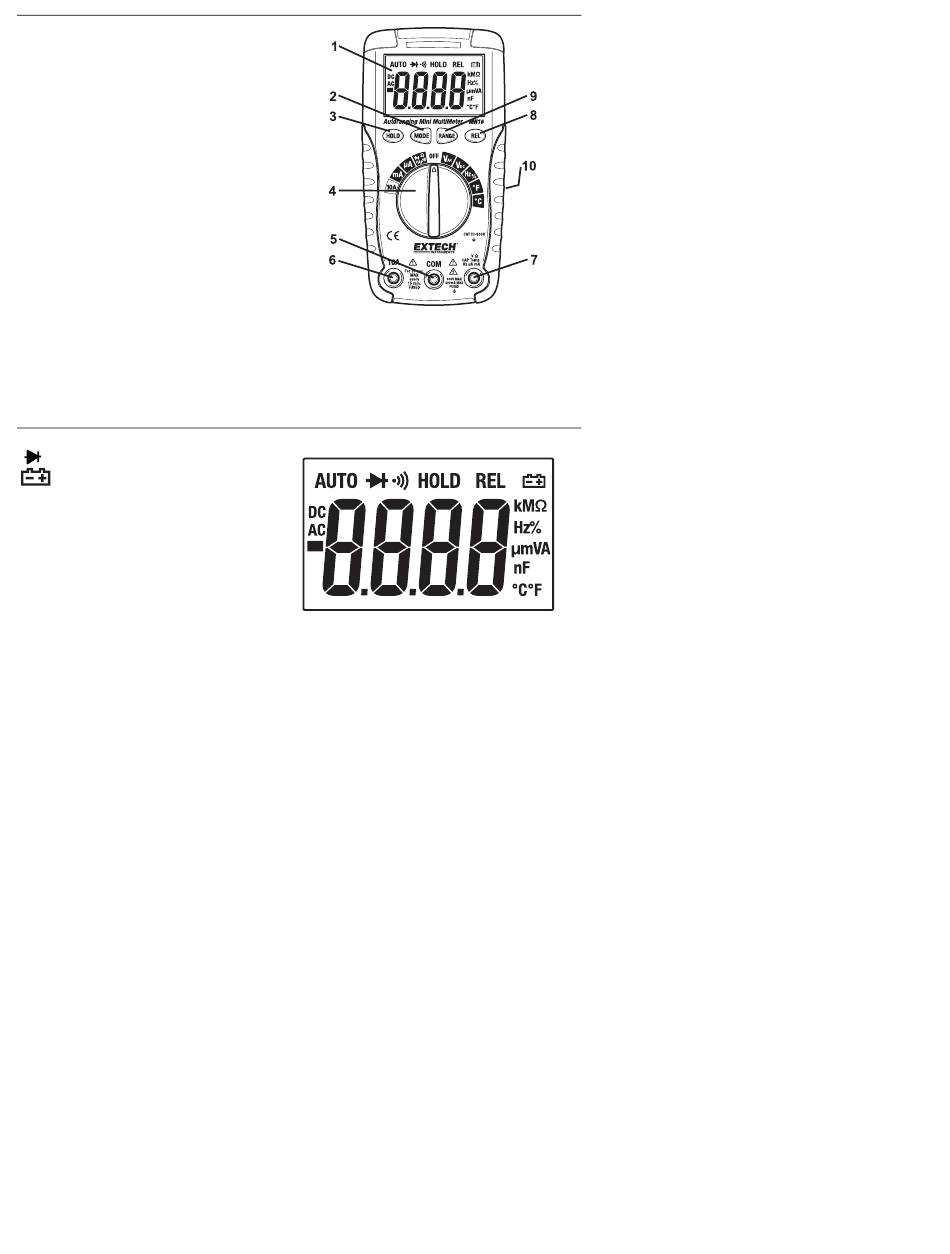

Controls and Jacks

1. 4,000 count LCD display
2. MODE button
3. HOLD button
4. Function switch
5. COM input jack
6. 10A input jack
7. V, Ω, CAP, Temp, Hz, μA and mA input jack
8. REL button
9. RANGE button
10. Battery compartment (rear)

Symbols and Annunciators

•))) Continuity
Diode test
Low Battery
-9
n nano (10 ) (capacitance)
-6
µ micro (10 ) (amps)
-3
m milli (10 ) (volts, amps)
A Amps
3
k kilo (10 ) (ohms)
F Farads (capacitance)
6
M mega (10 ) (ohms)
Ω
Ohms
Hz Hertz (frequency)
% Percent (duty ratio)
AC Alternating current
DC Direct current
ºF Degrees Fahrenheit
V Volts
REL Relative
AUTO Autoranging
HOLD Display hold
ºC Degrees Centigrade
