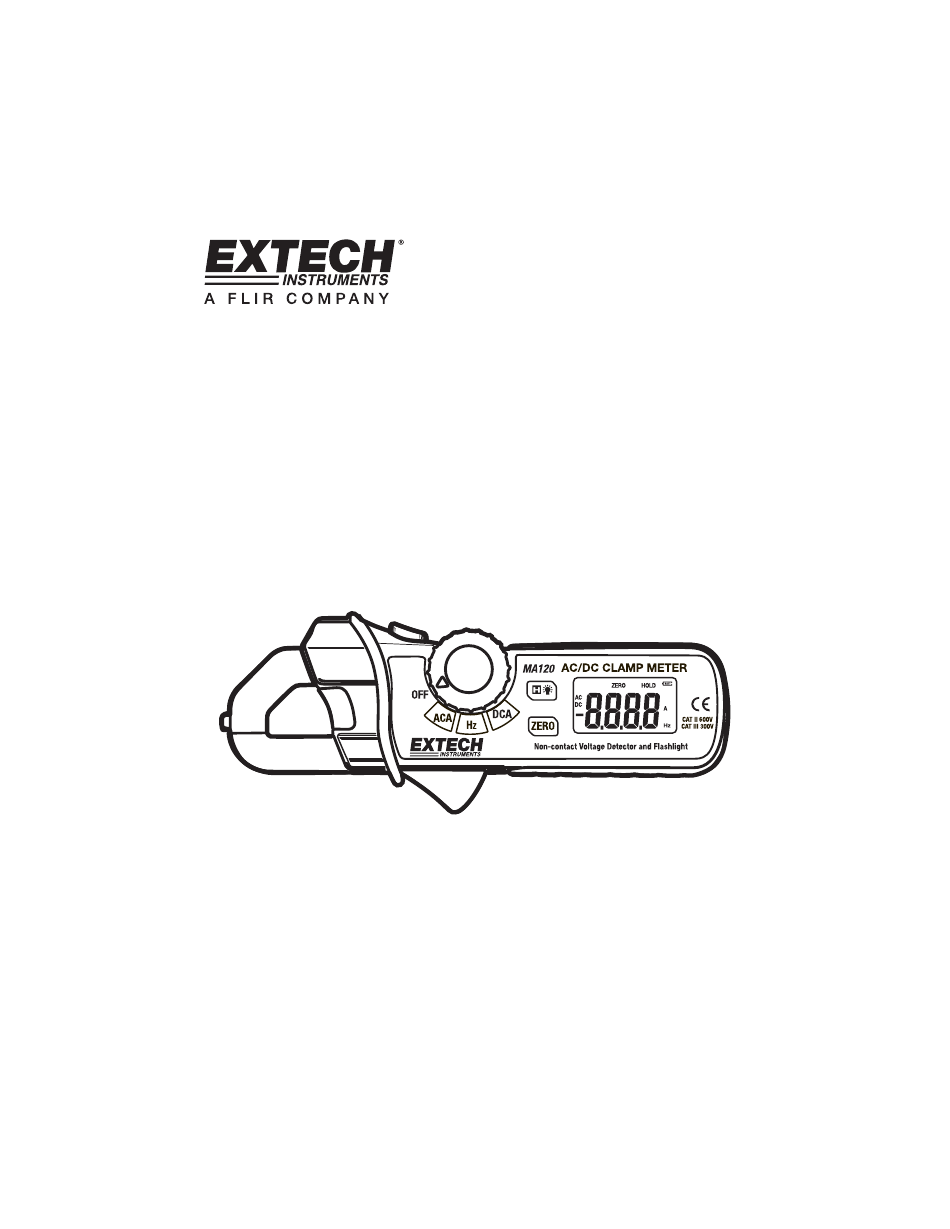

- Page 1 User’s Guide Model MA120 200A AC/DC Mini Clamp-on Meter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Introduction Congratulations on your purchase of Extech’s MA120 AC/DC Mini Clamp Meter. This professional meter, with proper care, will provide years of safe reliable service. Meter Description 1. Current sense jaw 5. Data HOLD and Backlight key 2. Non-contact AC voltage indicator light 6.
- Page 3 Operation AC Current Measurements 1) Set the Function switch to the ACA range. 2) Press the jaw trigger and clamp around, fully enclosing a single conductor. Do not allow a gap between the two halves of the jaw. Refer to the diagram at right for the correct way to enclose a single conductor.
- Page 4 Specifications General Specifications Display 3-2/3 (2400 count) Digit LCD with white LED backlight Polarity Minus sign ( - ) indicates negative polarity Current sensor Hall effect sensor type Overload indication “OL” displayed on the LCD DCA zero adjust One touch zero key Display rate 2 readings/second, nominal Battery...
