Summary of Contents for FLIR Extech Instruments MN16

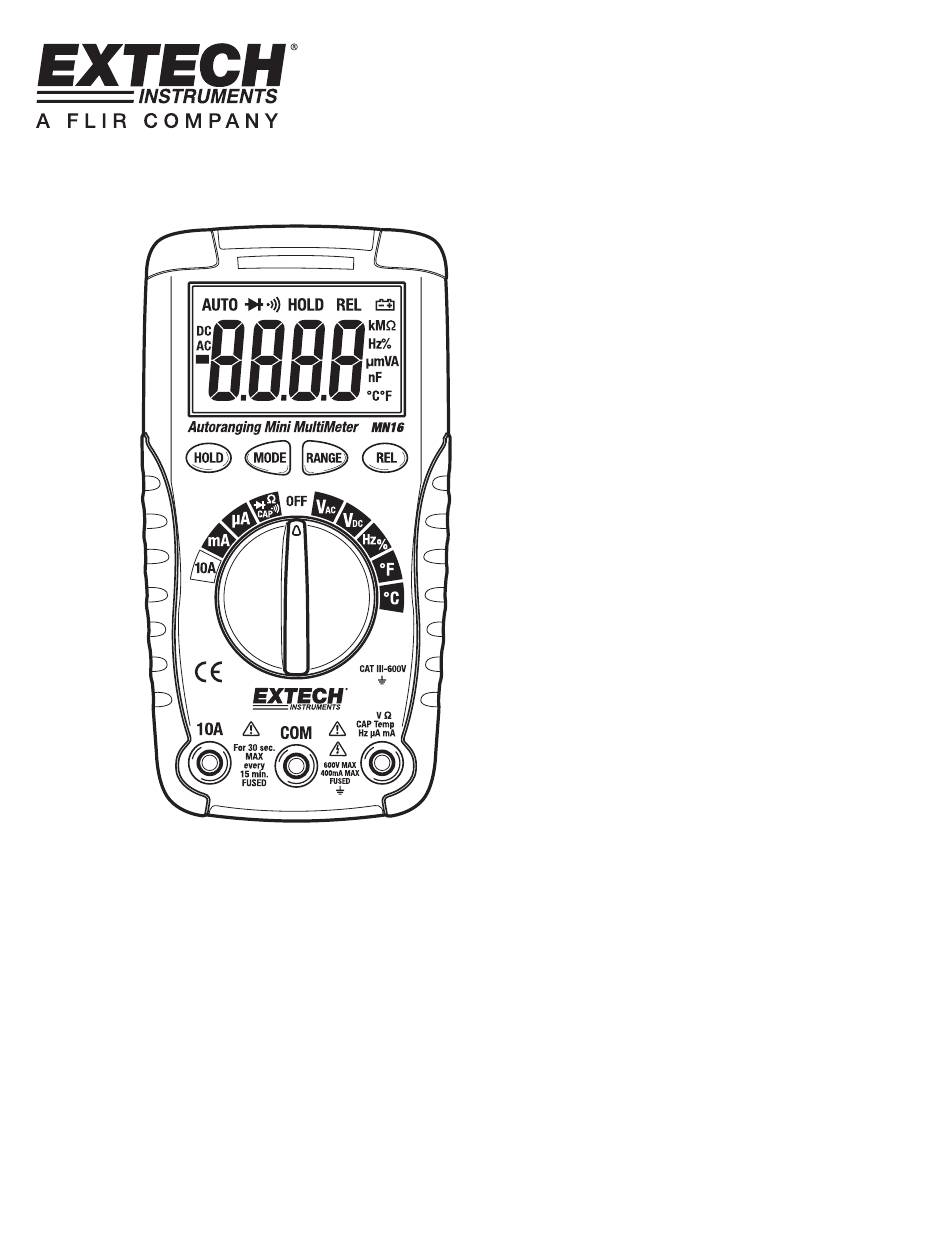

- Page 1 User's Guide Autoranging Mini Multimeter Model MN16...
- Page 2 Introduction Congratulations on your purchase of the Extech MN16 Autoranging Multimeter. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, and Continuity plus Thermocouple Temperature. It features a rugged design for heavy duty use This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 CAUTIONS • Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter. • Always remove the test leads before replacing the battery or fuses. • Inspect the condition of the test leads and the meter itself for any damage before operating the meter.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS This meter has been designed for safe use, but must be operated with caution. The rules listed below must be carefully followed for safe operation. NEVER apply voltage or current to the meter that exceeds the specified maximum: Input Protection Limits Function Maximum Input... -
Page 5: Controls And Jacks

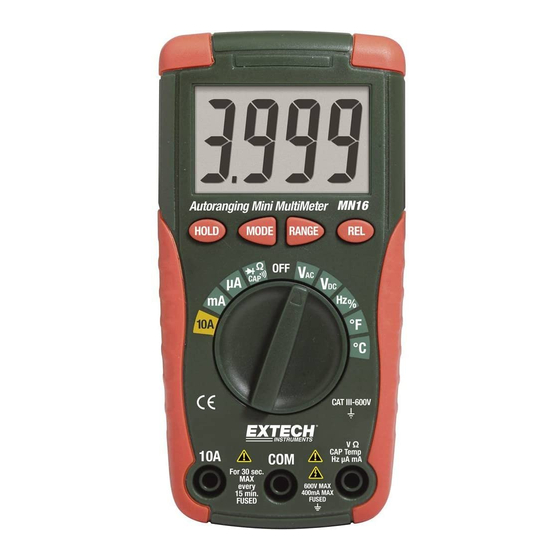

Controls and Jacks 1. 4,000 count LCD display 2. MODE button 3. HOLD button 4. Function switch 5. COM input jack 6. 10A input jack 7. V, Ω, CAP, Temp, Hz, μA and mA input jack 8. REL button 9. RANGE button 10. -
Page 6: Dc Voltage Measurements
Operating Instructions WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and should be measured with great care. ALWAYS turn the function switch to the OFF position when the meter is not in use. If “OL” appears in the display during a measurement, the value exceeds the range you have selected. -
Page 7: Dc Current Measurements
DC CURRENT MEASUREMENTS CAUTION: Do not make 20A current measurements for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads. Insert the black test lead banana plug into the negative COM jack. For current measurements up to 4000µA DC;... -
Page 8: Resistance Measurements
RESISTANCE MEASUREMENTS WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. Remove the batteries and unplug the line cords. Set the function switch to the Ω position. Insert the black test lead banana plug into the negative COM jack. Insert the red test lead banana plug into the positive Ω... -
Page 9: Temperature Measurements
TEMPERATURE MEASUREMENTS Set the function switch to the ºF or ºC position. Insert the Temperature Probe into the input jacks, making sure to observe the correct polarity. Touch the Temperature Probe head to the part whose temperature you wish to measure. Keep the probe touching the part under test until the reading stabilizes (about 30 seconds). -
Page 10: Autoranging/Manual Range Selection
AUTORANGING/MANUAL RANGE SELECTION When the meter is first turned on, it automatically goes into Autoranging. This automatically selects the best range for the measurements being made and is generally the best mode for most measurements. For measurement situations requiring that a range be manually selected, perform the following: Press the RANGE button. -
Page 11: Maintenance
Maintenance WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before removing the back cover or the battery or fuse covers. WARNING: To avoid electric shock, do not operate your meter until the battery and fuse covers are in place and fastened securely. -
Page 12: Specifications
Specifications Function Range Resolution Accuracy DC Voltage 0.001V ±(1.2% reading + 2 digits) (V DC) 0.01V 400V 0.1V 600V ±(1.5% reading + 2 digits) AC Voltage 400mV* 0.1mV ±(1.5% reading + 15 digits) (V AC) 0.001mV ±(1.2% reading + 3 digits) (50 / 60Hz) 0.01V ±(1.5% reading + 3 digits) - Page 13 Function Range Resolution Accuracy 5.000Hz 0.001Hz Frequency ±(1.5% reading + 5 digits) 50.00Hz 0.01Hz 500.0Hz 0.1Hz 5.000kHz 0.001kHz ±(1.2% reading + 3 digits) 50.00kHz 0.01kHz 500.0kHz 0.1kHz 5.000MHz 0.001MHz ±(1.5% reading + 4 digits) Sensitivity: >0.5V rms min. [ 1MHz; >3V rms > 1MHz NOTE: Accuracy is stated at 65 F to 83...
-
Page 14: Warranty
Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451 Copyright © 2008 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form.
