FLIR DM284 User Manual

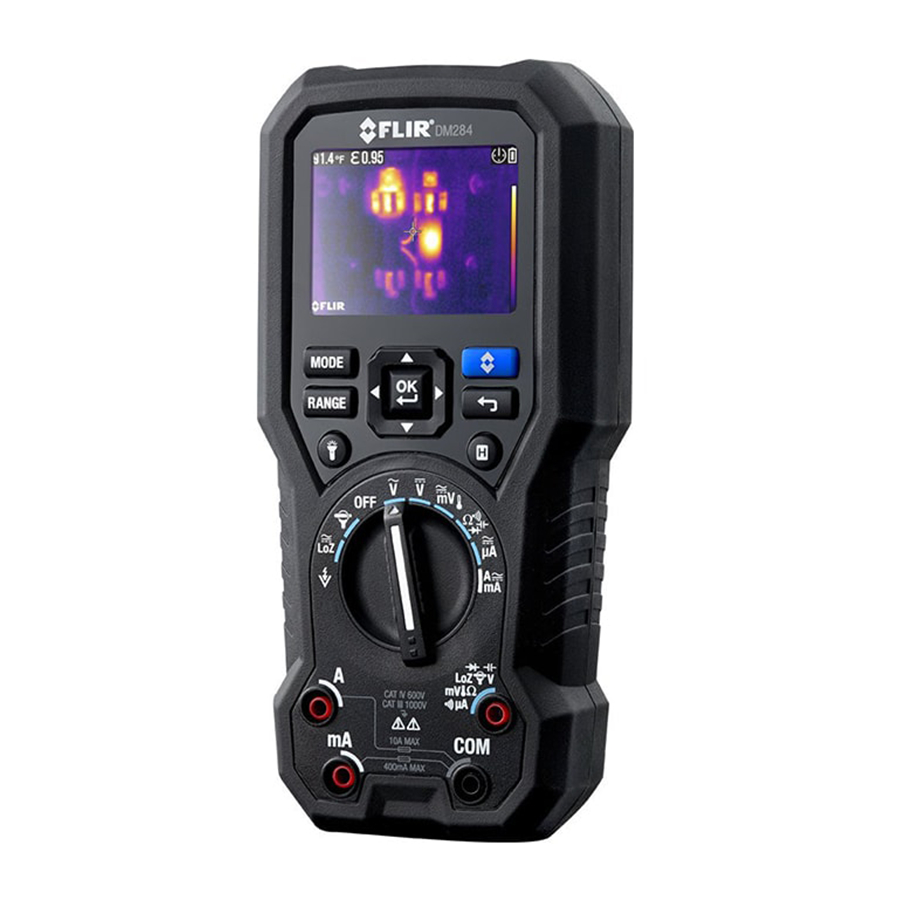

True rms industrial multimeter with igm
Hide thumbs Also See for DM284:
Table of Contents

Advertisement

Quick Links

USER MANUAL
FLIR MODEL DM284
True RMS Industrial Multimeter with IGM
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM284 and is the answer not in the manual?

Questions and answers

Related Manuals for FLIR DM284

Summary of Contents for FLIR DM284

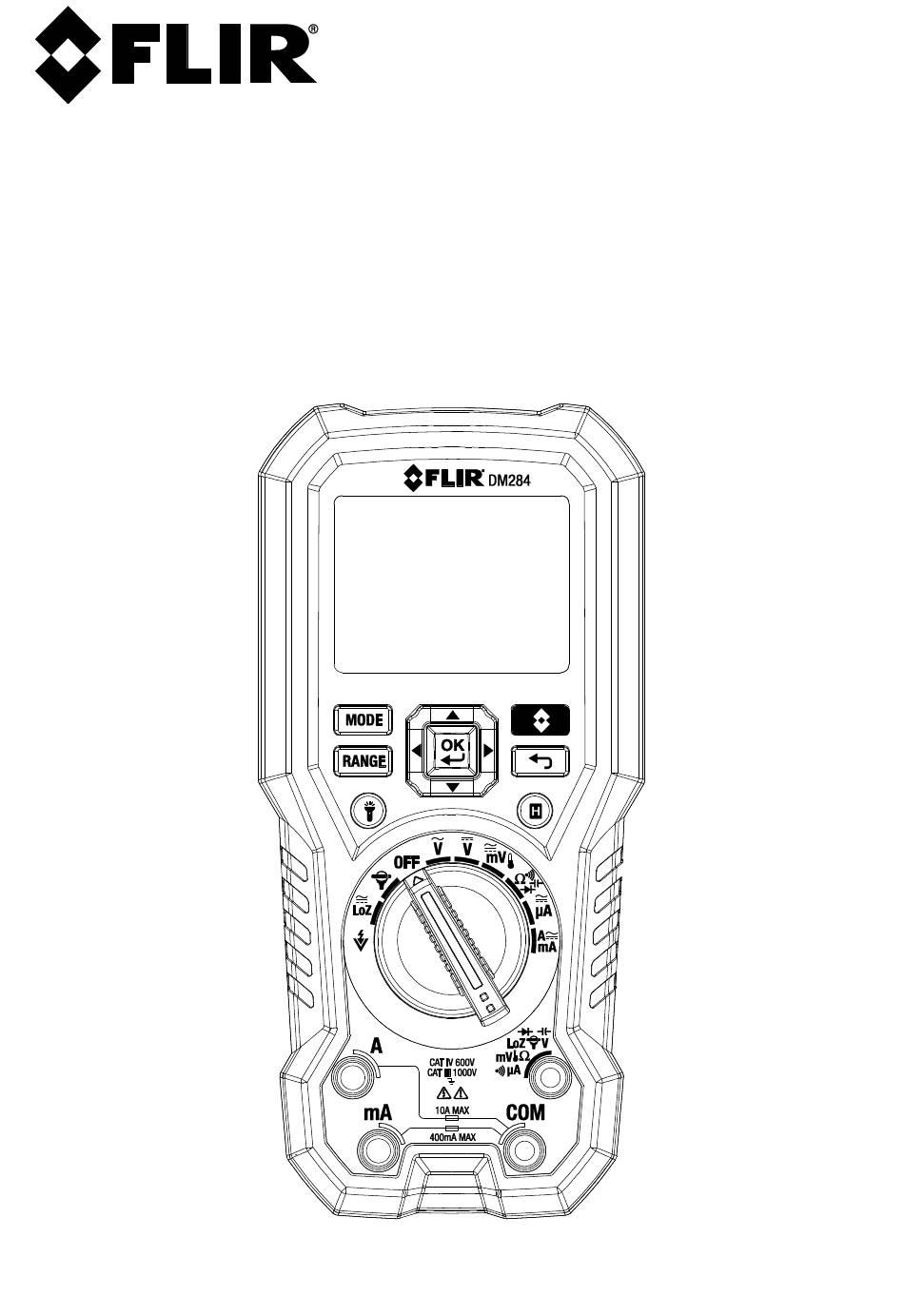

  • Page 1 USER MANUAL FLIR MODEL DM284 True RMS Industrial Multimeter with IGM...

  • Page 2: Table Of Contents

    7.1 Auto/Manual Range Mode 7.2 Probe Connection Alert 7.3 Out of Range Warning (OL) 7.4 Data Hold and Auto Hold 7.4.1 Data Hold Mode 7.4.2 Auto Hold Mode 7.5 Status Bar and Menu Icons FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 3 9.3 Fuse Replacement 9.4 Disposal of Electronic Waste 10. SPECIFICATIONS 10.1 General specifications 10.2 Thermal Imaging Specifications 10.3 Electrical Specifications 11. TECHNICAL SUPPORT 12. WARRANTIES 12.1 FLIR Test & Measurement Imaging Product 10-year/10-year Warranty FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 4: Advisories

    1. Advisories 1.1 Copyright © 2016, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of FLIR Systems.
  • Page 5 Do not point the beam toward anyone's eye or allow the beam to strike the eye from a reflective surface.  Do not use the laser near explosive gases or in other potentially explosive areas.  Refer to the CAUTION statement label (shown below) for critical safety information. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 6: Introduction

    UL listing is not an indication or a verification of the accuracy of the meter 3. Introduction Thank you for selecting the FLIR DM284 True RMS Digital MultiMeter with IGM (Infrared Guide Measurement). The DM284 can measure voltage up to 1000V AC/DC and includes Low-Z (low impedance), VFD (low pass filter), and offers Smart/Classic Diode modes.

  • Page 7: Meter Description And Reference Guide

    2. Thermal Imaging lens 3. Laser pointer lens 4. Lens cover slide control 5. Tripod mount (test lead holder attaches here also) 6. Tilt Stand (Battery Compartment located beneath the stand) Fig. 4-2 Rear View FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 8: Function Switch Positions

    Measure current through the probe inputs (A or mA). Use the MODE button to select AC or DC. Measure µA current through the probe inputs. Use the MODE button to select AC or DC. Fig. 4-3 Function Switch FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 9: Function Buttons And Selector/Navigation Pad

    ACmV → DCmV → Frequency → Temperature Resistance Resistance → Continuity → Capacitance → Diode µA ACµA → DCµA A (A Terminal) ACA → DCA → Frequency mA (mA Terminal) ACmA → DCmA → Frequency FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 10: Selector/Navigation Pad Operation

    Non-Contact Voltage detector (low sensitivity mode) for 160~1000V range Non-Contact Voltage detector (high sensitivity mode) for 80~1000V range MAX (Maximum) reading value displayed MIN (Minimum) reading value displayed AVG (Average) reading value displayed PEAK MAX value displayed PEAK MIN value displayed FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 11 Auto power off function enabled AC current or voltage DC current or voltage Flex Clamp Direct Input Continuity function Diode test function Work light active Bar Graph Measurement Indicator Bar Graph OL (overload) Indicator FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 12: Options And Settings Menus

    Settings menu. More in-depth information may be found in the dedicated IGM section of this manual.  IGM Color Palette selection. Press OK to select one of the display color palettes (Iron, Rainbow, or Gray). FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 13: Vfd Mode

    The meter also averages the total sum of all recorded values. Press OK to show the maximum , minimum , and average readings on the display. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 14: Peak Mode

    Auto hold: Use the OK button to toggle ON (blue dot) and OFF. For more information, see Section 7.4, Data Hold and Auto Hold.  Temperature units. Use the OK button to toggle C and FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 15 1000V → 1000V Default: OFF  Language: Scroll to the desired language and press OK.  Help Screen: View the FLIR Customer Care contact information.  Information: View DMM, IGM, and Laser technical information. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 16: Meter Power

    10 minutes. The time can be set from 1 ~ 10 minutes (select OFF to disable the APO). 20 seconds prior to entering APO mode, the meter beeps; at this point, press any button or turn the Rotary Switch to reset the APO timer. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 17: Multimeter Operation

    In Hold mode, the indicator is displayed. 7.4.2 Auto Hold Mode In Auto hold mode, the secondary display freezes the last reading and the icon is displayed. The real-time reading is displayed on the primary display. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 18: Status Bar And Menu Icons

    The Left side group is located at the top left of the display. The icons are shown below and other relevant areas of this manual when applicable.  FLEX Clamp Adaptor icon  FLEX Clamp Adaptor range  Hazardous voltages present icon FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 19: Test Lead Holder Accessory

    If desired, connect the supplied Test Lead Holder to the rear of the meter. The Test Lead Holder connects to the back of the meter (to items 1 and 5 as shown in Fig. 4-2 in Section 4, Meter Description and Reference Guide). FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 20: Voltage And Frequency Measurements

    Frequency reading. 7. Refer to Section 5, Options and Settings Menus, for customizing the meter and using the VFD, MIN-MAX-AVG, Peak, and Relative modes of operation. Fig. 7-1 Voltage and Frequency Measurements FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 21: Non-Contact Voltage Detector

    5. When a voltage or electromagnetic field is detected the meter will emit a continuous tone and the displayed NCV icon will turn red in color and blink. Fig. 7-2 Non-Contact Voltage Detector FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 22: Resistance Measurements

    5. Read the resistance value on the display. 6. Refer to Section 5, Options and Settings Menus, for customizing the meter and using the MIN-MAX-AVG and Relative modes of operation. Fig. 7-3 Resistance and Continuity Measurements FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 23: Continuity Test

    5. If the reading is between 0.40 and 0.80V in one direction and OL (overload) in the opposite direction, the component is good. If the measurement is 0V in both directions (shorted) or OL in both directions (open), the component is bad. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 24 Fig. 7-4 Classic Diode Test FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 25: Smart Diode Test

    The meter display will show ± 0.4 ~ 0.7V for a good diode, ‘BAD’ for a shorted diode, and ‘O.L’ for an opened diode. See Fig. 7-5 below: Fig. 7-5 SMART Diode Test FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 26: Capacitance Measurements

    MIN-MAX-AVG and Relative modes of operation. Note: For very large capacitance values, it may take several minutes for the measurement to settle and the final reading to stabilize. Fig. 7-6 Capacitance Measurements FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 27: Type K Temperature Measurements

    5. Read the temperature value on the display. 6. To avoid electrical shock, disconnect the thermocouple adapter before turning the function switch to another position. Fig. 7-7 Temperature Measurements FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 28: Current And Frequency Measurements (A, Ma, Μa)

    A AC and mA AC modes. Use the to view the Frequency only. 6. Refer to Section 5, Options and Settings Menus, for customizing the meter and using the VFD, MIN-MAX-AVG, Peak, and Relative modes of operation. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 29 Fig. 7-9 High Current ‘A’ Measurements FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 30 Fig. 7-10 mA Current Measurements Fig. 7-11 uA Current Measurements FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 31: Flex Clamp Adaptor Current And Frequency Measurements

    2. Connect a Clamp adaptor as shown in Fig. 7-12. 3. Set the Range of the Flex Clamp Adaptor to match the range of the DM284. 4. Use the RANGE button to select the range of the DM284 (1, 10, 100 mv/A).

  • Page 32: Igm Tm (Infrared Guided Measurement) Operation

    8. Cross hairs for surface targeting. 9. Thermal image frame 10. DMM measurement is shown below the temperature measurement. Set the meter to show Multimeter readings superimposed on the image in the Image Mode menu. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 33 (at a distance of 30”, the meter ‘sees’ a target spot of 1”). See Fig. 8-2. 7. The thermal imager’s FOV (Field of View) is 50 degrees (top view) and 38.6 degrees (side view), see Fig. 8-3 (a) and (b). Fig. 8-2 Distance-to-Spot ratio 30:1 FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 34: Thermal Settings Menu

    The available range is 0.10 to 0.99 in 0.01 steps.  Laser pointer: Press OK at this icon to switch the laser pointer ON (blue dot next to icon) or OFF. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 35: Image Mode Menu

    Pointer, Work light, APO, battery status, VFD, FLEX clamp input/range, and Low Impedance mode (LoZ). For details on these, please refer to Section 4, Meter Description and Reference Guide Section 7, Multimeter Operation. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 36: Mode

    0.90 to 0.94 Paper 0.70 to 0.94 Marble 0.94 Chromium Oxides 0.81 Plaster 0.80 to 0.90 Copper Oxides 0.78 Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82 Brick 0.93 to 0.96 Textiles 0.90 FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 37: Infrared Energy And Thermal Imaging Overview

    It may take some time to get used to the thermal imagery. Having a basic understanding of the differences between thermal and daylight cameras can help with getting the best performance from the DM284. One difference between thermal and daylight cameras has to do with where the energy comes from to create an image.

  • Page 38: Maintenance

    As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste. Please contact your FLIR Systems representative for more details. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 39: Specifications

    One year Weight: 537g (18.9 oz.) Dimensions: (L x W x H) 200 x 95 x 49mm (7.9 x 3.7 x 1.9 in.) Safety: Complies with IEC 61010-1 CAT IV-600 V, CAT III-1000V FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 40: Thermal Imaging Specifications

    Spectral Response 8~14um Scanning type Continuous Repeatability 0.5% Image Detector Lepton Field of View (FOV) 120 x 160 pixels (50 Color Palettes Iron, Rainbow, and Greyscale Laser type Class 1 Laser power < 0.4mW FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 41: Electrical Specifications

    Freq. Response 6.000V 6.600V 0.001V ±(1.0% + 3D) 45Hz ~ 500Hz 60.00V 66.00V 0.01V 600.0V 660.0V 0.1V ±(1.0% + 3D) 45Hz ~ 1kHz 1000V 1100V Input Impedance: 10MΩ (< 100pF) Overload Protection: AC/DC 1000V FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 42 Maximum measurement time: > 5A for max. 3 minutes with at least 20-minute rest time. > 10A for max.30 seconds with at least 10-minute rest time. Overload Protection: AC/DC 11A for A terminal. AC/DC 660mA for mA terminal. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 43 6.600kΩ 0.001kΩ ±(0.9% + 2D) 60.00kΩ 66.00kΩ 0.00kΩ ±(0.9% + 2D) 600.0kΩ 660.0kΩ 0.1kΩ ±(0.9% + 2D) 6.000MΩ 6.600MΩ 0.001MΩ ±(0.9% + 2D) 50.00MΩ 55.00MΩ 0.01MΩ ±(3.0% + 5D) Overload Protection: AC/DC 1000V FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 44 100mV Unspecified 6.000V 0.6V Unspecified 60.00V Unspecified 600.0V 100V Unspecified 1000V 600V Unspecified Unspecified ACA - Minimum Sensitivity: Range 5Hz ~ 10kHz >10kHz 60.00mA 10mA Unspecified 600.0mA 60mA Unspecified 6.000A Unspecified 10.00A Unspecified FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
  • Page 45 Accuracy does not include the accuracy of the thermocouple probe. Accuracy specification assumes surrounding temperature stable to ±1 °C. For surrounding temperature changes of ± 2 °C, rated accuracy applies after 2 hours. Overload Protection: AC/DC 1000V. FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 46: Technical Support

    70 lumens, minimum Power: 0.5 Watt RMS 11. Technical Support Main Website http://www.flir.com/test Technical Support Website http://support.flir.com Technical support Email TMSupport@flir.com Service/Repair Support Email Repair@flir.com Support Telephone number +1 855-499-3662 option 3 (toll-free) FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...

  • Page 47: Warranties

    Any Product that is repaired or replaced under warranty is covered under this 10-10 Limited Warranty for one hundred eighty days (180) days from the date of return shipment by FLIR or for the remaining duration of the applicable Warranty Period, whichever is longer.
  • Page 48 RMA instructions provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. FLIR will pay for returning to Purchaser any Product that FLIR repairs or replaces under warranty.
  • Page 49 Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855-499-3662 option 3 (toll free) Publication Identification No.: DM284-en-GB Release Version: Release Date: 2016 August Language: en-GB FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA...
