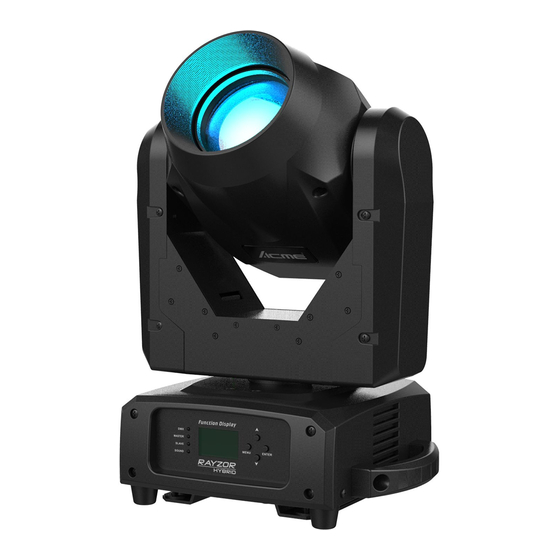

ACME RAYZOR HYBRID XA-100 BSW User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. DJ Equipment
  5. RAYZOR HYBRID XA-100 BSW
  6. User manual

ACME RAYZOR HYBRID XA-100 BSW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

XA-100 BSW

User Manual

Please read the instruction carefully before use

Advertisement

Table of Contents
loading

Related Manuals for ACME RAYZOR HYBRID XA-100 BSW

Summary of Contents for ACME RAYZOR HYBRID XA-100 BSW

  • Page 1: User Manual

    XA-100 BSW User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications .................. 4 3. Description ..................... 5 3.1 Control Panel ..................5 4. Gobo and Lamp ....................6 4.1 Gobos ..................... 6 5. How To Set The Unit ..................7 5.1 Main Function ..................7 5.2 Home Position Adjustment ..............

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power supply - AC 100~240V 50/60Hz Power Consumption - 189W Light Source - 1 X 90W LED Angle -Beam Angle: 11°(on full open) 2°/4°/6°/8°/10° (with beam reducer) 3°/6°/9°/12°/15° /20°(with zoom lens) -Spot Angle: Fix Gobo: 2° 15°(with zoom lens) Rotating Gobo: 10°...

  • Page 6: Description

    Frost - Independent frost effect Focus - Motorized focus Zoom - Motorized linear zoom system Protocols - DMX 512 - Date input/output: 3/5 Pin XLR socket Weight - 12 Kg Dimension - 452× 290×256mm 3. Description 3.1 Control Panel Front view Rear view 5 6 7 1.

  • Page 7: Gobo And Lamp

    MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions 4. DMX input/output: For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together 5.

  • Page 8: How To Set The Unit

    5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.

  • Page 9: Fixture Settings

    mode 1(17) DMX Settings mode 2(20) MasterSlave Blackout Hold Linear Fixture Settings Square Low Inv.SQ Law S Curve Show1 Show4 Master Show Setting Slave1 Slave2 No/Yes Display Settings 0~30 癈/癋 English/Chinese Fixture Test Fixture Information Reset Functions Special Functions...
  • Page 10 DMX Settings To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode or DMX State. DMX Address —DMX512 address setting To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 11 No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Dimmer Curve To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display.
  • Page 12 Show Mode To select Show Mode, press the ENTER button to confirm. Use the UP/DOWN button to select show1, show 2, show 3 or show 4, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Slave Mode To select Slave Mode, press the ENTER button to confirm.
  • Page 13 or let the unit idle one minute to exit menu mode. Fixture Test Enter menu mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto Test or Manual Test Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris, frost, zoom, focus, dimmer and lamp on/off.
  • Page 14 Select Pan﹠Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their home positions) or No(normal), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 15: Home Position Adjustment

    5.2 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 16 Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Gobo 2—Gobo 2 home position adjustment Enter offset mode, Select Gobo 2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button...

  • Page 17: Error Information

    5.3 Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged.

  • Page 18: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 Connection DMX OUT D M X 5 1 2 C O N T R O L L E R ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture).

  • Page 19: Address Setting

    number is between 0-511 (usually 0 & 1 are equal to 1). 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
  • Page 20 TILT 000-255 0 °  270° PAN/TILT SPEED 000-255 Fast to Slow SHOW MODE 000-015 Null 016-063 Show 1 064-127 Show 2 128-191 Show 3 192-255 Show 4 PAN/TILT MACRO 000-007 008-015 Macro 1 016-023 Macro 2 024-031 Macro 3 032-039 Macro 4 040-047...
  • Page 21 240-247 Macro 30 248-255 Macro 31 MACRO SPEED 000-255 fast to slow COLOR 000-015 White 016-018 Color1 019-021 Color2 022-024 Color3 025-027 Color4 028-030 Color5 031-033 Color6 034-036 Color7 037-039 Color8 040-042 Color9 043-045 Color10 046-048 Color11 049-051 Color12 052-054 Color13 055-057 Color14...
  • Page 22 008-016 Gobo2-1 017-025 Gobo2-2 026-034 Gobo2-3 035-043 Gobo2-4 044-052 Gobo2-5 053-061 Gobo2-6 062-127 Gobo2 1 -6 Shaking 128-189 Counter-Clockwise rotation, fast to slow 190-193 Stop 194-255 Clockwise rotation, slow to fast R-GOBO 2 000-127 Index 128~189 clockwise rotation fast to slow 190-193 Stop 194-255...
  • Page 23 000-255 0%  100% SPECIAL FUNCTION 000-069 No function 070-079 Enable blackout while Pan/Tilt Moving 080-089 Disable blackout while Pan/Tilt Moving 090-099 Enable blackout while Color changing 100-109 Disable blackout while Color changing 110-119 Enable blackout while Gobo changing 120-129 Disable blackout while Gobo changing 130-139 No function...
  • Page 24 032-039 Macro 4 040-047 Macro 5 048-055 Macro 6 056-063 Macro 7 064-071 Macro 8 072-079 Macro 9 080-087 Macro 10 088-095 Macro 11 096-103 Macro 12 104-111 Macro 13 112-119 Macro 14 120-127 Macro 15 128-135 Macro 16 136-143 Macro 17 144-151 Macro 18...
  • Page 25 043-045 Color10 046-048 Color11 049-051 Color12 052-054 Color13 055-057 Color14 058-060 Color15 061-063 Color16 064-127 Color wheel indexing 128-189 Counter-Clockwise rotation, fast to slow 190-193 Stop 194-255 Clockwise rotation, slow to fast GOBO WHEEL 1 000-007 Open 008-016 Gobo1-1 017-025 Gobo1-2 026-034 Gobo1-3...
  • Page 26 ANGLE/FROST 000-007 008-128 Angle 129-255 Frost PRISM 000-007 No effect 008-255 Prism Effect R-PRISM 000-127 Index 128-189 Counter-clockwise rotation fast to slow 190-193 Stop 194-255 clockwise rotation slow to fast FOCUS 000-255 0%  100% SHUTTER 000-007 008-015 016-131 slow to fast strobe 132-139 open 140-181...

  • Page 27: Troubleshooting

    200-209 All reset 210-219 Enable blackout while Pan/Tilt Color Gobo Moving 220-229 Disable blackout while Pan/Tilt Color Gobo Moving 230-255 No function 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 28: Cleaning

    8. Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 29 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009+A1:2012; EN55103-2: 2009; EN61000-3-2: 2014; EN61000-3-3: 2013. & Harmonized Standard EN 60598-1:2015;...
