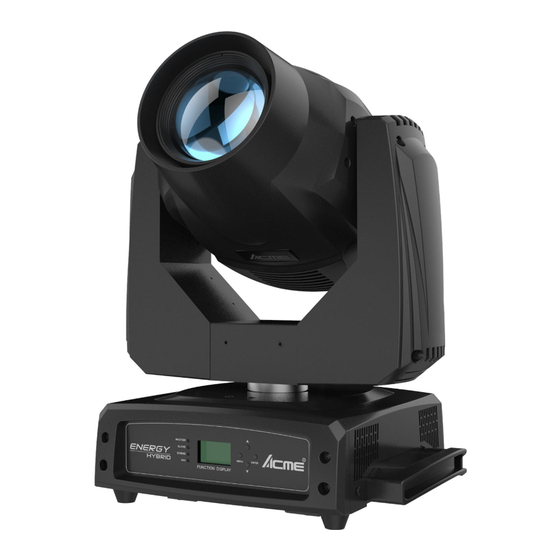

Page 2: Dmx512 Configuration
6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store. - Page 3 192-255 Show 4 COLOR 000-007 Open 008-015 Color 1 016-023 Color 2 024-031 Color 3 032-039 Color 4 040-047 Color 5 048-055 Color 6 056-064 Color 7 065-127 Color Index 128-189 Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Counter-clockwise Rotation, Slow to Fast GOBO 1 000-006 Open...
- Page 4 077-087 Gobo7 088-092 Open 093-097 Gobo1 Shaking 098-102 Gobo2 Shaking 103-107 Gobo3 Shaking 108-112 Gobo4 Shaking 113-117 Gobo5 Shaking 118-122 Gobo6 Shaking 123-127 Gobo7 Shaking 128-189 Counter-clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Clockwise Rotation, Slow to Fast R-GOBO 2 000-127 Gobo Index 128-189...
- Page 5 010-019 Enable Auto Focus 020-029 Disable Auto Focus 030-069 Null 070-079 Enable Blackout While Pan/Tilt Moving 080-089 Disable Blackout While Pan/Tilt Moving 090-099 Enable Blackout While Color Changing 100-109 Disable Blackout While Color Changing 110-119 Enable Blackout While Gobo Changing 120-129 Disable Blackout While Gobo Changing 130-139...
- Page 6 032-039 Color 4 040-047 Color 5 048-055 Color 6 056-064 Color 7 065-127 Color Index 128-189 Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Counter-clockwise Rotation, Slow to Fast GOBO 1 000-006 Open 007-013 Gobo1 014-020 Gobo2 021-027 Gobo3 028-034 Gobo4 035-041 Gobo5...
- Page 7 118-122 Gobo6 Shaking 123-127 Gobo7 Shaking 128-189 Counter-clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Clockwise Rotation, Slow to Fast R-GOBO 2 000-127 Gobo Index 128-189 Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Counter-clockwise Rotation, Slow to Fast PRISM(6-facet prism) 000-007 No Effect 008-255...
-
Page 8: Auto Focus
090-099 Enable Blackout While Color Changing 100-109 Disable Blackout While Color Changing 110-119 Enable Blackout While Gobo Changing 120-129 Disable Blackout While Gobo Changing 130-139 Null 140-149 Pan/Tilt Reset 150-159 Effect Reset 160-199 Null 200-209 All Reset 230-255 Null AUTO FOCUS 000-063 064-127 128-191...
