4.
Install spring (10) in case (1) and pressure
reducing valve assembly (6, 7, 8, 9, 11).
5.
Install seal (20) on plug (18).
6.
Install O-ring (19) on plug (18).
7.
Install push rod (14) on plug (18).
Pilot Control Valve (Work Lever / Joystick)

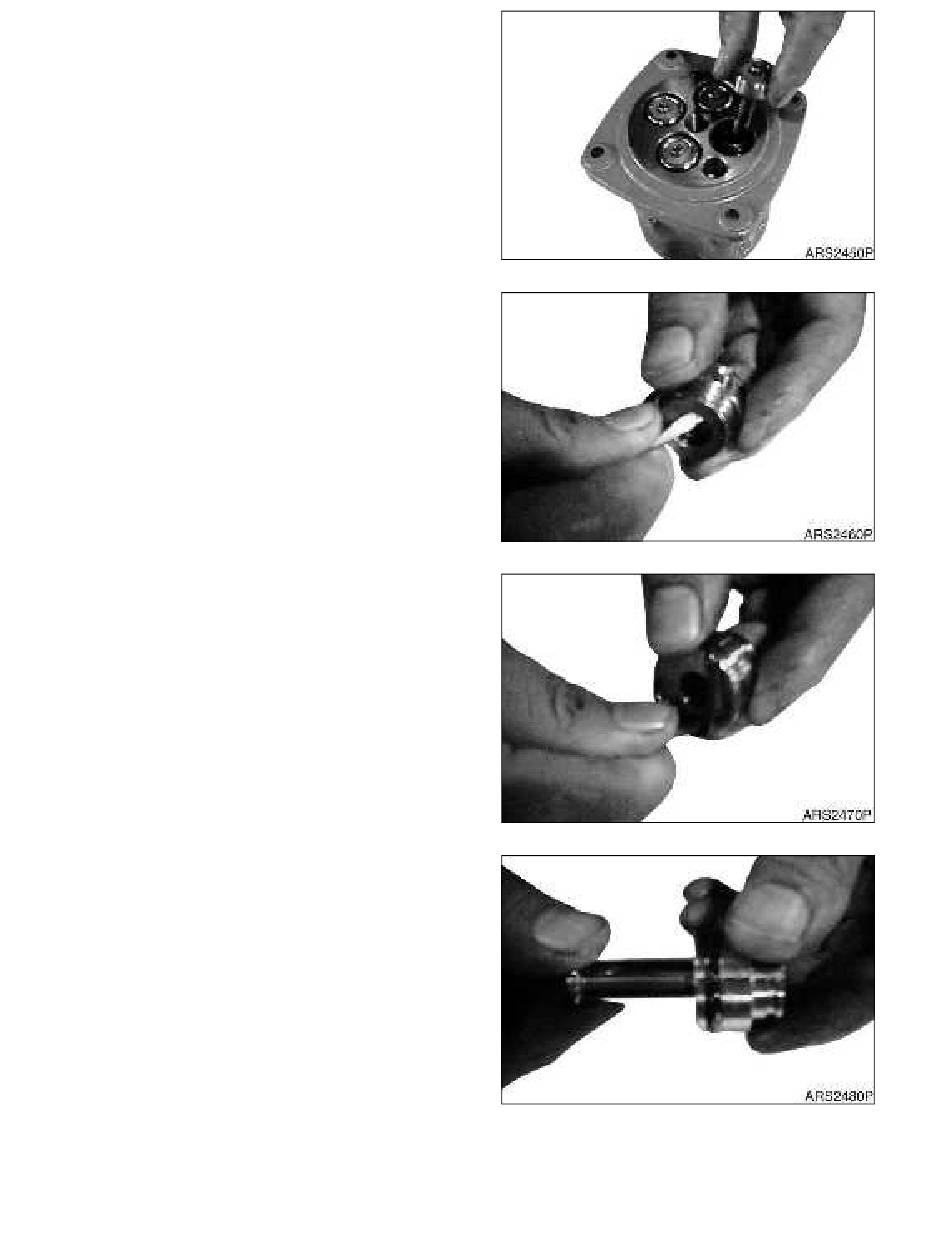

Figure 25
Figure 26
Figure 27
Figure 28
S0709451K
Page 15
