REASSEMBLY

PUMP REGULATOR REASSEMBLY

1. Install O-ring (733) and compensator
piston (621) to piston case (622). Insert
assembly into compensator bore.
2. Insert compensator piston rod (623) into
piston bore.
3. Assemble lever (612) to casing using pin
(875).
4. Install snap ring (836) onto spool sleeve
(651) and insert sleeve into spool bore.
Insert spool (652) into sleeve (already
installed in block).
Main Pump (With Regulator)
Return to Master Table of Contents

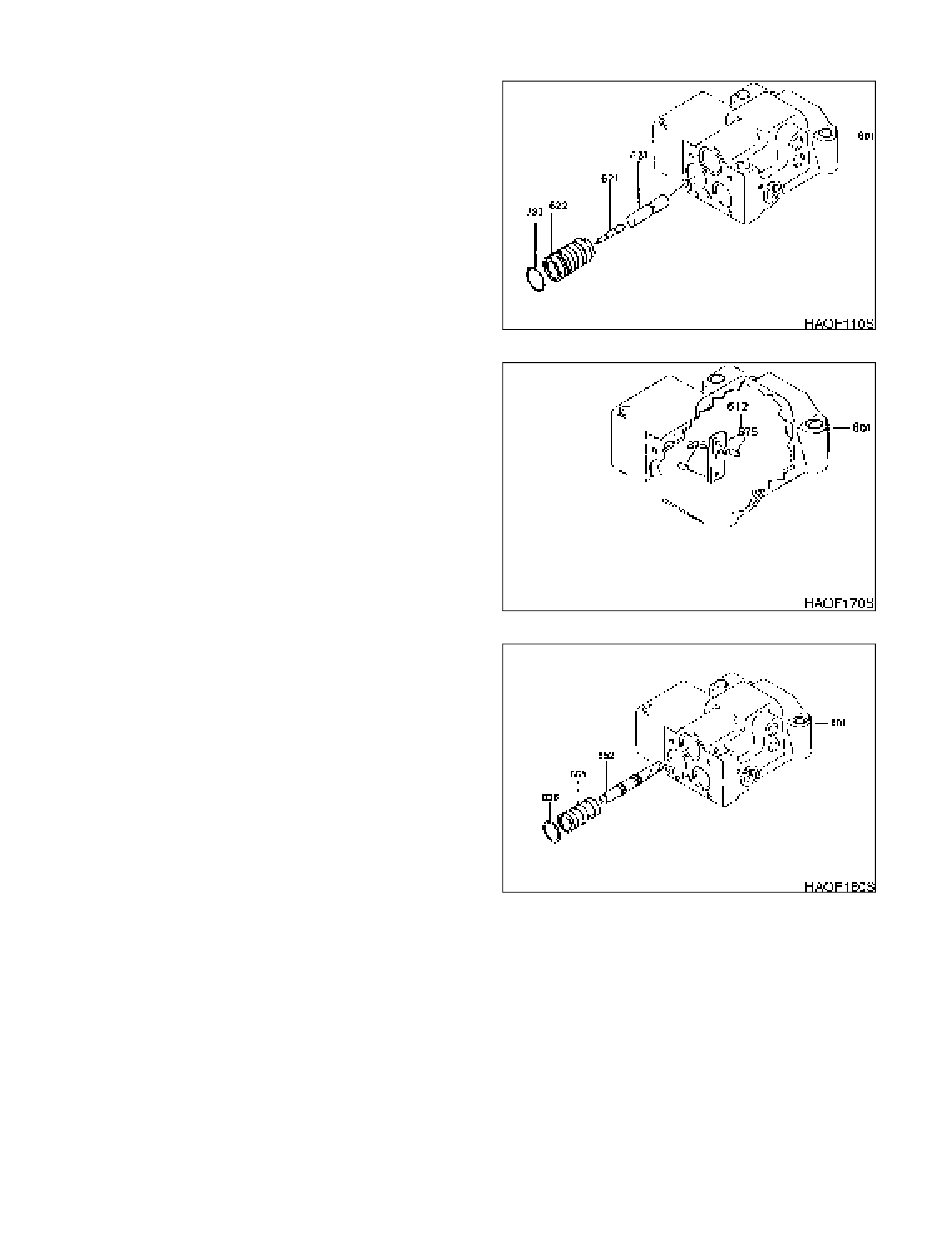

Figure 38
