TRAVEL REDUCTION GEAR REASSEMBLY

Hub Reassembly
1. Place hub (1) on work bench.
2. Press in the outer race of ball bearing (A)
(21) into hub (D) (1) by using jig (C) and
hammer (B).
3. Assemble floating seal (B) (31) into hub
(D) (1).
Spindle Reassembly
1. Assemble floating seal (B) (31) into spindle
(D) (2)
S0707330
Page 42
Return to Master Table of Contents

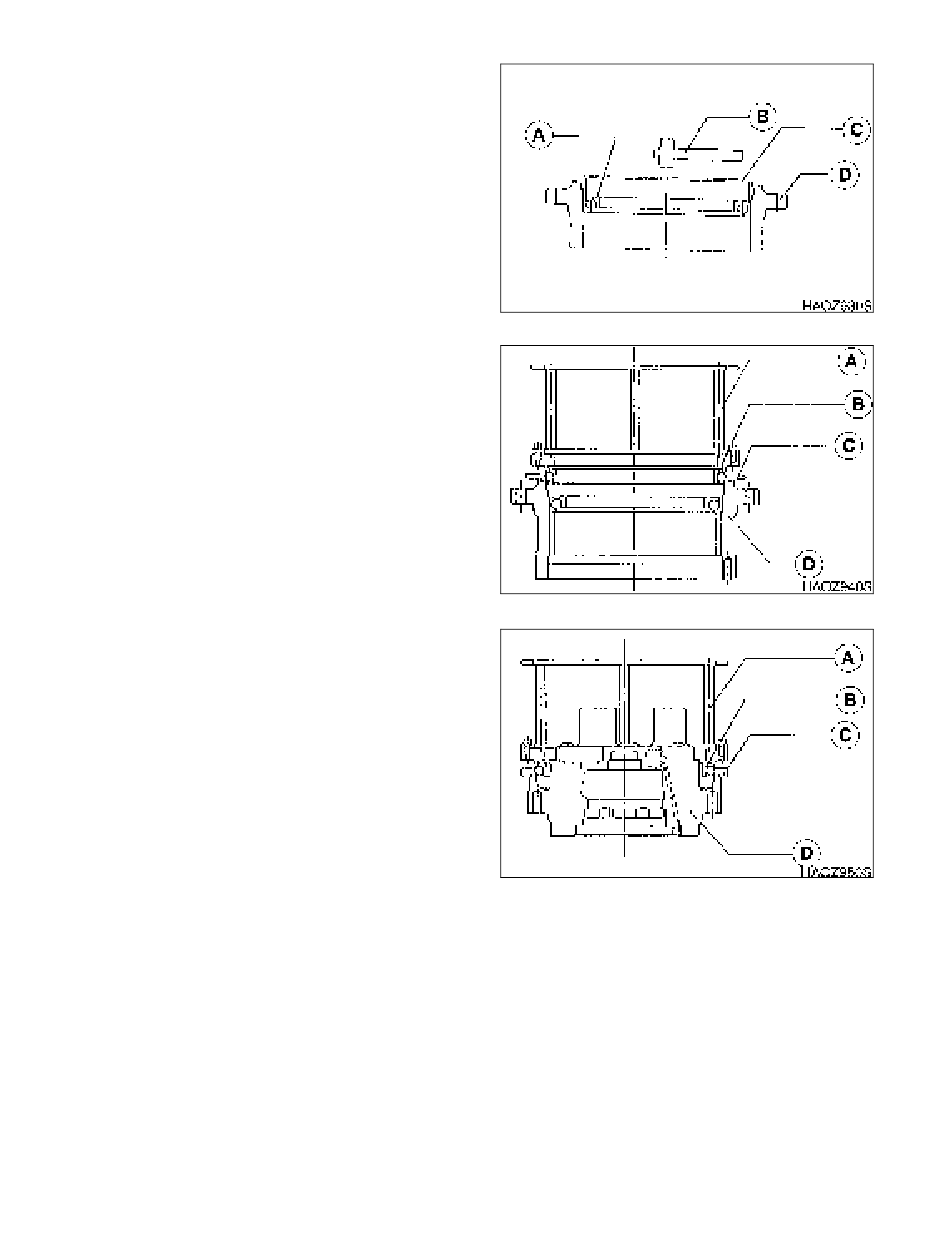

Figure 73
Figure 74
Figure 75
Travel Motor (With Gearbox) (GM35VL)
