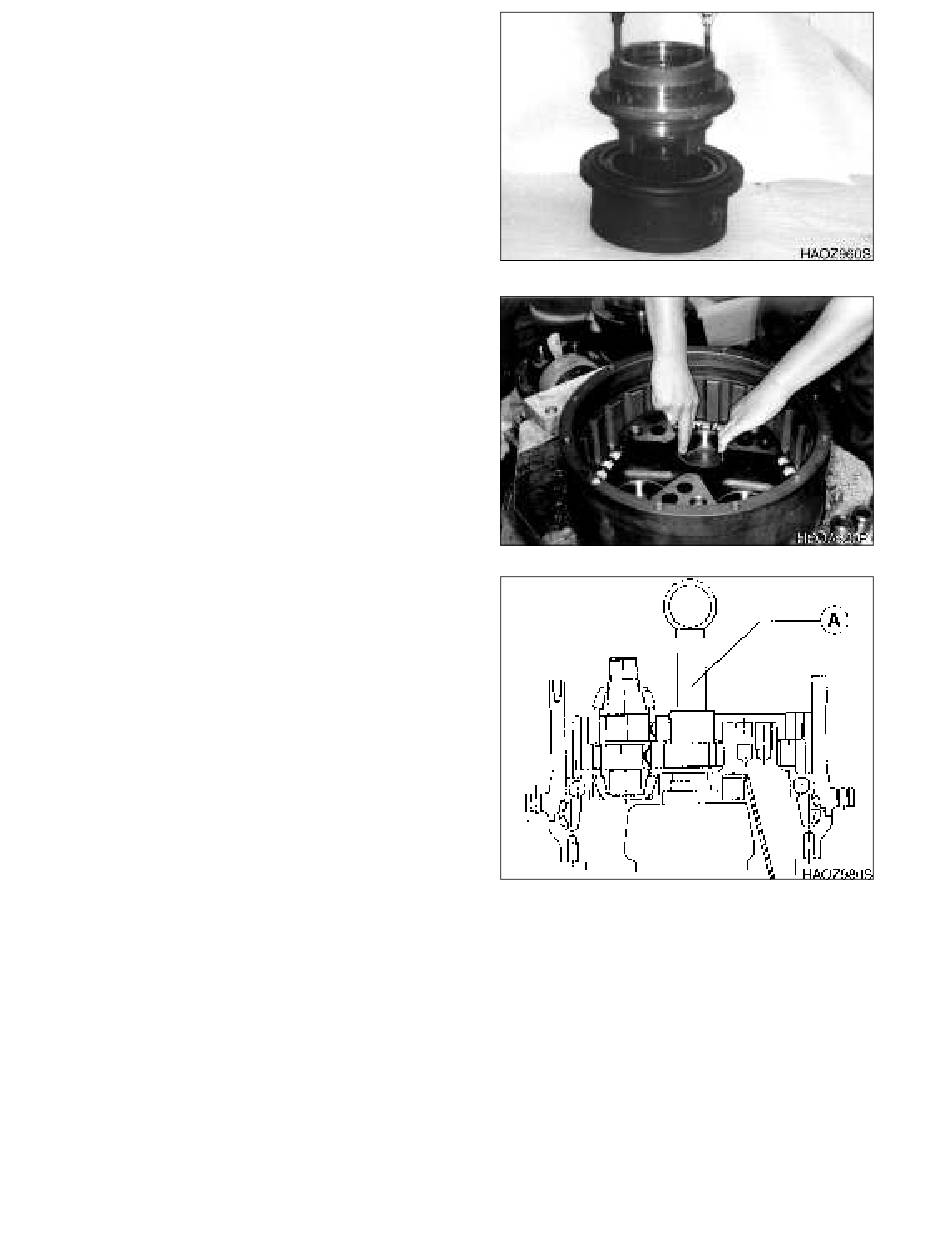

Hub and Spindle Reassembly
1. Install two eye bolts (M16) to spindle (2) at
opposite ends to distribute the weight
evenly.
2. Use a lifting device slowly lower spindle (2)
into hub (1).
3. Insert two stationary metal fittings to hub
(1) and spindle (2) and tighten.
4. Turn motor in opposite direction and
position the cover side upward.
5. Place three bearing races (22) to their
respective locations within the spindle (2).
RV Gear Reassembly
1. Install lifting tool (A, Figure 78) to RV gear
assembly.
2. Using a lifting device lower RV gear
assembly it into spindle (2).
3. Insert twenty-four pins (17) between the
gear teeth and pin.
Travel Motor (With Gearbox) (GM35VL)
Return to Master Table of Contents
Figure 76
Figure 77
Figure 78
S0707330
Page 43
