GENERAL DESCRIPTION

THEORY OF OPERATION

Refer to the assembly cross-section at the end. Travel motor consists of the hydraulic motor and reduction
gearbox.
Hydraulic motor consists of the rotary part, cross relief valve, negative brake, counter balance valve and

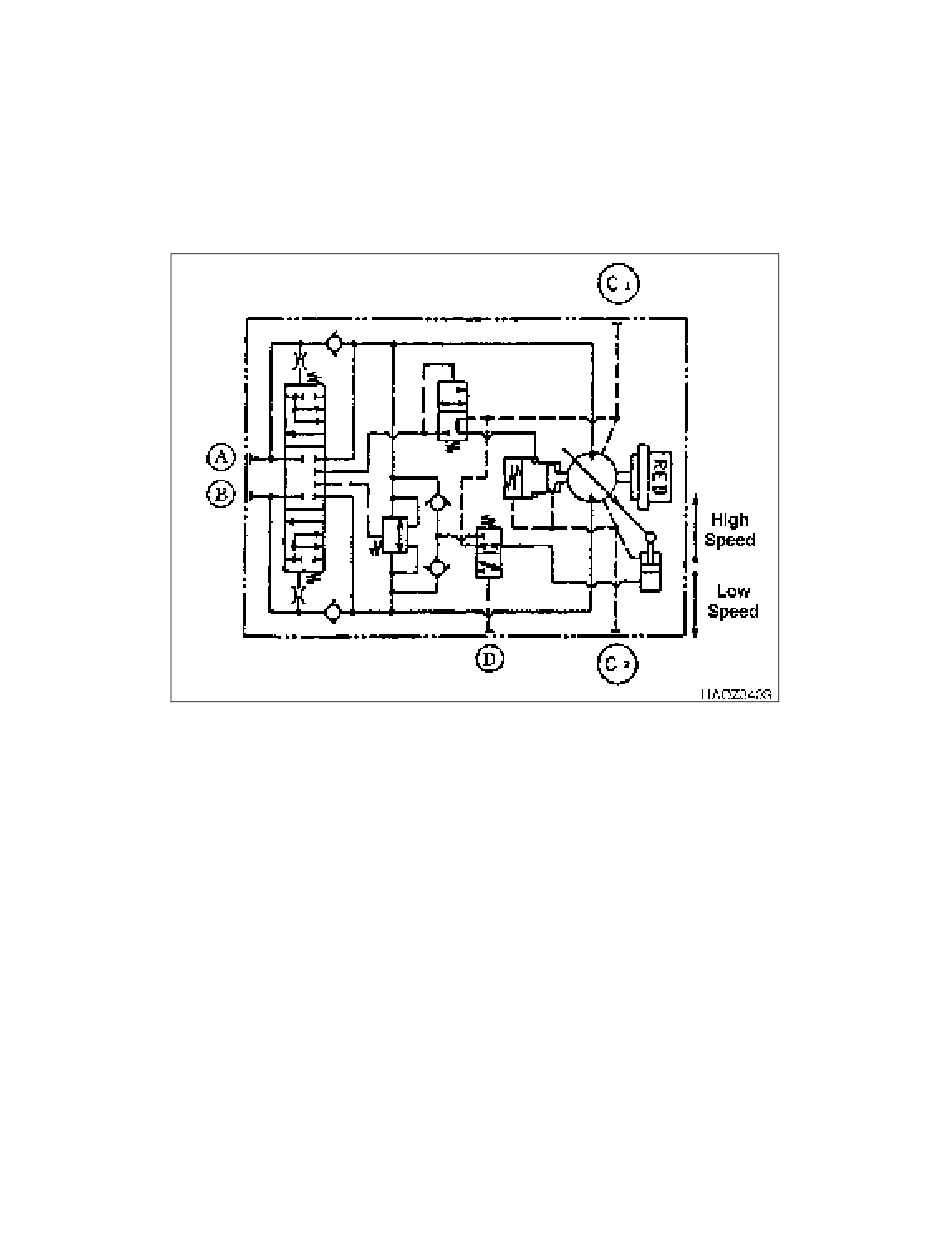

tilting parts. The reduction gearbox consists of a 3-speed planetary gearbox. Figure 1, shows the motor as
a symbol.
Figure 1
Travel Motor (With Gearbox) (GM35VL) S0707330
