Daewoo Solar 225LC-V Shop Manual page 382

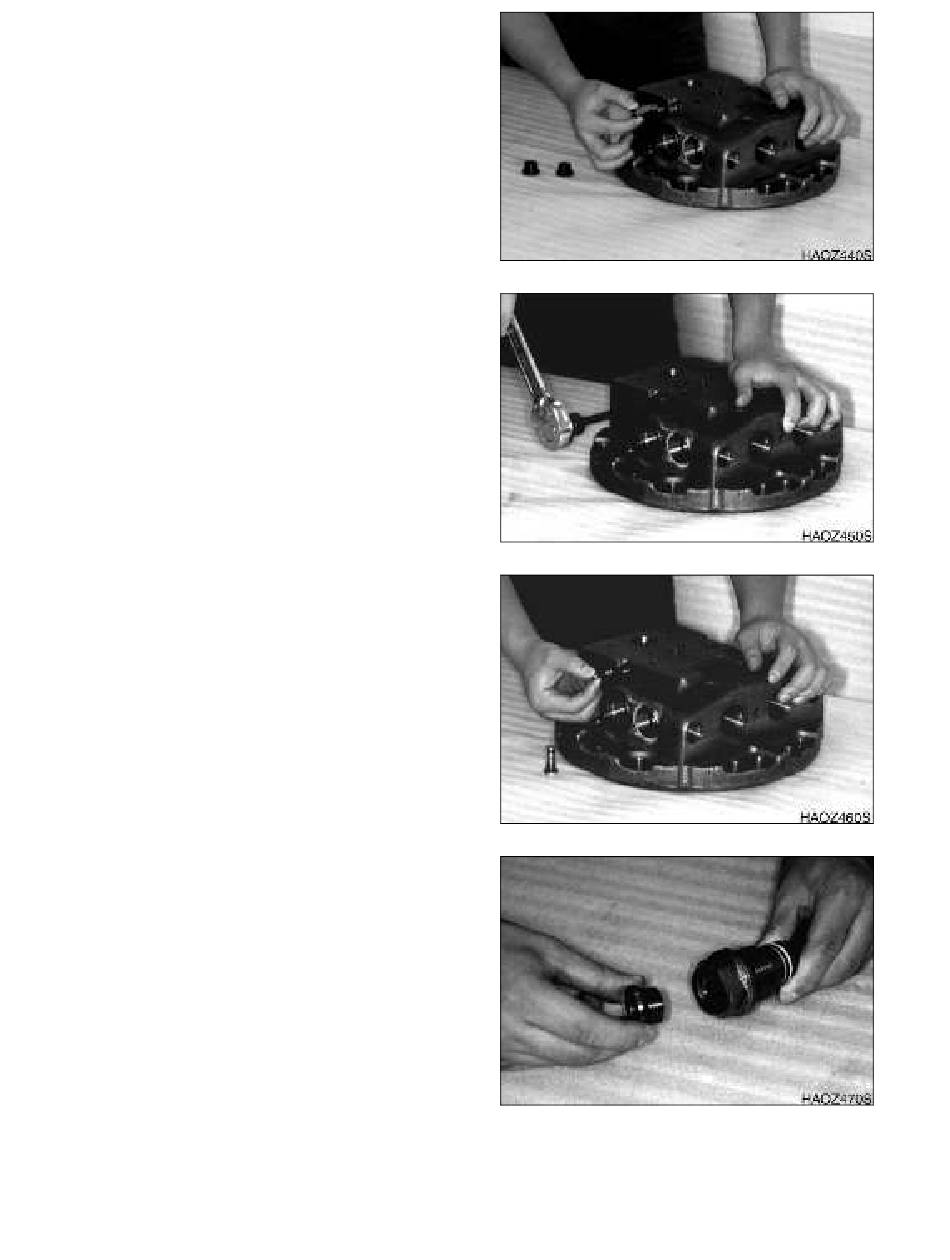

3. Remove piston (381) from rear flange
(301)
4. Remove two plugs (382).
5. Remove O-rings (383 and 384) from plug
(382).
6. Remove steel ball (385) from each plug
hole (301).
Relief Valve Disassembly
1. Remove plug (204) from sleeve (202).
2. Remove O-ring (210) from plug (204).
S0707330
Page 24
Return to Master Table of Contents
Figure 28
Figure 29
Figure 30
Figure 31
Travel Motor (With Gearbox) (GM35VL)
