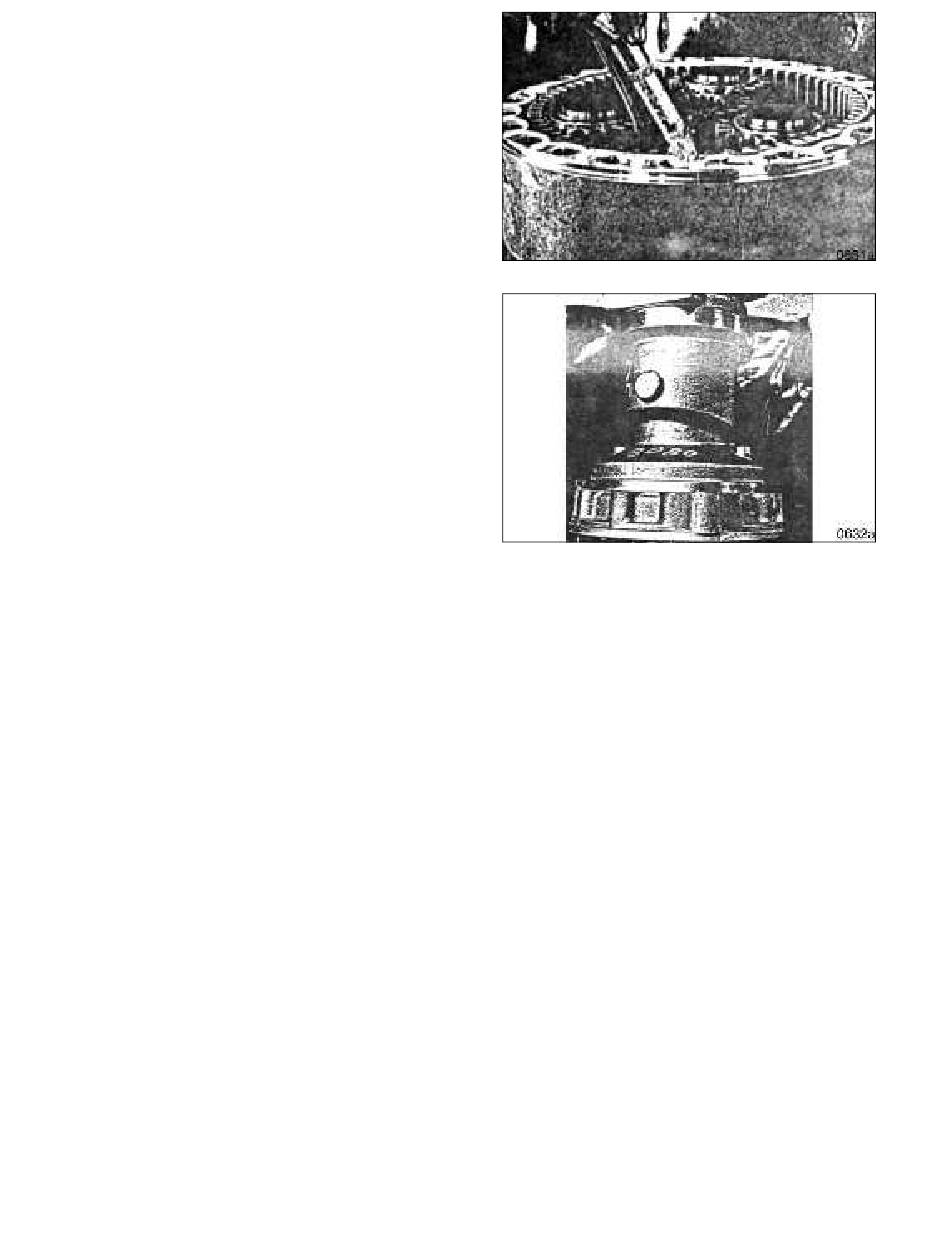

34. Apply an even, thin, continuous bead of
Silicone flexible sealant to the contact
surfaces of the swing motor and the ring
gear. A noncorrosive
formulated for increased oil resistance, is
recommended.
35. Install the stop ring on the drive shaft of
the swing motor. Verify alignment of spline
grooves before assembling the motor and
gearbox. Tighten assembly bolts to the
specified torque value using an even,
staggered sequence.
36. Use teflon tape or some other, similar thread sealant, on the gearbox drain plug, prior to installation.
Fill the gearbox with 6 liters (6.3 quarts) of gear oil.
Swing Reduction Gearbox
Return to Master Table of Contents
type silicone,
Figure 55
Figure 56
