UPPER ROLLER REASSEMBLY
1. Degrease, clean and dry all parts before
reassembly. Insert bushing (10, Figure 46)
into the roller (6).
2. Insert group seal (8, Figure 47) into the
roller (6) and bushing.
NOTE: Apply clean engine oil to the
joint side of the group seal.
Apply grease to the group seal
O-ring.
3. Install the axle, washer (5, Figure 48) and
bolt (4).
4. Attach group seal (8, Figure 39) to the
roller (6, Figure 48) and cover (3).
5. Insert the O-ring (11, Figure 48) to the
cover. Attach cover (3) and bolt (2) to the
roller.
6. Fill with 200 cc (6.8 fluid ounces) of engine
oil.
Track Assembly
Return to Master Table of Contents

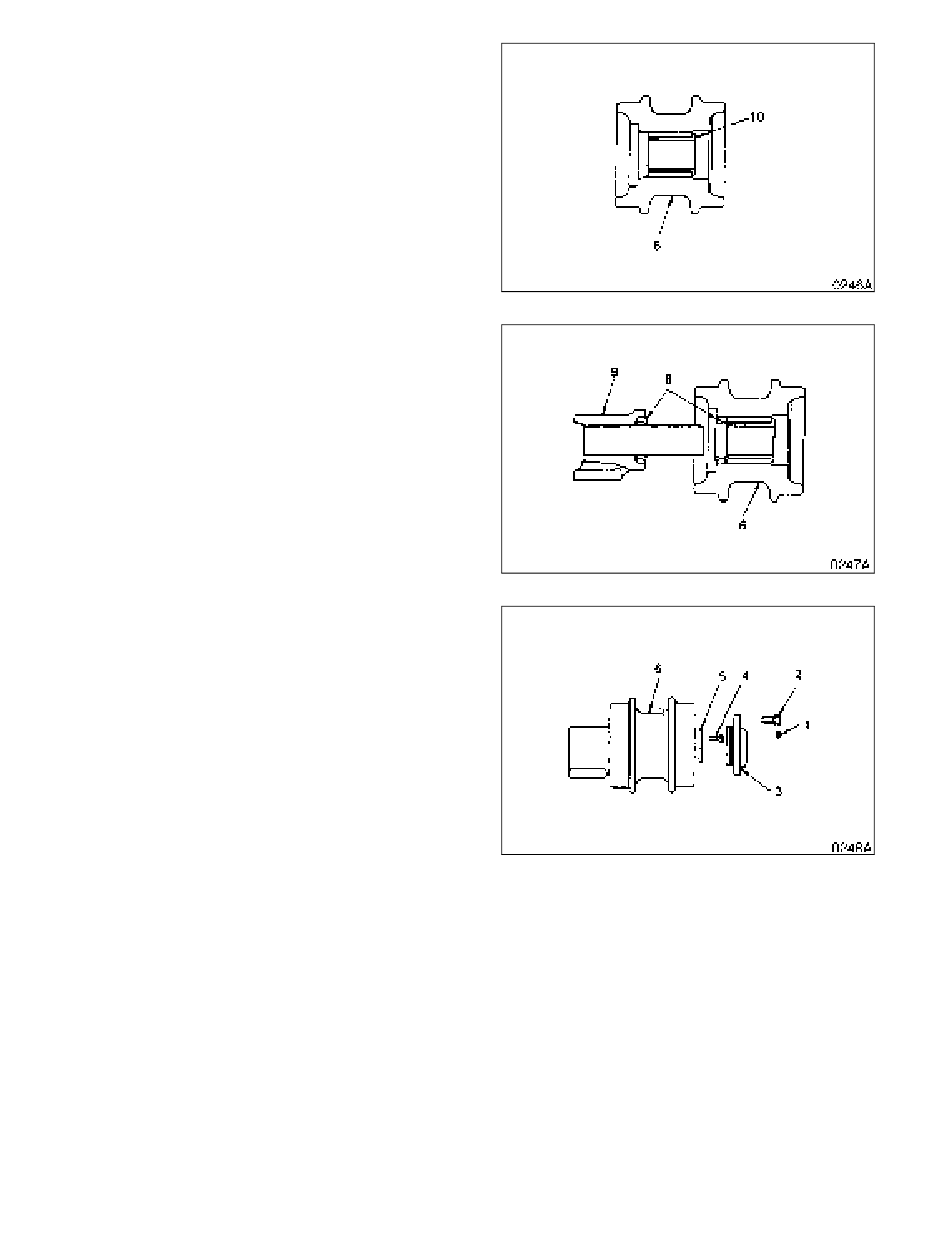

Figure 46
