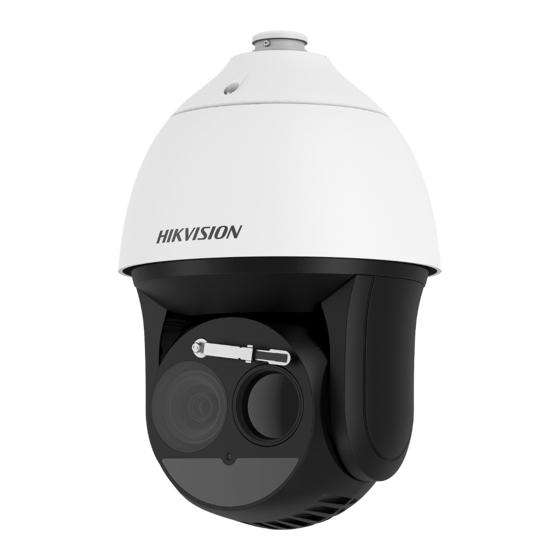

HIKVISION DS-2TD4166-25/V2 User Manual

Thermal bi-spectrum network speed dome
Hide thumbs Also See for DS-2TD4166-25/V2:
Table of Contents

Advertisement

Quick Links

Download this manual
Thermal Bi-spectrum Network
Speed dome
User Manual
COPYRIGHT © 2019 Hangzhou Hikvision Digital Technology Co., Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2TD4166-25/V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-2TD4166-25/V2

Summary of Contents for HIKVISION DS-2TD4166-25/V2

  • Page 1 Thermal Bi-spectrum Network Speed dome User Manual COPYRIGHT © 2019 Hangzhou Hikvision Digital Technology Co., Ltd...
  • Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. © Hikvision...
  • Page 4  Improper use or replacement of the battery may result in explosion hazard. Replace with the same or equivalent type only. Dispose of used batteries in conformance with the instructions provided by the battery manufacturer.  Never attempt to disassemble the device. 0505121090118 © Hikvision...

  • Page 5: Table Of Contents

    Configuring Recording Schedule ..................37 5.1.2 Configuring Capture Schedule ................... 39 5.1.3 Configuring Net HDD ......................41 ....................... 43 VENT ONFIGURATION 5.2.1 Configuring Motion Detection ................... 43 5.2.2 Configuring Video Tampering Alarm ................. 48 5.2.3 Configuring Alarm Input ....................49 © Hikvision...
  • Page 6 7.3.8 Position and Vandal-Resistance Alarm Settings ............... 106 7.3.9 Configuring Linear Scan ....................107 ....................109 ONFIGURING MAGE ETTINGS 7.4.1 Configuring Display Settings .................... 109 7.4.2 Configuring OSD Settings ....................117 7.4.3 Configuring Text Overlay Settings ..................119 © Hikvision...
  • Page 7 7.4.6 Picture in Picture ......................120 ....................121 ONFIGURING YSTEM ETTINGS 7.5.1 System Settings ........................ 121 7.5.2 Maintenance ........................125 7.5.3 Security ..........................130 7.5.4 User Management ......................132 APPENDIX ............................136 SADP S ......................136 OFTWARE NTRODUCTION © Hikvision...

  • Page 8: Chapter 1 Overview

    CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 5 and above version and Google Chrome 18 and above versions. © Hikvision...

  • Page 9: Functions

    You can do intelligent analysis, such as behavior analysis. Multiple rules can be configured for different requirements. For VCA function, refer to Chapter 6 VCA Configuration.  Alarm Input and Output Refer to the figure below to configure the alarm devices and sensors. © Hikvision...
  • Page 10 The on-screen label of the preset title, azimuth/elevation, zoom, time and speed dome name can be displayed on the monitor. The displays of time and speed dome name can be programmed.  Auto Flips In manual tracking mode, when a target object goes directly beneath the speed dome, the video © Hikvision...
  • Page 11 A patrol is a memorized series of pre-defined preset function. The scanning speed between two presets and the dwell time at the preset are programmable.  Pattern A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and © Hikvision...
  • Page 12 Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer. © Hikvision...

  • Page 13: Chapter 2 Network Connection

    To test the network speed dome, you can directly connect the network speed dome to the computer with a network cable as shown in Figure 2-1.  Refer to the Figure 2-2 to set the network speed dome over the LAN via a switch or a router. Network Cable Figure 2-1 Connecting Directly © Hikvision...

  • Page 14: Activating The Speed Dome

    3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower © Hikvision...
  • Page 15 5. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. © Hikvision...
  • Page 16 Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera. Steps: Run the client software and the control panel of the software pops up, as shown in the figure below. © Hikvision...
  • Page 17 Figure 2-7 Device Management Interface Check the device status from the device list, and select an inactive device. Click Activate to pop up the Activation interface. Create a password and input the password in the password field, and confirm the password. © Hikvision...
  • Page 18 Click Modify Netinfo to pop up the Network Parameter Modification interface, as shown in the figure below. Figure 2-9 Modifying the Network Parameters Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. © Hikvision...

  • Page 19: Setting The Network Speed Dome Over The Wan

    Connecting the network speed dome with static IP directly You can also save the static IP in the speed dome and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the speed dome. © Hikvision...

  • Page 20: Dynamic Ip Connection

    This speed dome supports the PPPoE auto dial-up function. The speed dome gets a public IP address by ADSL dial-up after the speed dome is connected to a modem. You need to configure the PPPoE parameters of the network speed dome. Refer to Section 7.1.1 Configuring PPPoE Settings for detailed configuration. © Hikvision...
  • Page 21 2. Configure the DDNS settings in the DDNS Settings interface of the network speed dome. Refer to Section 7.1.1 Configuring DDNS Settings for detailed configuration. 3. Visit the speed dome via the applied domain name.  Private Domain Name Resolution Figure 2-14 Private Domain Name Resolution Steps: © Hikvision...
  • Page 22 2. Access the network speed dome through the LAN with a web browser or the client software. 3. Enable DDNS and select IP Server as the protocol type. Refer to Section 7.1.1 Configuring DDNS Settings for detailed configuration. © Hikvision...

  • Page 23: Chapter 3 Access To The Network Speed Dome

    6. Install the plug-in before viewing the live video and operating the speed dome. Please follow the installation prompts to install the plug-in. You may have to close the web browser to install the plug-in. Please reopen the web browser and log in again after installing the plug-in. © Hikvision...

  • Page 24: Accessing By Client Software

    The product CD contains the client software. You can view the live video and manage the speed dome with the client software. Follow the installation prompts to install the client software and WinPcap. The configuration client software interface and live view interface of are shown below. Figure 3-3 iVMS-4200 Control Panel © Hikvision...
  • Page 25 If you use third party VMS software, please contact technical support of our branch for camera firmware.  For detailed information about client software of our company, please refer to the user manual of the software. This manual mainly introduces accessing to the network speed dome by web browser. © Hikvision...

  • Page 26: Chapter 4 Basic Operations

    TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. UDP: Provides real-time audio and video streams. MULTICAST: It’s recommended to select the protocol type to MULTICAST when using the Multicast function. © Hikvision...

  • Page 27: Live View Page

    The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network speed dome to enter the live view page, or you can click on the © Hikvision...
  • Page 28 Preset/patrol/pattern: Set and call the preset/patrol/pattern for the speed dome. Pattern function varies depending on the models of speed dome. Live View Parameters: Configure the image size, stream type, plug-in type, and two-way audio of the live video. © Hikvision...

  • Page 29: Starting Live View

    Mute/Audio on and adjust View previous / next page. volume Enable/Disable the panorama Show full screen map.  Double-click on the live video to switch the current live view into full-screen or return to normal mode from the full-screen. © Hikvision...

  • Page 30: Panorama Map

    This function is subject to the product models. Purpose: The panorama map is generated from the view of camera panning from current spot towards the right. Steps: Click , and the system generates the panorama map. Click to show the tool bar © Hikvision...

  • Page 31: Operating Ptz Control

    4.4.3 PTZ Control Panel On the live view page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements. Click the zoom/iris/focus buttons to realize lens control. © Hikvision...
  • Page 32 , the lens zooms in, click Zoom out/in , and the lens zooms out. Click , the lens focus far and the items far away gets clear. Click Focus near/far the lens focus near and the items nearby gets clear. © Hikvision...

  • Page 33: Auxiliary Functions

    Stop current patrol/pattern. Set the selected preset/patrol. Delete the selected preset/patrol/pattern. Start recording a pattern. Stop recording the pattern. 4.4.4 Auxiliary Functions The Auxiliary functions panel is shown in the figure below: Figure 4-5 Auxiliary Functions  Light © Hikvision...
  • Page 34 4. Hold down the left mouse button and drag the mouse to the lower right on the live video. The corresponding position will be moved to the center of the live video and zoomed in. © Hikvision...

  • Page 35: Setting / Calling A Preset

    You can configure up to 256 presets.  Calling a Preset: In the PTZ control panel, select a defined preset from the list and click to call the preset. Figure 4-7 Calling a Preset © Hikvision...
  • Page 36 Start auto scan Call pattern 1 Start tilt scan Call pattern 2 Start panorama scan Call pattern 3 Call patrol 5 Call pattern 4 Call patrol 6 One-touch Patrol Call patrol 7 Wiper Call patrol 8 Figure 4-8 Special Preset © Hikvision...

  • Page 37: Setting / Calling A Patrol

    Patrol Speed It is the speed of moving from one preset to another. 5. Click OK to save a preset into the patrol. 6. Repeat the steps from 3 to 5 to add more presets. © Hikvision...

  • Page 38: Setting / Calling A Pattern

    Pattern function varies depending on speed dome models.  Setting a Pattern: Steps: 1. In the PTZ control panel, click to enter the pattern settings interface. 2. Select a pattern number from the list as shown in Figure 4-12. Figure 4-12 Patterns Settings Interface © Hikvision...

  • Page 39: Playback

    3D positioning operation is not supported. 4.5 Playback Purpose: This section explains how to view the video files stored in the network disks or memory cards. 4.5.1 Play Back Video Files Steps: Click on the menu bar to enter playback interface. © Hikvision...
  • Page 40 Select the date and click Figure 4-14 Search Video Click to play the video files found on this date. The toolbar on the bottom of Playback interface can be used to control playing process. Figure 4-15 Playback Toolbar © Hikvision...
  • Page 41 Figure 4-16 Set Playback Time Figure 4-17 Progress Bar The different colors of the video on the progress bar stand for the different video types as shown in Figure 4-18. Figure 4-18 Video Types © Hikvision...

  • Page 42: Downloading Video Files

    4.5.2 Downloading Video Files Steps: Click on the playback interface. The pop-up menu is shown in Figure 4-19. Set the start time and end time. Click Search. The corresponding video files are listed on the left. Figure 4-19 Video Downloading interface © Hikvision...

  • Page 43: Pictures

    Select the channel No. and file type of capturing the pictures from the list as timing, alarm, motion, etc. Set the start time and end time. Click Search. The corresponding picture files will be listed. Check the checkbox in front of the files that you need to download. Click to download the files. © Hikvision...

  • Page 44: Chapter 5 System Configuration

    Configuration > Storage > Schedule Settings > Record Schedule Figure 5-1 Recording Schedule Interface 2. Check the checkbox of Enable to enable scheduled recording. 3. To set the advanced settings of the speed dome, click to enter the advanced settings interface. © Hikvision...
  • Page 45 Besides configuring the recording schedule, you have to set the Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm Input settings interface. For detailed © Hikvision...

  • Page 46: Configuring Capture Schedule

    You can configure the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage. Steps: Enter the Snapshot settings interface: Configuration > Storage > Schedule Settings > Capture Figure 5-3 Snapshot Settings © Hikvision...
  • Page 47 Please refer to Section 7.1.2 Configuring FTP Settings for more details to configure FTP parameters. 2) Check the Enable Timing Snapshot checkbox. 3) Click Edit to set the snapshot schedule. Refer to Section 5.2.1 Configuring Motion Detection.  Upload event-triggered snapshots to FTP © Hikvision...

  • Page 48: Configuring Net Hdd

     Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. © Hikvision...
  • Page 49 Figure 5-7 View Disk Status  Define the Quota for Record and Pictures 1. Input the quota percentage for picture and for record. 2. Click Save and refresh the browser page to activate the settings. Figure 5-8 Quota Settings © Hikvision...

  • Page 50: Event Configuration

    You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected object get marked with rectangle in the live view. Select the configuration mode as Normal or Expert and set the corresponding motion detection parameters.  Normal © Hikvision...
  • Page 51  You can draw up to 8 motion detection areas on the same image.  You can click to clear all of the areas. (3) Move the slider to set the sensitivity of the detection.  Expert © Hikvision...
  • Page 52 Proportion of Object on Area: When the size proportion of the moving object exceeds the predefined value, the alarm will be triggered. The less the value is, the easier the alarm will be triggered. Set the Arming Schedule for Motion Detection. (1) Click tab to enter the arming schedule setting interface. © Hikvision...
  • Page 53 Figure 5-12 Arming Time Schedule (4) After setting the arming schedule, you can click a segment to display the segment arming settings interface to edit the segment record parameters (optional). Figure 5-13 Segment Arming Settings (5) Click to save the settings. © Hikvision...
  • Page 54 To send the Email when an event occurs, you need to refer to Section Configuring Email Settings to set the Email parameters.  Upload to FTP/Memory/NAS Capture the image when an alarm is triggered and upload the picture to a FTP server. © Hikvision...

  • Page 55: Configuring Video Tampering Alarm

    You can configure the speed dome to trigger the alarm actions when the lens is covered. Steps: 1. Enter the Video Tampering settings interface : Configuration > Event > Basic Event > Video Tampering 2. Select the channel to set the video tampering alarm. © Hikvision...

  • Page 56: Configuring Alarm Input

    Configuration > Event > Basic Event > Alarm Input 2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). 3. Edit the name in to set a name for the alarm input (optional). © Hikvision...
  • Page 57 6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox and select the No. to enable Preset Calling, Patrol Calling or Pattern Calling. 7. You can copy your settings to other alarm inputs. 8. Click to save the settings. Figure 5-17 Linkage Method © Hikvision...

  • Page 58: Configuring Alarm Output

    Refer to Section 5.2.1 Configuring Motion Detection. Figure 5-18 Alarm Output Settings You can copy the settings to other alarm outputs. Click to save the settings. © Hikvision...

  • Page 59: Handling Exception

    5.2.6 Detecting Audio Exception Purpose: When you enable this function and audio exception occurs, the alarm actions will be triggered. Steps: Enter the video audio exception detection interface: Configuration > Event > Smart Event > Audio Exception Detection © Hikvision...
  • Page 60 6. Click tab to select the linkage method taken for the audio input exception, Notify Surveillance Center, Send Email, Trigger Alarm Output and Trigger Recording are selectable. Refer to Section 5.2.1 Configuring Motion Detection. Click to save the settings. © Hikvision...

  • Page 61: Fire Source Detection Configuration

    (Event > Dynamic Fire Source Detection) Enable Fire Detection Shield. If the PTZ function is supported by the camera? Set the application scene and zoom parameters. Enable the patrol/park/linear scan. Enable the fire point in the Local Settings. © Hikvision...

  • Page 62: Configuring Initial Position

    (4) Optionally, you can click Point to North to move the device to the north direction if the north direction was once saved. 3. Set the sensitivity of Vandal-proof Alarm. The higher the value is, more easily the alarm will be triggered. © Hikvision...

  • Page 63: Configuring Dynamic Fire Source Detection

    You can set different detection mode, fire source zoom mode, and so on. Steps: 1. Enter Configuration>Advanced Configuration>System>VCA Resource Type to select Fire and Smoke Detection as VCA Resource Type. 2. Enter the fire and smoke detection interface: © Hikvision...
  • Page 64 - In Manual Mode, the device stays still where it detects the fire source, until you manually moves the camera. © Hikvision...

  • Page 65: Configuring Fire Source Detection Shield

    Fire Source Shield enables you to shield certain areas from being detected in fire source detection. The privacy mask function is supported by the optical lens only. Steps: 1. Enter the Fire Source Detection Shield Setting interface: Configuration > Event > Smart Event > Fire Source Detection Shield © Hikvision...
  • Page 66 You are allowed to draw up to 24 areas on the same image. 9. Click to save the settings. For some models, the smoke detection function is not supported and you cannot select Fire and Smoke Detection Mode. © Hikvision...

  • Page 67: Temperature Measurement

    2. Check the checkboxes of the interface to set the temperature measurement configurations.  Enable Temperature Measurement: Check the checkbox to enable temperature measurement function.  Enable Color-Temperature: Check the checkbox to display Temperature-Color Ruler in live view.  Display Temperature Info. on Stream: Check the checkbox to display temperature © Hikvision...

  • Page 68: Temperature Measurement And Alarm

    Select the temperature measurement and alarm configuration as Normal. Configure the parameters. Figure 5-26 Temperature Measurement Configuration Emissivity: Set the emissivity of your target. Note: The emissivity of each object is different. Distance (m): The straight-line distance between the target and the device. © Hikvision...
  • Page 69 Select the temperature measurement and alarm configuration as Expert. Adjust the PTZ. Figure 5-27 Temperature Measurement Configuration 1) Adjust the image to the scene for temperature measurement with the PTZ control panel. Save current scene as certain preset. © Hikvision...
  • Page 70 Set the Pre-Alarm Output and Alarm Output with the connected alarm sensor and alarm device. E.g., select Alarm Rule as Above (Average Temperature), and set the Alarm Temperature to 50 °C, and the device alarms when its average temperature is higher © Hikvision...
  • Page 71 Alarm Rule setting interface. Figure 5-30 Alarm Rule Settings (Area) b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance Temperature. d) Set the Pre-Alarm Output and Alarm Output with the connected alarm sensor and © Hikvision...

  • Page 72: Linkage Method

    You can specify the linkage method when an event occurs. 3. Click Save to save the settings. After the settings, you can view the current temperature and humidity on the top of this interface. © Hikvision...

  • Page 73: Search History Temperature

    1. Select the camera channel, preset point, rule and display time interval from the drop-down list. 2. Set the start time. 3. Click Search button to generate the graphic. 4. Click Export to download the graphic. Figure 5-32 History Temperature Graphic Configuration © Hikvision...

  • Page 74: Chapter 6 Vca Configuration

    And if you tick the checkbox of display target info and rule on stream, the information will be added to the video stream, and the overlay will be displayed if you get live view or play back by the VS Player. © Hikvision...

  • Page 75: Advanced Configuration

    Figure 6-2 Advanced Configuration 2. Adjust the Detection Parameters. Detection Sensitivity: Range [0-4], the higher the sensitivity is, the easier the target will be detected. Background Update Rate: Range [0-4], if a detected target remains in the monitoring scene © Hikvision...

  • Page 76: Behavior Analysis

    2. Configure the Zooming Ratio parameters: Set the appropriate tracking zooming ratio with the PTZ control panel. Click on to save the settings. The optical camera will track the target when the VCA rule is triggered which is configured on the thermal camera. © Hikvision...
  • Page 77 Figure 6-3 Zoom Ratio 3. Configure the Scene: Go to VCA > Scene Configuration > Scene Parameters At most 10 scenes can be added. Different rules and properties can be configured for each scene. Figure 6-4 Scene Parameters © Hikvision...
  • Page 78 Configure the Duration: Set the dwell time of the target cross the line or area. The intelligent analysis will be enabled during the period. Configure the Sensitivity: The higher the value is, more easily the alarm will be © Hikvision...
  • Page 79 Create multiple rules: You can create more rules by repeating the above steps.  Configure Arming schedule: Click the Arming Schedule tab. Select a rule from the rule list. Figure 6-6 Arming Schedule Click on the Edit button to edit the arming time segment. © Hikvision...
  • Page 80 You can select to copy the settings to whole week or are specific days of the week. At most 8 segments can be configured. Click to save the settings.  Configure Arming schedule: Click the Alarm Linkage tab. Select a rule from the rule list. Figure 6-8 Alarm Linkage © Hikvision...

  • Page 81: Rule Configuration Demonstration

    Max. size filter. Configure the rule area: Click on the tool bar of the live view panel. Specify a point of the line by clicking the mouse on the live view image, and then specify the other one. © Hikvision...

  • Page 82: Intrusion

    Configure the rule area: Click on the tool bar of the live view panel. Click the mouse on the live view image to specify a corner of the area. After you specify all the corners, right click the mouse to © Hikvision...

  • Page 83: Region Entrance

    Click the mouse on the live view panel. Right click the mouse to finish drawing. Configure the filtering size: for details, see step 3 in section 6.4.1 Line Crossing. © Hikvision...

  • Page 84: Region Exiting

    Click the mouse on the live view panel. Right click the mouse to finish drawing. Figure 6-12 Draw Area Configure the filtering size: for details, see step 3 in section 6.4.1 Line Crossing. Click the dropdown list of Detection Target to select the target. © Hikvision...
  • Page 85 User Manual of Thermal Bi-spectrum Network Speed dome Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule. Click to save the settings. © Hikvision...

  • Page 86: Chapter 7 Speed Dome Configuration

    IPv4 and IPv6 are both supported. Steps: Enter TCP/IP settings interface: Configuration > Network > Basic Settings > TCP/IP Figure 7-1 TCP/IP Settings 2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway. © Hikvision...
  • Page 87  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Steps: © Hikvision...
  • Page 88 Figure 7-4 DynDNS Settings  IP Server: Steps: (1) Enter the Server Address of the IP Server. (2) Click to save the settings. The Server Address should be entered with the static IP address of the computer that runs © Hikvision...
  • Page 89 Configuring PPPoE Settings Purpose: If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) function. Steps: 1. Enter the PPPoE settings interface: Configuration > Network > Basic Settings > PPPoE © Hikvision...
  • Page 90 Figure 7-8 Port Settings Set the HTTP port, RTSP port and port of the speed dome. HTTP Port: The default port number is 80. RTSP Port: The default port number is 554. HTTPS Port: The default port number is 443. © Hikvision...
  • Page 91 To port mapping with the default port numbers: Choose To port mapping with the customized port numbers: Choose And you can customize the value of the port number by yourself. Figure 7-9 Port Mapping Mode Click to save the settings. © Hikvision...

  • Page 92: Advanced Settings

    The SNMP version you select should be the same as that of the SNMP software. Steps: 1. Enter the SNMP settings interface: Configuration > Network > Advanced Settings > SNMP Figure 7-10 SNMP Settings © Hikvision...
  • Page 93 For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, © Hikvision...
  • Page 94 Before you start: Please configure the DNS Server settings under Configuration> Network > Basic Settings > TCP/IP before using the Email function. Steps: 1. Enter the Email settings interface: Configuration> Network > Advanced Settings > Email © Hikvision...
  • Page 95  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured. © Hikvision...
  • Page 96 Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Steps: 1. Enter the HTTPS settings interface. Configuration > Network > Advanced Settings > HTTPS 2. Create the self-signed certificate or authorized certificate. © Hikvision...
  • Page 97 3) Download the certificate request and submit it to the trusted certificate authority for signature. 4) After receiving the signed valid certificate, import the certificate to the device. 5) Click OK to save the settings. 3. There will be the certificate information after you successfully create and install the certificate. © Hikvision...
  • Page 98  Make sure that you enable the QoS function of your network device (such as a router).  It will ask for a reboot for the settings to take effect. Configuring 802.1X Settings Purpose: The speed dome supports IEEE 802.1X standard. © Hikvision...
  • Page 99 Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Steps: Connect the network camera to your PC directly with a network cable. Enter the 802.1X settings interface: Configuration > Network > Advanced Settings > 802.1X © Hikvision...
  • Page 100 Note: ONVIF user account is different from the camera user account. You have set ONVIF user account independently. 3. Save the settings. Note: User settings of ONVIF are cleared when you restore the camera. © Hikvision...

  • Page 101: Configuring Video And Audio Settings

    The parameters vary depending on the models of the speed dome. Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio. Resolution: © Hikvision...
  • Page 102 I Frame Interval: Set the I-Frame interval from 1 to 400. SVC: Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to disable/enable the SVC function. Select Auto, and the device will automatically extract frames © Hikvision...

  • Page 103: Configuring Audio Settings

    Display VCA Info By: Select the display media as Player or Video. Player means the VCA info can displayed only by Hikvision player. Video means the VCA info can displayed by any general video player.

  • Page 104: Configuring Roi Settings

    When Dynamic Region is enabled, image quality of tracking target will be enhanced. ROI function varies depending on the models of speed dome. Steps: Enter the ROI settings interface: Configuration >Video/Audio > ROI Select the channel No. from the drop-down list. Figure 7-24 Region of Interest (1) © Hikvision...
  • Page 105 Check Enable Target Tracking checkbox to enable target tracking, and the target is set as region of interest. Adjust the ROI level from 1 to 6. Click Save to save the settings. This function varies according to models. © Hikvision...

  • Page 106: Ptz Configuration

    1. Enter the Basic PTZ Parameter Configuration interface: Configuration > PTZ > Basic Settings Figure 7-26 Basic PTZ Configuration Interface 2. Configure the following settings:  Basic Parameters: Enable/disable proportional pan and preset freezing, set the preset speed, keyboard control speed, and auto scan speed. © Hikvision...

  • Page 107: Configuring Ptz Limits

    The image of these two channels will be consistent. 3. Click to save the settings. 7.3.2 Configuring PTZ Limits Purpose: The speed dome can be programmed to move within the configurable PTZ limits (left/right, up/down). Steps: © Hikvision...

  • Page 108: Configuring Park Actions

    Click Set to save the limits or click Clear to clear the limits. 7.3.3 Configuring Park Actions Purpose: This feature allows the speed dome to start a predefined park action (scan, preset, pattern and etc.) automatically after a period of inactivity (park time). © Hikvision...

  • Page 109: Configuring Privacy Mask

    Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: 1. Enter the Privacy Mask settings interface: Configuration > PTZ > Privacy Mask © Hikvision...
  • Page 110 Figure 7-30 Privacy Mask List Check the checkbox of Enable Privacy Mask to enable this function. You are allowed to draw up to 8 areas for the speed dome. © Hikvision...

  • Page 111: Configuring Scheduled Tasks

    5. Select the timeline of a certain day, click and drag the the mouse to set the recording schedule (the start time and end time of the recording task). 6. After you set the scheduled task, you can click and copy the task to other days (optional). © Hikvision...

  • Page 112: Clearing Ptz Configurations

    Configuration > PTZ > Clear Config 2. Check the checkbox of the items you want to clear. 3. Click to clear the settings. 7.3.7 Prioritize PTZ Steps: 1. Enter the Prioritize PTZ interface: Configuration > PTZ > Prioritize PTZ. © Hikvision...

  • Page 113: Position And Vandal-Resistance Alarm Settings

    4. Click to save the settings. 7.3.8 Position and Vandal-Resistance Alarm Settings Steps: 1. Enter the Position Settings interface: Configuration > PTZ > Position Settings. The actual interface may vary from model to model. Figure 7-35 Position Settings © Hikvision...

  • Page 114: Configuring Linear Scan

    4. Click Save Ratio to save the zoom ratio. 5. Optionally, you can click Enable Saved Ratio to set the camera to the saved zoom ratio. 6. Click Set Scan Area and set the left/right/up/down limits with the PTZ control panel and © Hikvision...
  • Page 115 7. Optionally, you can click Clear to delete the saved scan area. 8. Click Save to save the settings and the Linear Scan Area shows Scan area saved. 9. Click Start Linear Scan and Stop Linear Scan to start and stop the saved linear scan. © Hikvision...

  • Page 116: Configuring Image Settings

    Configuration > Image> Display Settings 2. Select the channel No. from the dropdown list. Figure 7-37 Display Settings 3. You can select the Scene in the dropdown list with different predefined image parameters. 4. Set the image parameters of the speed dome. © Hikvision...
  • Page 117 Figure 7-38 Manual Iris  Shutter Priority: The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment. © Hikvision...
  • Page 118 In Manual mode, you need to use on the control panel to focus manually.  Min. Focus Distance This function is used to limit the minimum focus distance. The minimum focus value varies depending on the models of speed dome. © Hikvision...
  • Page 119 The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image © Hikvision...
  • Page 120  Sodium Lamp You can select this mode when there are sodium lamps installed near the speed dome.  Auto-Tracking In Auto-Tracking mode, white balance is continuously being adjusted in real-time according to the color temperature of the scene illumination. © Hikvision...
  • Page 121 Choose the level of laser compensation.  OIS (Optical Image Stabilization) You can set the OIS to OFF, Normal, or Expert as you need. In Expert mode, you can set the OIS level and sensivity as you need. © Hikvision...
  • Page 122 You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list.  Local Output You can enable or disable the video output through the BNC interface on your demand. The functions vary depending on the models of speed dome. © Hikvision...
  • Page 123 E.g. the bird in forest. • Self-Adaptive: Choose AGC mode automatically according to current scene.  Image Enhancement  Digital Noise Reduction: DNR reduces the noise in the video stream. OFF, Normal Mode and Expert Mode are selectable. OFF: DNR is disabled. © Hikvision...

  • Page 124: Configuring Osd Settings

    The digital zoom is available for the thermal sensor, there are x2 and X4 selectable. This function varies depending on the models of speed dome. 7.4.2 Configuring OSD Settings Purpose: The speed dome supports following on screen displays: Time: Supports for time display. © Hikvision...
  • Page 125 5. Select from the dropdown list to set the time format, date format, display mode, OSD size and Font color. 6. You can use the mouse to click and drag the text frame IPdome in the live view window to adjust the OSD position. © Hikvision...

  • Page 126: Configuring Text Overlay Settings

    You can customize the VCA rule display information format. Step: Figure 7-53 VCA Rule Display 1. Set the font size of the VCA rules. 2. Customize the color of line and frame for Normal, Pre-Alarm, and Alarm. 3. Click to save the settings. © Hikvision...

  • Page 127: Configuring Dpc Settings

    (Optional) Click to cancel the correction. This function varies depending on the models of speed dome. 7.4.6 Picture in Picture Before you start: Enter Configuration > System > System Maintenance > VCA Resource Type to select Picture in © Hikvision...

  • Page 128: Configuring System Settings

    Encoding Version, Web Version, Plugin Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future. © Hikvision...
  • Page 129 Time Synchronization consists of auto mode by Network Time Protocol (NTP) server and manual mode. Enter the Time Settings interface: Configuration > System > System Settings > Time Settings Figure 7-57 Time Settings  Configuring Time Synchronization by NTP Server © Hikvision...
  • Page 130 (3) Click to save the settings. You can also check the Sync with local time checkbox to synchronize the time of the speed dome with the time of your computer. Figure 7-59 Time Sync Manually © Hikvision...
  • Page 131 The RS-485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit. Steps: Enter RS-485 Port Setting interface: Configuration> Advanced Configuration> System > RS-485 © Hikvision...

  • Page 132: Maintenance

    2. Click Restore or Default to restore the default settings. Clicking Default to restores all the parameters to default settings including the IP address and user information. Please use this button with caution. Figure 7-63 Restore Default Settings  Information Export © Hikvision...
  • Page 133 2. Click Browse to select the local configuration file and then click Import to start importing configuration file. You need to reboot the positioning system after importing configuration file. Figure 7-65 Import Configuration File 3. If the configuration file is encrypted, enter the password. Figure 7-66 File Decryption  Upgrading the System © Hikvision...
  • Page 134 Before you start: Please configure network storage for the speed dome or insert a memory card in the speed dome. Steps: 1. Enter the Log interface: Configuration >System > Maintenance > Log © Hikvision...
  • Page 135 Power Saving Mode: Select power saving mode as manual, and you can turn on and off the power saving function. Select power saving mode as scheduled, you can customize the schedule for enabling the automatic de-icing function.  Electric Current Limit: The function © Hikvision...
  • Page 136 1. Enter the VCA Resource Type interface: Configuration > Advanced Configuration > System > VCA Resource Type Figure 7-70 VCA Information 2. Check the checkbox to enable the VCA resource type. 3. The system reboots and the selected VCA resource will be enabled. © Hikvision...

  • Page 137: Security

    Configuring IP Address Filter Purpose: With this function on, the camera allows certain IP addresses whether to log in or not. Steps: 1. Enter IP Address Filter interface: Configuration > System > Security > IP Address Filter © Hikvision...
  • Page 138 Click Clear to delete all the IP addresses. 5. Click to save the settings. Configure Security Service Settings Steps: Enter the Security Service interface: Configuration> System > Security > Security Service Check the checkbox to enable the SSH function. © Hikvision...

  • Page 139: User Management

    The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. © Hikvision...
  • Page 140 1. Left-click to select the user from the list and click 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions. 4. Click to finish the user modification. © Hikvision...
  • Page 141 1. Left-click the user name you want to delete and click 2. Click on the pop-up dialogue box to delete the user. Online Users Enter the Online Users configuration interface: Configuration > System > User Management > Online Users © Hikvision...
  • Page 142 You can see the current users who are visiting the device through this interface. User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list. © Hikvision...

  • Page 143: Appendix

    Search online devices manually You can also click to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can © Hikvision...
  • Page 144  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Figure A.1.2 Modify Network Parameters © Hikvision...
  • Page 145 UD12015B...
