BM7W10RGBW

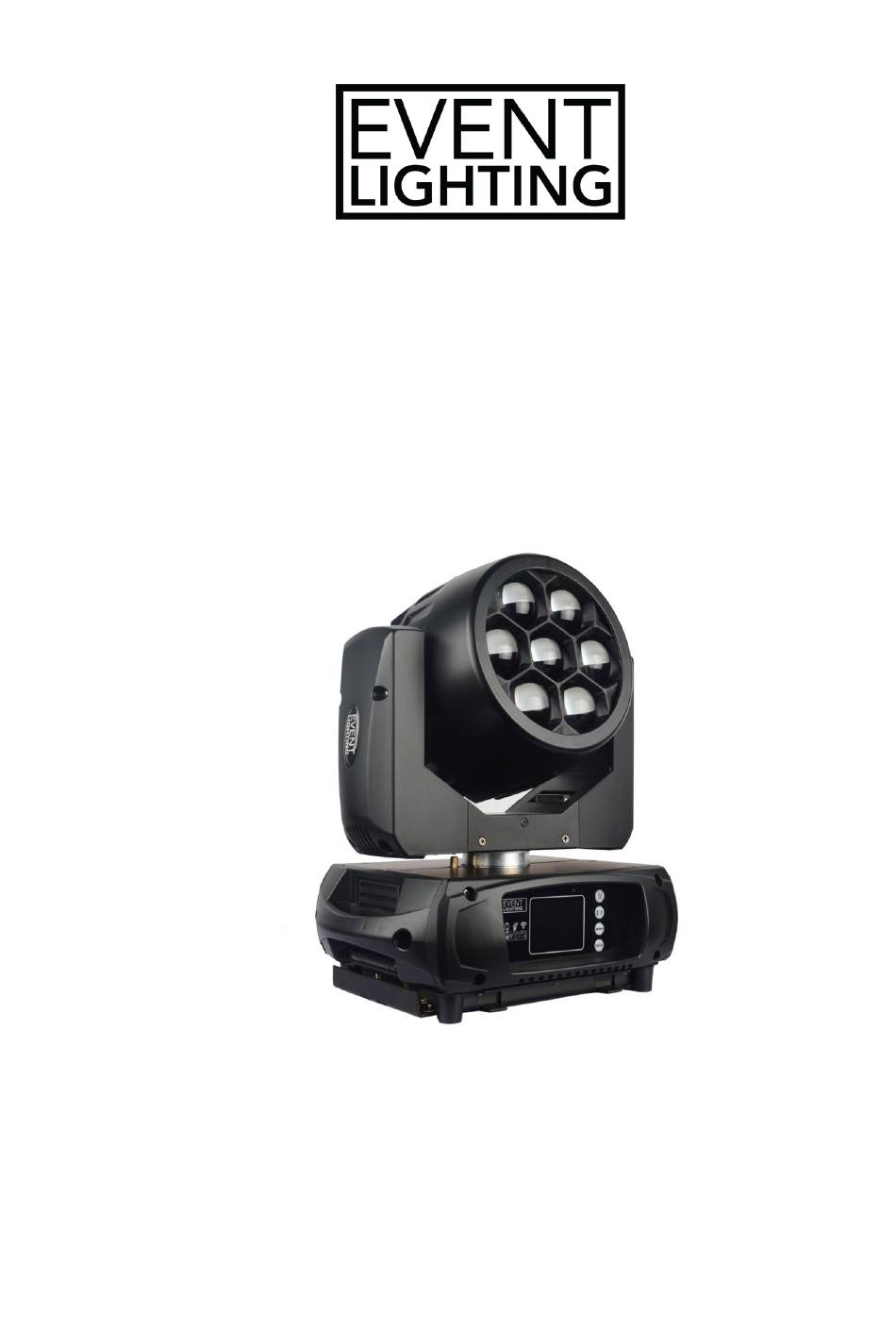

7x10W LED BATTERY WASH ZOOM HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V2.0
Advertisement
Table of Contents
Related Manuals for Event Lighting BM7W10RGBW
Summary of Contents for Event Lighting BM7W10RGBW
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Installation
Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au... -
Page 4: Product Appearance
Product Appearance 1 – DC In 2 – Charge Status Indicator 3 – DMX Out 4 – DMX In 5 – AC Power In 6 – WiFi Selection Button 7 – WiFi Signal Indicator 8 – Power Switch 9 – Fuse Dimensions www.event-lighting.com.au... -
Page 5: Lux Chart
Lux Chart Menu operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Mode down a level. www.event-lighting.com.au... - Page 6 Menu MENU DESCRIPTION DMX Address A001-AXXX DMX Address setting Channel Mode CH15 15 channel mode CH13 13 channel mode Auto Run Internal Program 1-8 Internal Program Function Mode State: Master/Alone Auto Run State Auto Run (On/off) Toggle Auto Run Music Control Internal Program 1-8 Internal Program State: Master/Alone...
-
Page 7: Dmx Chart
DMX Chart Channel Mode Min. Max. Name Function Standard Basic Dimmer Dimmer 0..100% Shutter closed Shutter open Strobe slow to fast Shutter open Shutter Pulse effect, slow to fast Shutter open Random strobe effect, slow to fast Shutter open Pan fine Fine control of pan movement Tilt Tilt... - Page 8 Pulse effect Macro Speed Slow to fast Enter power saving move Exit power saving mode Reset all motors Reset pan/tilt motor Reset zoom motor Internal program 1 Internal program 2 Internal program 3 Internal program 4 Special Function Internal program 5 Internal program 6 Internal program 7 Internal program 8...
-
Page 9: More Functions
Step 3: Set the BM7W10RGBW DMX start address AXXX Step 4: Switch off the BM7W10RGBW. Press and hold the ‘DMX select’ button whilst switching on the fixture. Once the fixture turns on the ‘wireless status’ light will be lit white and the unit will be in ‘setup mode’. -
Page 10: Technical Specifications
W-DMX Transmit Deleting All Receivers Blue Fast Flash Connecting with the receivers Blue Slow Flash No DMX input Blue Transmitting DMX Using EL wireless DMX mode Changing Channel Group Pressing the Button will show you the current channel group being used and pressing it again will cycle through the groups. -
Page 11: Warranty
Roadcase: (Optional) External Battery BMBATT20 (Optional:) 22.2V, 10Ah Auto Run: Up to 6 hrs Full Colour: Up to 4 hrs WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
