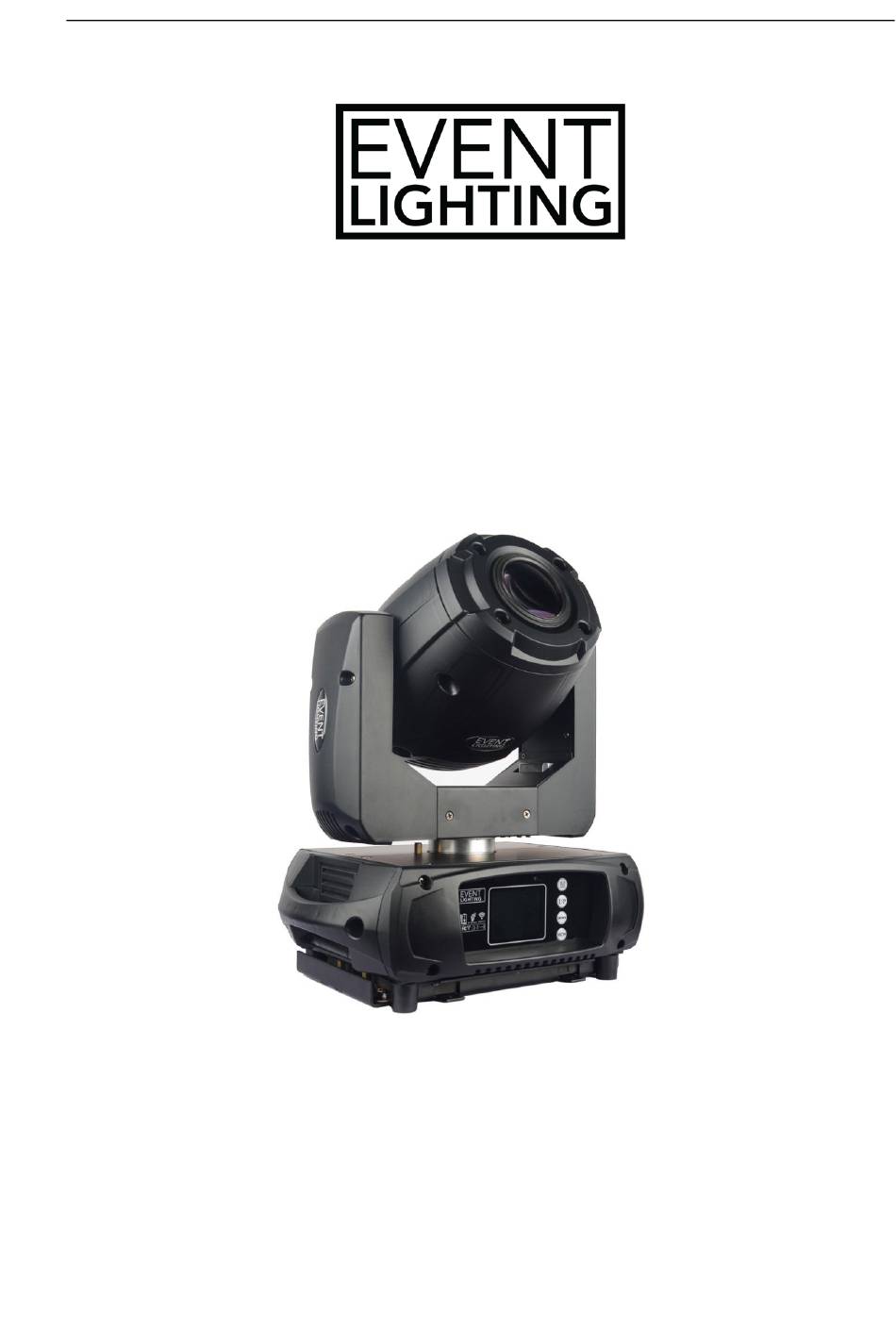

BM1S50W

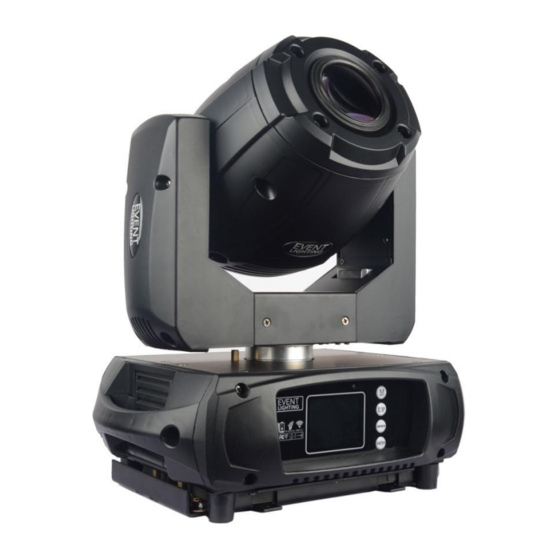

50W LED BATTERY PROFILE SPOT HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V2.0
www.event-lighting.com.au
Advertisement
Related Manuals for Event Lighting BM1S50W
Summary of Contents for Event Lighting BM1S50W
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Position
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Position
Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au... -
Page 4: Position
Product Appearance 1 – DC In 2 – Charge Status Indicator 3 – DMX Out 4 – DMX In 5 – AC Power In 6 – WiFi Selection Button 7 – WiFi Signal Indicator 8 – Power Switch 9 – Fuse www.event-lighting.com.au... -
Page 5: Position
Dimensions Lux Chart www.event-lighting.com.au... -
Page 6: Position
Colour Wheel Open Blue Green Yellow Magenta Dark Blue Orange www.event-lighting.com.au... -
Page 7: Table Of Contents
Rotating Gobo Wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Menu operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Mode down a level. www.event-lighting.com.au... -
Page 8: Internal Program
Menu MENU DESCRIPTION DMX Address A001-AXXX DMX Address setting Channel Mode CH13 13 channel mode CH11 11 channel mode Auto Run Internal Program 1-8 Internal Program Function Mode State: Master/Alone Auto Run State Auto Run (On/off) Toggle Auto Run Music Control Internal Program 1-8 Internal Program State: Master/Alone... - Page 9 DMX Chart Channel Mode Min. DMX Max. DMX Name Function Standard Basic Pan Fine Fine Control of Pan movement Tilt Tilt movement Tilt Fine Fine control of tilt movement Pan/tilt speed, fast to slow Blackout during pan/tilt movements Effect Blackout when colour and gobo wheel switching Open/white Colour 1 Colour 2...
- Page 10 Shutter open Pulse effect, slow to fast Shutter open Random strobe effect, slow to fast Shutter open Dimmer Dimmer 0%..100% Focus In (near) to out (far) Prism Forward spinning, slow to fast Enter power saving mode Exit power saving mode Reset all Reset pan/tilt Reset colour...
- Page 11 Step 3: Set the BM1S50W DMX start address AXXX Step 4: Switch off the BM1S50W. Press and hold the ‘DMX select’ button whilst switching on the fixture. Once the fixture turns on the ‘wireless status’ light will be lit white and the unit will be in ‘setup mode’.
- Page 12 W-DMX Transmit Deleting All Receivers Blue Fast Flash Connecting with the receivers Blue Slow Flash No DMX input Blue Transmitting DMX Using EL wireless DMX mode Changing Channel Group Pressing the Button will show you the current channel group being used and pressing it again will cycle through the groups.
- Page 13 Roadcase: (Optional) External Battery BMBATT20 (Optional:) 22.2V, 10Ah Auto Run: Up to 4 hours Full Dimmer: Up to 4 hours WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
