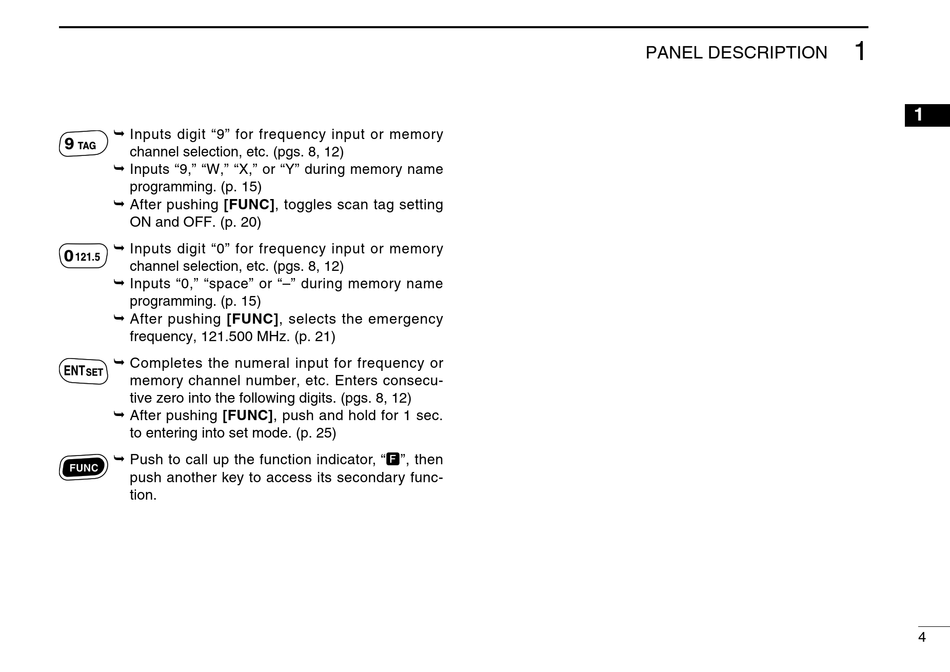

Icom IC-A14S Instruction Manual page 9

 Inputs digit "9" for frequency input or memory
channel selection, etc. (pgs. 8, 12)
 Inputs "9," "W," "X," or "Y" during memory name
programming. (p. 15)
 After pushing [FUNC], toggles scan tag setting
ON and OFF. (p. 20)
 Inputs digit "0" for frequency input or memory
channel selection, etc. (pgs. 8, 12)
 Inputs "0," "space" or "–" during memory name
programming. (p. 15)
 After pushing [FUNC], selects the emergency
frequency, 121.500 MHz. (p. 21)
 Completes the numeral input for frequency or
memory channel number, etc. Enters consecu-
tive zero into the following digits. (pgs. 8, 12)
 After pushing [FUNC], push and hold for 1 sec.
to entering into set mode. (p. 25)
 Push to call up the function indicator, "F", then
push another key to access its secondary func-
tion.
PANEL DESCRIPTION
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
4
