2.3.3 Overview of Parameter Configuration

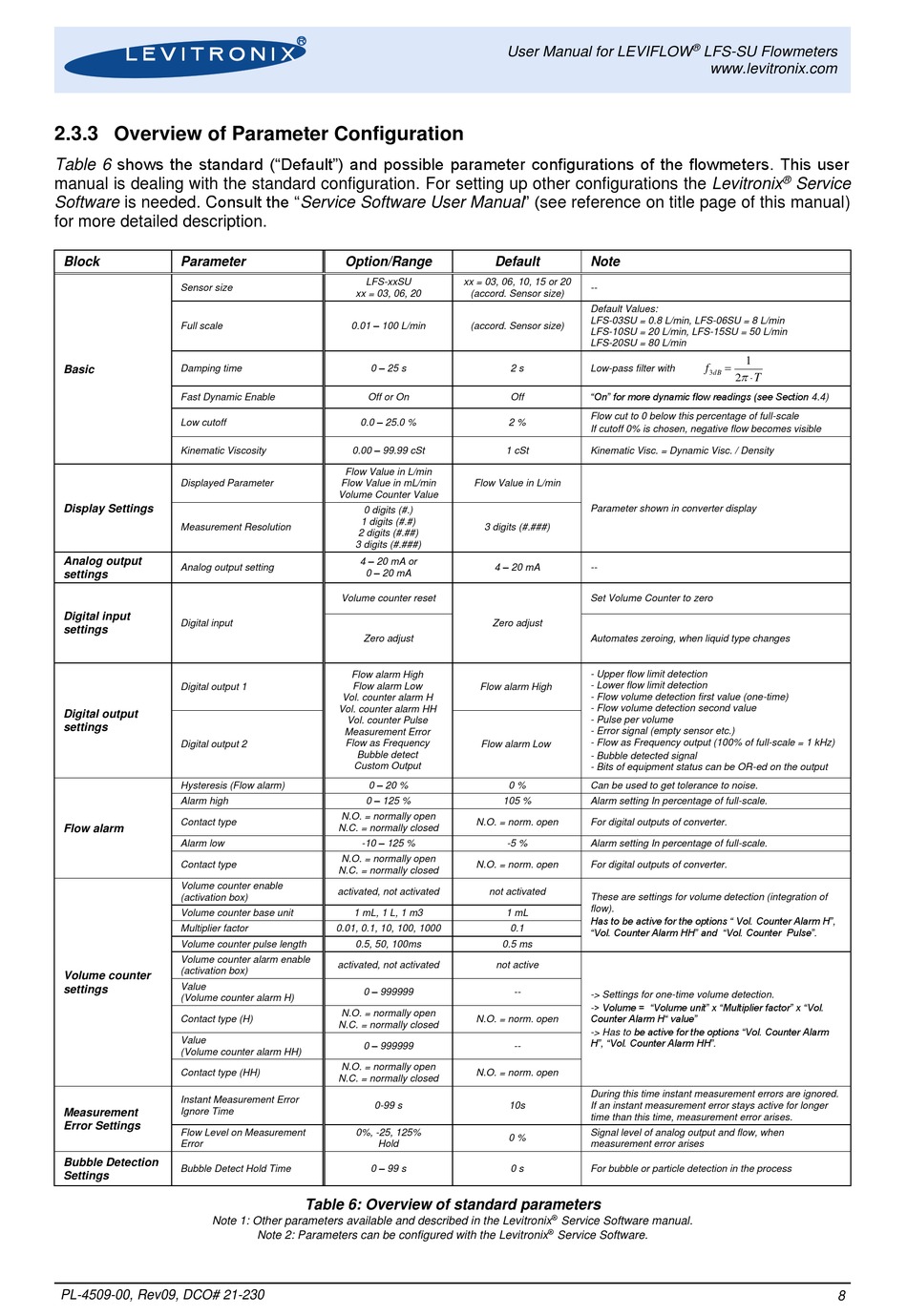

Table 6 shows the standard ("Default") and possible parameter configurations of the flowmeters. This user
manual is dealing with the standard configuration. For setting up other configurations the Levitronix
Software is needed. Consult the "Service Software User Manual" (see reference on title page of this manual)
for more detailed description.
Block Parameter
Sensor size
Full scale
Basic Damping time
Fast Dynamic Enable
Low cutoff
Kinematic Viscosity
Displayed Parameter
Display Settings
Measurement Resolution
Analog output
Analog output setting
settings
Digital input
Digital input
settings
Digital output 1
Digital output
settings
Digital output 2
Hysteresis (Flow alarm)
Alarm high
Contact type
Flow alarm
Alarm low
Contact type
Volume counter enable
(activation box)
Volume counter base unit
Multiplier factor
Volume counter pulse length
Volume counter alarm enable
(activation box)
Volume counter
Value
settings
(Volume counter alarm H)
Contact type (H)
Value
(Volume counter alarm HH)
Contact type (HH)
Instant Measurement Error
Ignore Time
Measurement
Error Settings
Flow Level on Measurement
Error
Bubble Detection
Bubble Detect Hold Time
Settings
Note 1: Other parameters available and described in the Levitronix
PL-4509-00, Rev09, DCO# 21-230
Option/Range
LFS-xxSU
xx = 03, 06, 20
0.01 – 100 L/min
0 – 25 s
Off or On
0.0 – 25.0 %
0.00 – 99.99 cSt
Flow Value in L/min
Flow Value in mL/min
Volume Counter Value
0 digits (#.)
1 digits (#.#)
2 digits (#.##)
3 digits (#.###)
4 – 20 mA or
0 – 20 mA
Volume counter reset
Zero adjust
Flow alarm High
Flow alarm Low
Vol. counter alarm H
Vol. counter alarm HH
Vol. counter Pulse
Measurement Error
Flow as Frequency
Bubble detect
Custom Output
0 – 20 %
0 – 125 %
N.O. = normally open
N.C. = normally closed
-10 – 125 %
N.O. = normally open
N.C. = normally closed
activated, not activated
1 mL, 1 L, 1 m3
0.01, 0.1, 10, 100, 1000
0.5, 50, 100ms
activated, not activated
0 – 999999
N.O. = normally open
N.C. = normally closed
0 – 999999
N.O. = normally open
N.C. = normally closed
0-99 s
0%, -25, 125%
Hold
0 – 99 s
Table 6: Overview of standard parameters
Note 2: Parameters can be configured with the Levitronix
User Manual for LEVIFLOW
Default Note
xx = 03, 06, 10, 15 or 20
--
(accord. Sensor size)
Default Values:
LFS-03SU = 0.8 L/min, LFS-06SU = 8 L/min
(accord. Sensor size)
LFS-10SU = 20 L/min, LFS-15SU = 50 L/min
LFS-20SU = 80 L/min
2 s Low-pass filter with
"On" for more dynamic flow readings (see Section 4.4)
Off
Flow cut to 0 below this percentage of full-scale
2 %
If cutoff 0% is chosen, negative flow becomes visible
1 cSt Kinematic Visc. = Dynamic Visc. / Density
Flow Value in L/min
Parameter shown in converter display
3 digits (#.###)
4 – 20 mA
--
Set Volume Counter to zero
Zero adjust
Automates zeroing, when liquid type changes
- Upper flow limit detection
- Lower flow limit detection
Flow alarm High
- Flow volume detection first value (one-time)
- Flow volume detection second value
- Pulse per volume
- Error signal (empty sensor etc.)
- Flow as Frequency output (100% of full-scale = 1 kHz)
Flow alarm Low
- Bubble detected signal
- Bits of equipment status can be OR-ed on the output
0 % Can be used to get tolerance to noise.
105 % Alarm setting In percentage of full-scale.
N.O. = norm. open For digital outputs of converter.
-5 % Alarm setting In percentage of full-scale.
N.O. = norm. open For digital outputs of converter.
not activated
These are settings for volume detection (integration of
flow).
1 mL
Has to be active for the options " Vol. Counter Alarm H",
0.1
"Vol. Counter Alarm HH" and "Vol. Counter Pulse".
0.5 ms
not active
--
-> Settings for one-time volume detection.
-> Volume = "Volume unit" x "Multiplier factor" x "Vol.
Counter Alarm H" value"
N.O. = norm. open
-> Has to be active for the options "Vol. Counter Alarm
H", "Vol. Counter Alarm HH".
--
N.O. = norm. open
During this time instant measurement errors are ignored.
10s If an instant measurement error stays active for longer
time than this time, measurement error arises.
Signal level of analog output and flow, when
0 %
measurement error arises
0 s For bubble or particle detection in the process

Service Software manual.

Service Software.
®
LFS-SU Flowmeters
