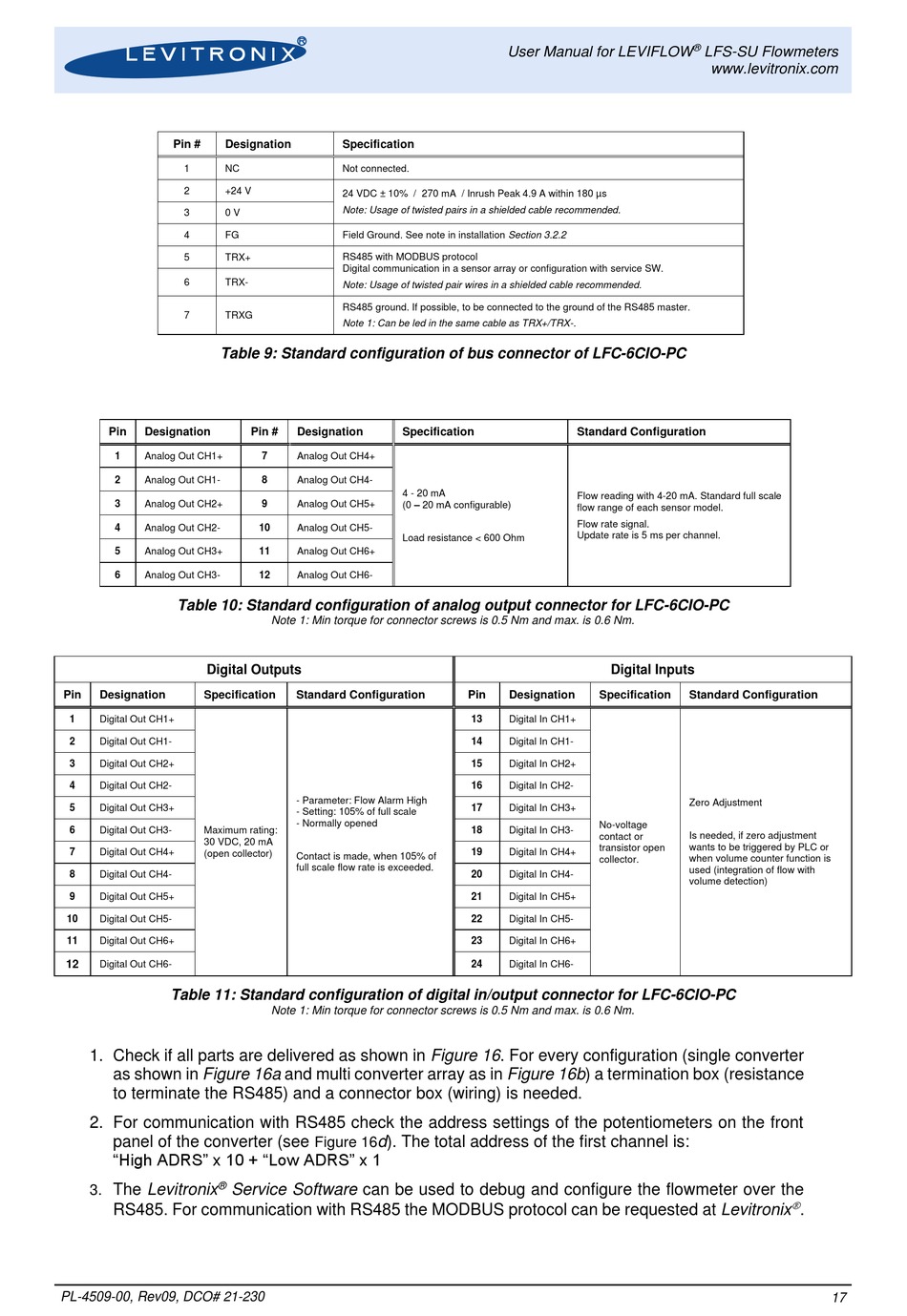

Levitronix LEVIFLOW LFS-SU User Manual page 17

Pin # Designation
1 NC
2 +24 V
3 0 V
4 FG
5 TRX+
6 TRX-
7 TRXG
Table 9: Standard configuration of bus connector of LFC-6CIO-PC
Pin Designation
1 Analog Out CH1+
2 Analog Out CH1-
3 Analog Out CH2+
4 Analog Out CH2-
5 Analog Out CH3+
6 Analog Out CH3-
Table 10: Standard configuration of analog output connector for LFC-6CIO-PC
Digital Outputs
Pin Designation Specification
1 Digital Out CH1+
2 Digital Out CH1-
3 Digital Out CH2+
4 Digital Out CH2-
5 Digital Out CH3+
6 Digital Out CH3- Maximum rating:
30 VDC, 20 mA
7 Digital Out CH4+
(open collector)
8 Digital Out CH4-
9 Digital Out CH5+
10 Digital Out CH5-
11 Digital Out CH6+
12
Digital Out CH6-
Table 11: Standard configuration of digital in/output connector for LFC-6CIO-PC
1. Check if all parts are delivered as shown in Figure 16. For every configuration (single converter
as shown in Figure 16a and multi converter array as in Figure 16b) a termination box (resistance
to terminate the RS485) and a connector box (wiring) is needed.
2. For communication with RS485 check the address settings of the potentiometers on the front
panel of the converter (see
"High ADRS" x 10 + "Low ADRS" x 1
®
The Levitronix Service Software can be used to debug and configure the flowmeter over the
3.
RS485. For communication with RS485 the MODBUS protocol can be requested at Levitronix
PL-4509-00, Rev09, DCO# 21-230
Specification
Not connected.
24 VDC ± 10% / 270 mA / Inrush Peak 4.9 A within 180 µs
Note: Usage of twisted pairs in a shielded cable recommended.
Field Ground. See note in installation Section 3.2.2
RS485 with MODBUS protocol
Digital communication in a sensor array or configuration with service SW.
Note: Usage of twisted pair wires in a shielded cable recommended.
RS485 ground. If possible, to be connected to the ground of the RS485 master.
Note 1: Can be led in the same cable as TRX+/TRX-.
Pin # Designation Specification
7 Analog Out CH4+
8 Analog Out CH4-
4 - 20 mA
9 Analog Out CH5+ (0 – 20 mA configurable)
10 Analog Out CH5-
Load resistance < 600 Ohm
11 Analog Out CH6+
12 Analog Out CH6-
Note 1: Min torque for connector screws is 0.5 Nm and max. is 0.6 Nm.
Standard Configuration
- Parameter: Flow Alarm High
- Setting: 105% of full scale
- Normally opened
Contact is made, when 105% of
full scale flow rate is exceeded.
Note 1: Min torque for connector screws is 0.5 Nm and max. is 0.6 Nm.
d). The total address of the first channel is:
Figure 16
User Manual for LEVIFLOW
Standard Configuration
Flow reading with 4-20 mA. Standard full scale
flow range of each sensor model.
Flow rate signal.
Update rate is 5 ms per channel.
Digital Inputs
Pin Designation Specification
13 Digital In CH1+
14 Digital In CH1-
15 Digital In CH2+
16 Digital In CH2-
17 Digital In CH3+
No-voltage
18 Digital In CH3-
contact or
transistor open
19 Digital In CH4+
collector.
20 Digital In CH4-
21 Digital In CH5+
22 Digital In CH5-
23 Digital In CH6+
24 Digital In CH6-
®
LFS-SU Flowmeters
www.levitronix.com
Standard Configuration
Zero Adjustment
Is needed, if zero adjustment
wants to be triggered by PLC or
when volume counter function is
used (integration of flow with
volume detection)

.
