2.5.3 Dimensions of Adaptor Cables

Mounting Panel Dimensions

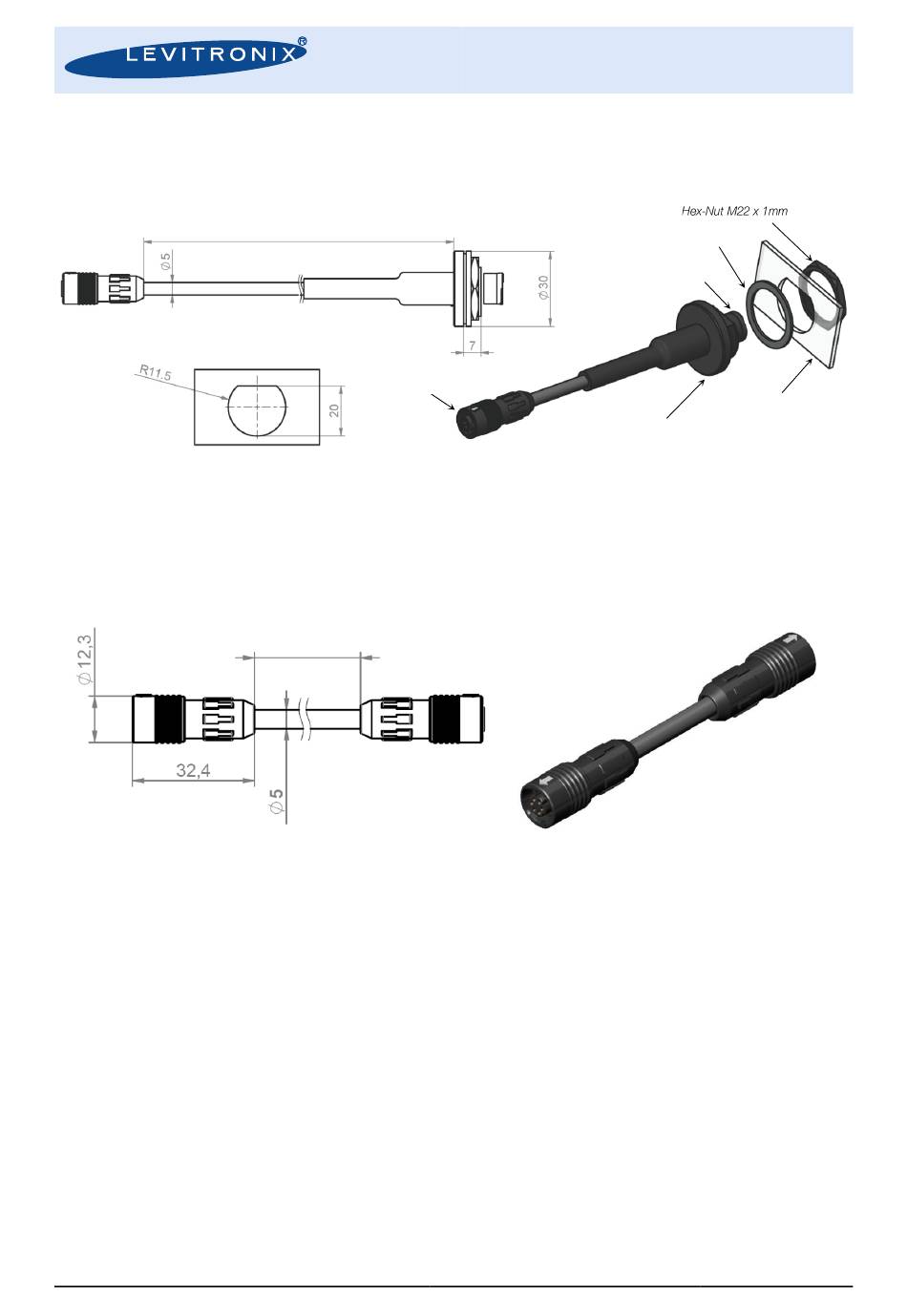

Figure 11: Dimensions of wall mountable extension cable LFE-C.2
(Can be used for electrical cabinet mounting. Minimum bending radius > 10 x cable radius)
PL-4509-00, Rev09, DCO# 21-230
Length = 1,3,6 m
Converter
Connector
Length = 3m
Figure 12: Dimensions of interconnect cable LFI-C.1
(Minimum bending radius > 10 x cable radius)
User Manual for LEVIFLOW
Sealing Gasket
Delivered with protective
dust cap on connector)
Wall-mountable Adaptor
Connector
Hirose Plug Male
HR30-6P-6P
®
LFS-SU Flowmeters
www.levitronix.com
Mounting Wall
Connector
Hirose Plug Female
HR30-6P-6S
12
