4.2.4 Operation with Levitronix

For debugging, data collection and configuration of the flowmeter system the Levitronix
®
available at Levitronix
manual (see reference on title page of this manual). An approved USB to RS485 adaptor with the according
connection cable can be ordered according to the information in Table 3.
Flow Out
Interconnect Cable
Various lengths.
Direct connection possible.

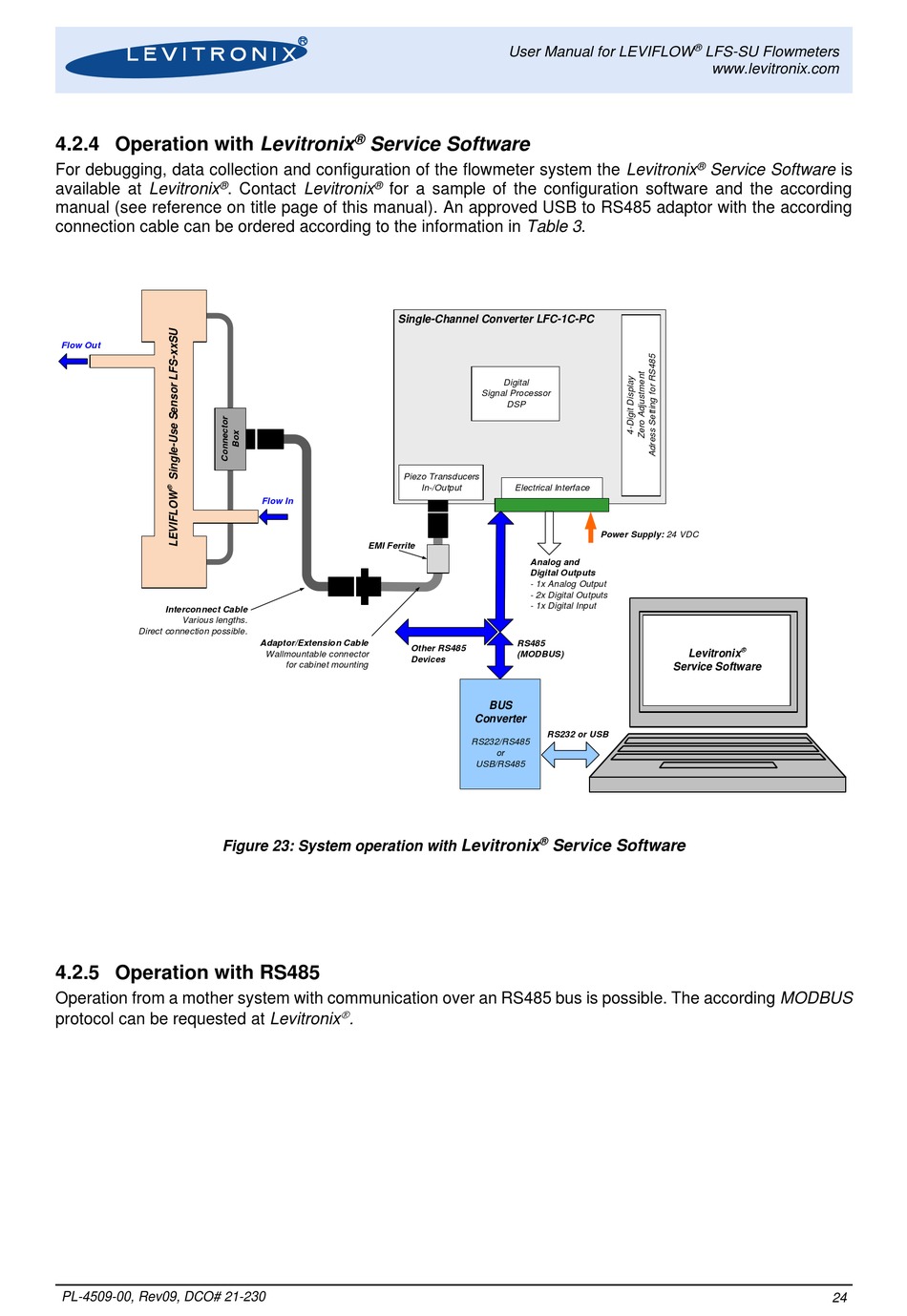

Figure 23: System operation with

4.2.5 Operation with RS485

Operation from a mother system with communication over an RS485 bus is possible. The according MODBUS
protocol can be requested at Levitronix
PL-4509-00, Rev09, DCO# 21-230
®

Service Software

®
. Contact Levitronix for a sample of the configuration software and the according
Single-Channel Converter LFC-1C-PC
Flow In
EMI Ferrite
Adaptor/Extension Cable
Wallmountable connector
for cabinet mounting

.
User Manual for LEVIFLOW
Digital
Signal Processor
DSP
Piezo Transducers
In-/Output Electrical Interface
Analog and
Digital Outputs
- 1x Analog Output
- 2x Digital Outputs
- 1x Digital Input
RS485
Other RS485
(MODBUS)
Devices
BUS
Converter
RS232 or USB
RS232/RS485
or
USB/RS485
®
Levitronix Service Software
®
LFS-SU Flowmeters
www.levitronix.com
®
Service Software is
Power Supply: 24 VDC
®
Levitronix
Service Software
24
