2.5.2 Dimensions of Converters
100-30374
LFC-1C-PC

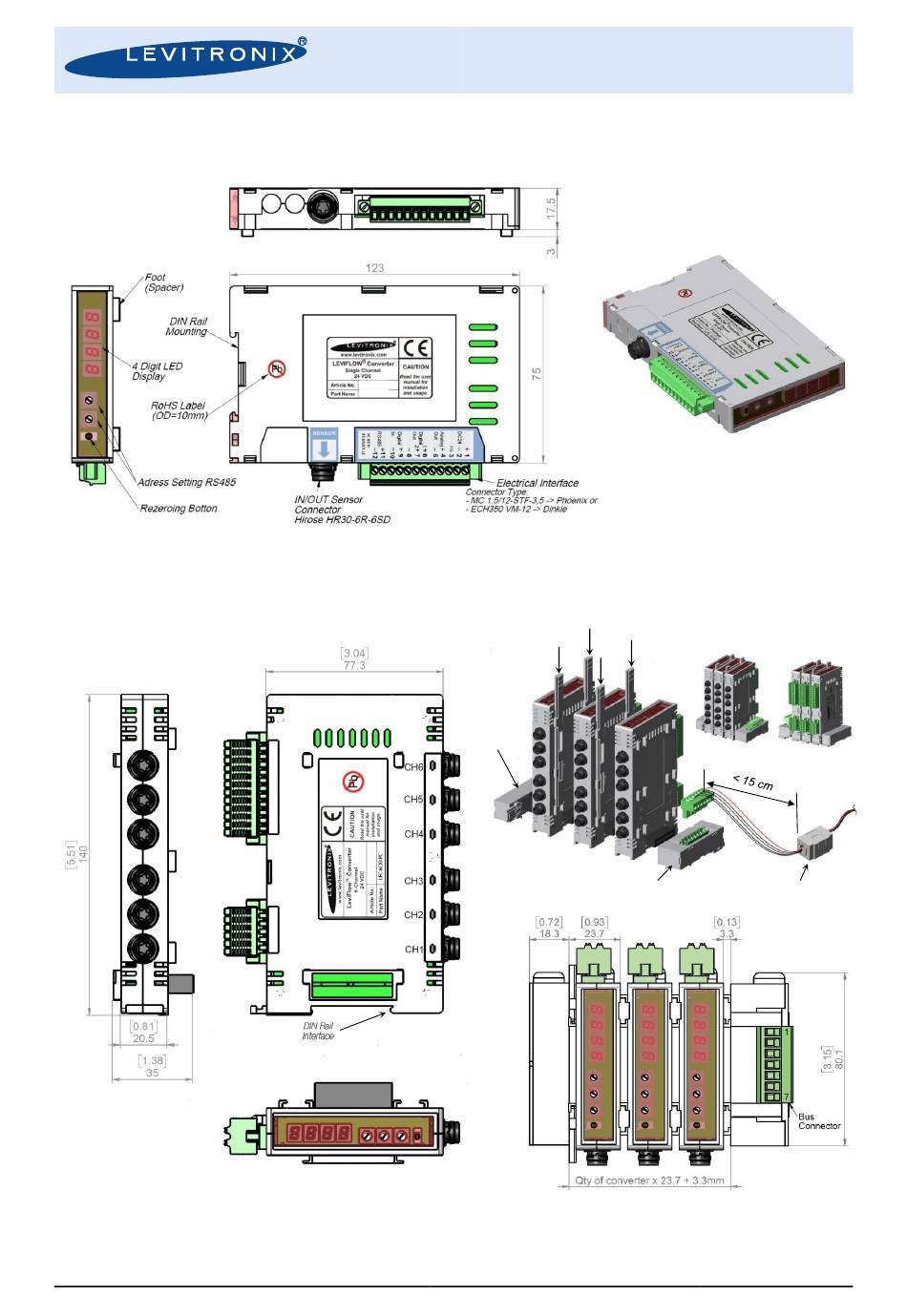

Figure 9: Dimensions and layout of interfaces of converter LFC-1C-PC
Termination
Box)
Connector Box
(RS485 and Supply Bus)
EMI Ferrite
Figure 10: Dimensions and stacking concept of multi-channel converter LFC-6CIO-PC
PL-4509-00, Rev09, DCO# 21-230
