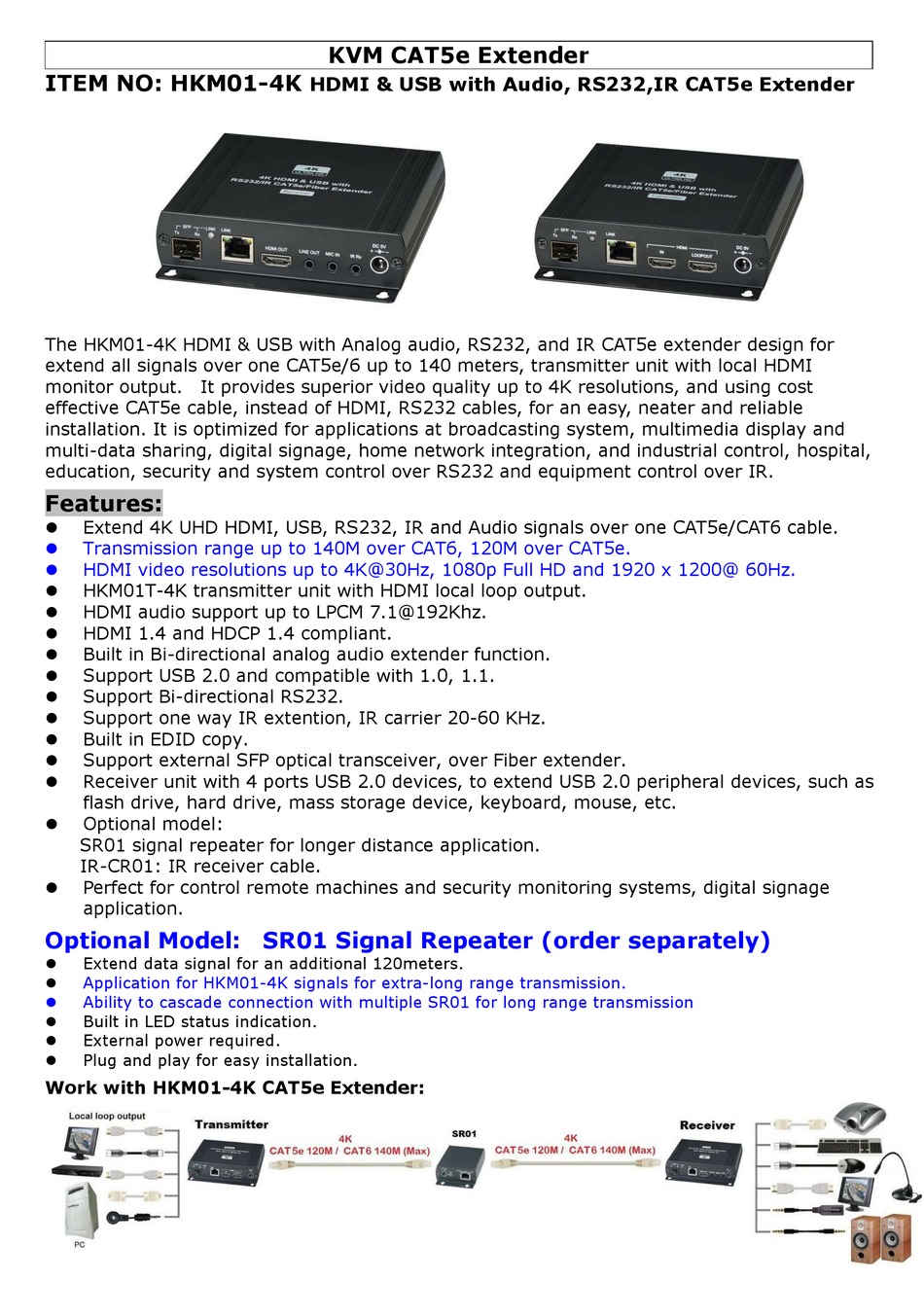

SC&T HKM01T-4K Manual

ITEM NO: HKM01-4K

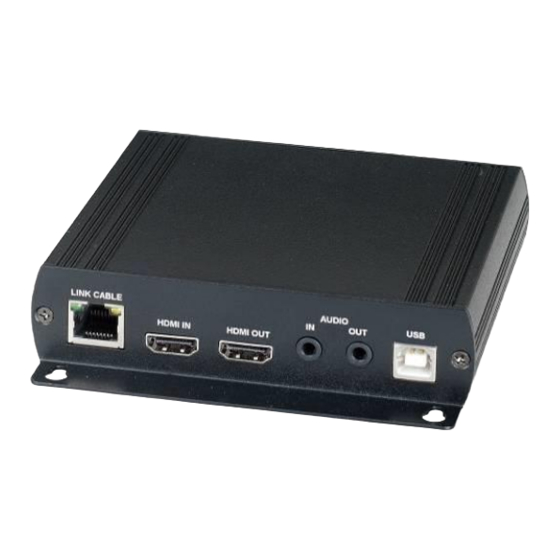

The HKM01-4K HDMI & USB with Analog audio, RS232, and IR CAT5e extender design for
extend all signals over one CAT5e/6 up to 140 meters, transmitter unit with local HDMI
monitor output. It provides superior video quality up to 4K resolutions, and using cost
effective CAT5e cable, instead of HDMI, RS232 cables, for an easy, neater and reliable
installation. It is optimized for applications at broadcasting system, multimedia display and
multi-data sharing, digital signage, home network integration, and industrial control, hospital,
education, security and system control over RS232 and equipment control over IR.
Features:
Extend 4K UHD HDMI, USB, RS232, IR and Audio signals over one CAT5e/CAT6 cable.

Transmission range up to 140M over CAT6, 120M over CAT5e.

HDMI video resolutions up to 4K@30Hz, 1080p Full HD and 1920 x 1200@ 60Hz.

HKM01T-4K transmitter unit with HDMI local loop output.

HDMI audio support up to LPCM 7.1@192Khz.

HDMI 1.4 and HDCP 1.4 compliant.

Built in Bi-directional analog audio extender function.

Support USB 2.0 and compatible with 1.0, 1.1.

Support Bi-directional RS232.

Support one way IR extention, IR carrier 20-60 KHz.

Built in EDID copy.

Support external SFP optical transceiver, over Fiber extender.

Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as

flash drive, hard drive, mass storage device, keyboard, mouse, etc.
Optional model:

SR01 signal repeater for longer distance application.
IR-CR01: IR receiver cable.
Perfect for control remote machines and security monitoring systems, digital signage

application.
Optional Model: SR01 Signal Repeater (order separately)
Extend data signal for an additional 120meters.

Application for HKM01-4K signals for extra-long range transmission.

Ability to cascade connection with multiple SR01 for long range transmission

Built in LED status indication.

External power required.

Plug and play for easy installation.

Work with HKM01-4K CAT5e Extender:
KVM CAT5e Extender
HDMI & USB with Audio, RS232,IR CAT5e Extender
