80 –

Heating

1 Summaries of components, disas‐
sembling and assembling the heater
unit
(SRL000577; Edition 06.2013)
⇒ "1.1 Summary of components - interior", page 1
⇒ "1.2 Assembly overview – heater unit", page 3
⇒ "1.3 Disassembling and assembling the heater unit",
page 4
⇒ "1.4 Summary of components: Heat exchanger, Heating ele‐
ment for air auxiliary heating Z35 ", page 6

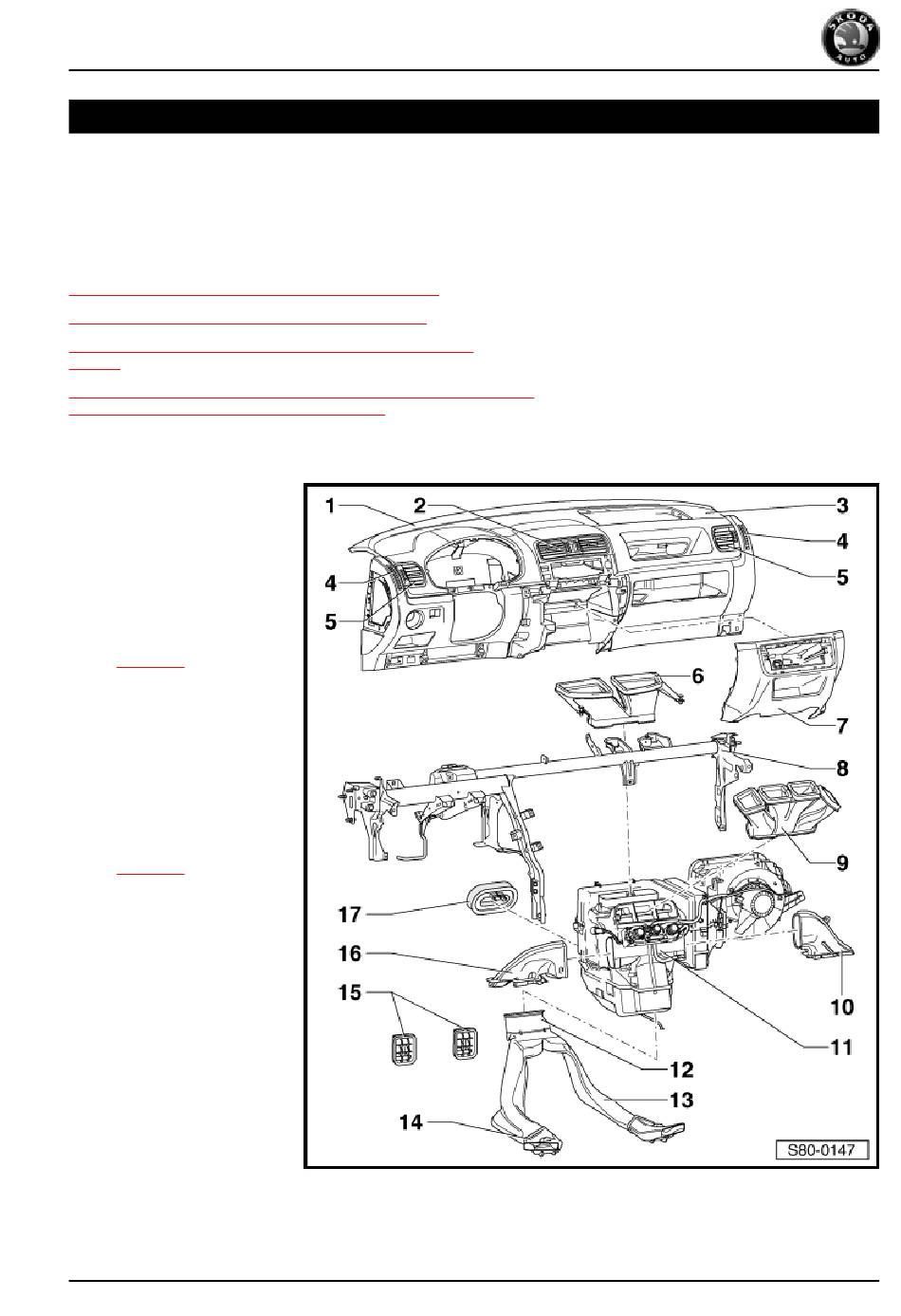

1.1

Summary of components - interior

1 - Defrost vent
❑ integrated in dash panel
2 - Centre dash panel vent
❑ with warning light switch
and warning light for
front passenger airbag
switch-off function
❑ removing and installing
⇒ page 7
3 - Dash panel
❑ Removing and installing
⇒ Body Work; Rep. gr.
70
4 - Side window vent
❑ integrated in dash panel
5 - Outer dash panel vent
❑ removing and installing
⇒ page 8
6 - Intermediate piece for de‐
froster duct
❑ attached with securing
clips to the heater unit
❑ to remove, remove dash
panel
7 - Centre dash pane
❑ Removing and installing
⇒ Body Work; Rep. gr.
70
8 - Central pipe
❑ Removing and installing
⇒ Body Work; Rep. gr.
70
9 - Intermediate piece for dash panel vents
❑ attached with brackets to the heater unit
❑ to remove, remove dash panel
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤
Heating, Air conditioning - Edition 06.2013

1. Summaries of components, disassembling and assembling the heater unit
