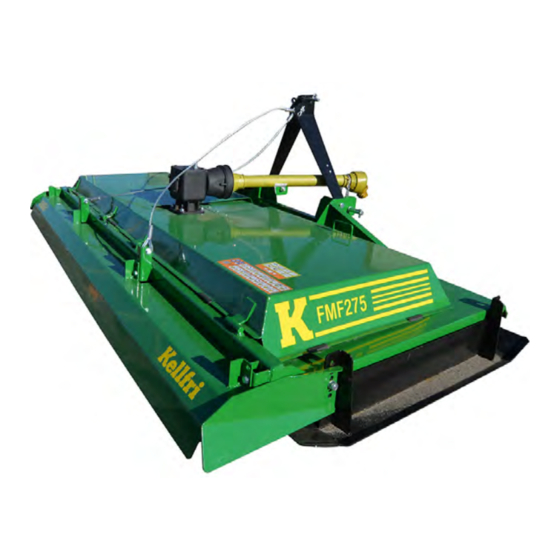

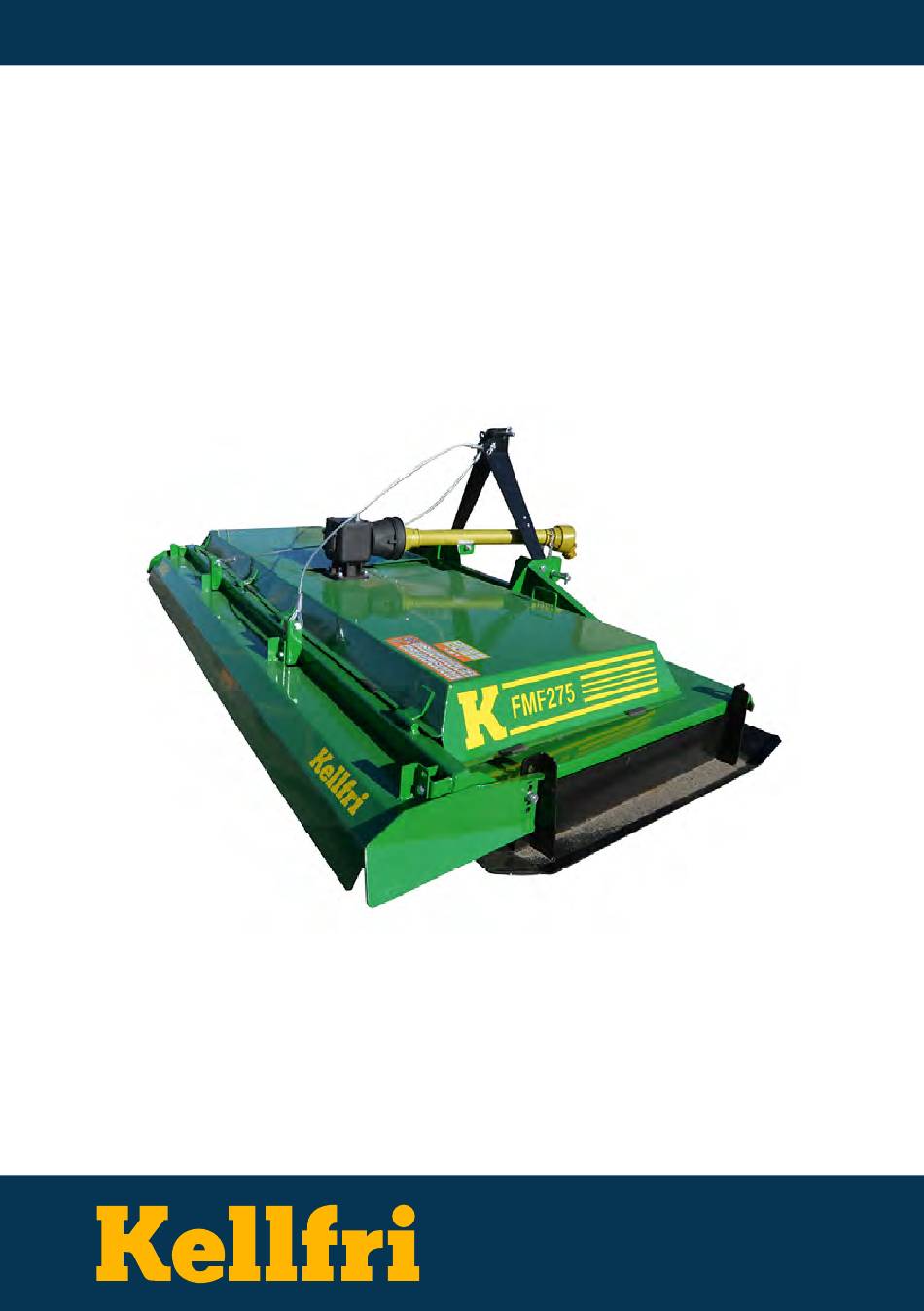

- Page 1 35-FMF275 PASTURE TOPPER Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, ag- riculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
• Robust design • Height adjustable wear skids Kellfri’s pasture topper is the specialist on large and small grasslands. The pasture topper is designed for efficient cutting and topping of grass and fields in mixed terrain. Its powerful square profile frame gives it good durability and strength. The pasture topper is a versatile, robust and dependable grassland topper with 6 bolted, specially shaped blades that fold out of the way in the event of collision with obstacles. -
Page 4: General Safety Information
If the instruction manual gets damaged or in any other way cannot be used, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel: +46 511 242 50 The general safety instructions can also be downloaded from Kellfri’s website:www.kellfri.se. -
Page 5: Product Safety Information
PRODUCT SAFETY INFORMATION Kellfri’s pasture topper is designed to work efficiently at 540 rpm. Make sure that the tractor’s power take off is set to 540 rpm. The machine may only be used for mowing grass. In addition, the machine should only be used with a suitable tractor (see product specifications) and pow- ered by a suitable PTO shaft. -
Page 6: Work Station
WORK STATION: The driver must remain seated in the driver’s seat throughout the work. If the operator needs to leave the tractor, the PTO must be disengaged, the tractor’s engine switched off and the parking brake engaged. NEVER OPERATE THE HYDRAULICS WHEN THE TRACTOR IS SWITCHED OFF Warning! Things to remember when operating equipment with a PTO shaft The transmission to the gearbox is protected both by the PTO drive shaft and by the shear bolt. -
Page 7: Position Of The Warning Labels
If apart with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. Explanation of symbols on next page 25 m STOP manual.kellfri.se STOP Table of Contents →... -
Page 8: Symbol& Explanation
SYMBOL EXPLANATION SYMBOL EXPLANATION SYMBOL EXPLANATION WARNING! Risk of Read the instruction crushing! Do not Warning: rotating open the guard manual before start- PTO shaft - crushing ing work! before all moving risk! parts have stopped. STOP WARNING! Risk of crushing! Ejection warning - WARNING! Be aware... -
Page 9: Personal Protection
PERSONAL PROTECTION Always wear suitable clothing and shoes. Do not wear loose clothing or jewellery while work- ing with the machine or the product. Long hair should be tied up when working with equip- ment that has moving parts. Use protective gloves to avoid the risk of burns if hot surfaces such as exhaust pipes are touched, and to avoid oil and petrol getting in contact with the skin. -
Page 10: Before Use
BEFORE USE Carefully read the safety instructions and the operating instructions. Make sure that you un- derstand the safety instructions, operating instructions and warning decals. Use common sense and suitable personal protective equipment when using the product. Always check the performance of the machine combination to be used. It is important that these are compatible and work satisfactorily together. -
Page 11: Risks And Hazards During Use
RISKS AND HAZARDS ASSOCIATED WITH THE USE OF GROUNDCARE MACHINERY Risk of crushing Observers can be injured when the machine is lowered in the cutting position. Pasture toppers have crushing points around the hinge areas and between the three-point linkage and the main body. -
Page 12: Machines/Equipment Connected To Hydraulics
Slipping and fall accidents Accidents involving slipping and falling are often a result of: • Slippery conditions • Uneven steps and work platforms. The risk of slipping and falling can be reduced considerably by exercising good judgement. All unprotected rotating machine parts are a potential for accidents. Accidents usually occur when loose-fitting clothing or long hair is caught and wrapped around rotating parts, such as PTO shafts or drive shafts on the machine. -
Page 13: Use/Operation
USE/OPERATION Only those who understand the safety instructions and the operating instructions may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct and only use it in the way described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 14: Connecting
CONNECTING • Connect the machine to the tractor’s rear three-point linkage. • Connect the PTO shaft. Secure the chain properly. • Ready for use. AFTER USE • Parking is not allowed with the equipment above the ground, but with the equipment resting on the ground. -
Page 15: Service Intervals/Maintenance
SERVICE INTERVALS/MAINTENANCE • Check the oil level before each use. • Change the oil regularly, after each 100 hours of operation. Position the machine as level as possible, check the oil level in the gearbox, top up if necessary with 80W-90 gearbox oil through the oil filler plug as indicated. Check the correct level in the oil level screw as shown in the illustration below. -
Page 16: Blades
BLADES The blades must be checked after every 50 hours of operation or every time the rotors are removed from the machine. Check the blades carefully to ensure that they are in good condi- tion, bent (A), worn (B) or (C) cracked blades must be replaced. ADJUSTMENT BOLTS FASTENING BOLTS BELT ADJUSTMENT... -
Page 17: Service
SERVICE INTERVAL MEASURE Flails Before each use Replace all defective flails. Sharp blades give better results. When replacing blades, tighten bolts fully. While operating Listen out for noises After each use Checking Gearbox Before each use Check the level of the Oil type: Gearbox oil 80W-90 Quantity: 0.7 l 50 hours of operation First oil change... -
Page 18: Spare Parts 35-Fmf275
← Table of Contents... -
Page 19: Spare Parts 35-Fmf275
Table of Contents →... -
Page 20: Assembly
ASSEMBLY 1. Open the protective hood on the pasture topper and collect loose parts. 2. Mount the 3-point tower 3. Connect the pasture topper to the tractor’s 3-point linkage 4. Tension the stabilisation wires. 5. Connect the gear to the tractor’s power take-off. 6. -
Page 21: Illustrations
Table of Contents →... - Page 22 ← Table of Contents...
-
Page 23: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 24: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
