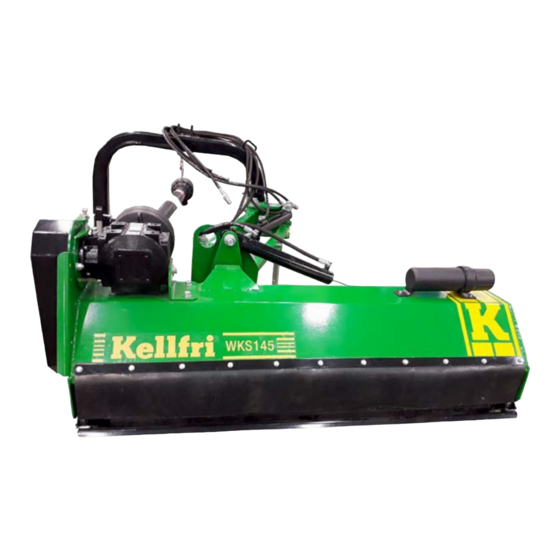

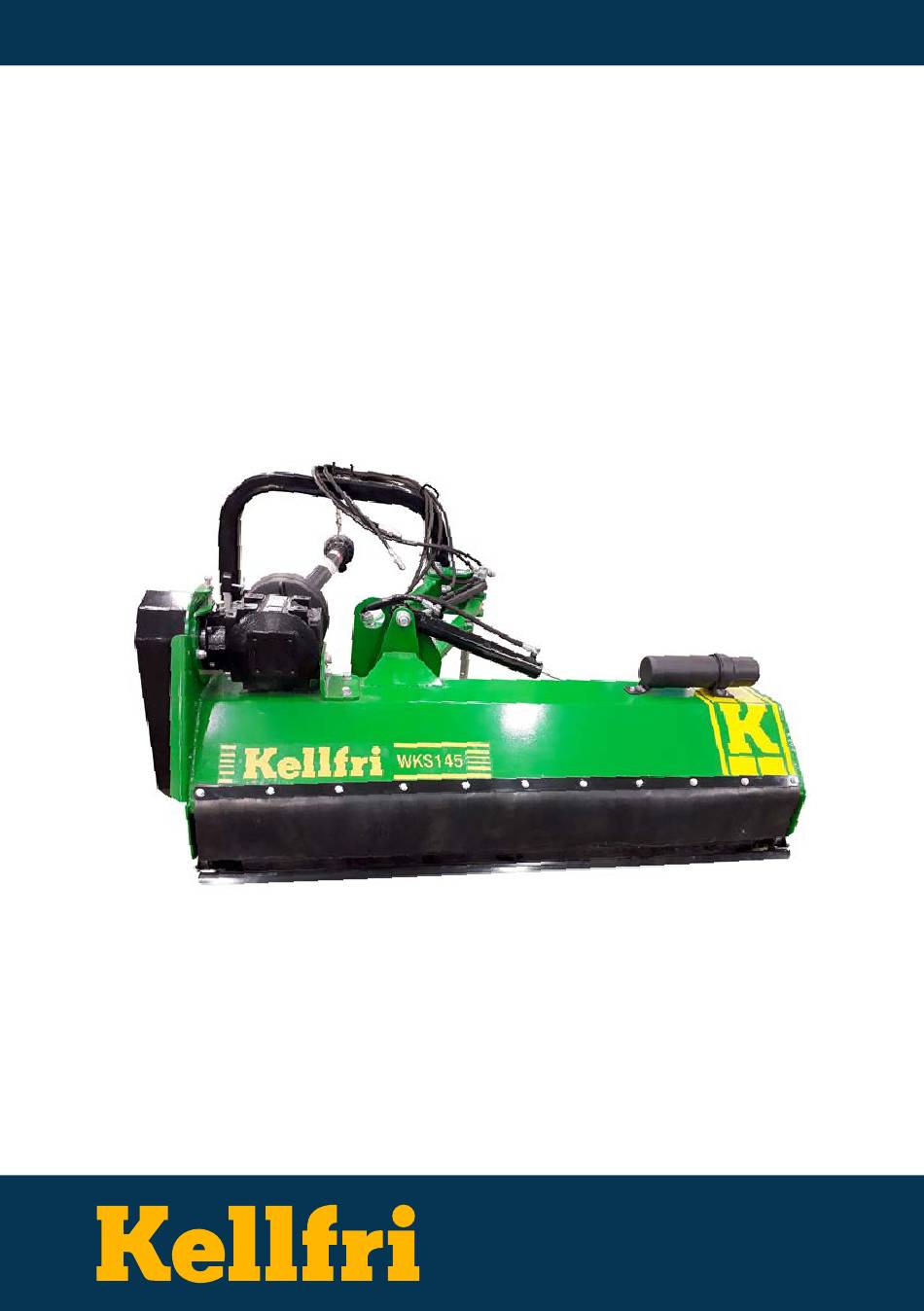

- Page 1 35-WKS145 VERGE FLAIL MOWER Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, ag- riculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, op- erating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country dwellers with stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are dam- aged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511 242 50 The safety instructions can also be downloaded from Kellfri’s website: www.kellfri.co.uk... -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct and only use it in the way described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: When Using Machine/Equipment Connected To Tractor
FOR USING MACHINE/EQUIPMENT CONNECTED TO TRACTOR PAY ATTENTION TO THE FOLLOWING: • Carefully read the machine's operating manual before using the machine! It is important that you understand the directions in the manual. • Keep the work area clear of children and other people. Moving parts increase the risk of accidents. -
Page 9: Machines/Equipment Connected To Hydraulics
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. •... -
Page 10: Risks And Hazards Associated With The Use Of Groundcare Machinery
RISKS AND HAZARDS ASSOCIATED WITH THE USE OF GRASSLAND MACHINERY Risk of crushing Observers can be injured when the machine is lowered in the cutting position. Pasture toppers have crush- ing points around the hinge areas and between the 3-point linkage and the main body. Respect the risk zone of 15 m! Rotating blades WARNING! Any person can risk injury by putting their hands or feet under the machine when it is lifted... - Page 11 Drive safely on public roads • Always follow traffic safety rules on public roads, and following the regulations applying to driving a tractor with towed equipment on a public road. • Check that reflectors, warning signals and/or warning flags indicating protruding equip- ment is fitted to the machine or tractor.
-
Page 12: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 13: Chemicals
CHEMICALS To maximise the service life of a product/equipment, maintenance - and not least preventive maintenance - is important, and this is largely what greases and oils do. Carefully read the operating manuals for your new products or equipment to ensure correct maintenance and service life and that the warranty remains valid! Lubricating grease First aid measures. -
Page 14: Parts
PARTS Washer 6 mm 3 pcs M6x20 3 pcs Lock washer 6 mm 3 pcs ASSEMBLY 1. Loosen the bolts/nuts on the articulated boom. 2. Insert the articulated booms. Use a lifting device to assist you with the assembly. 3. Fit the articulated boom with the bolts/nuts. - Page 15 1. Loosen the bolts/nuts and pin on the articulated boom. 2. Position the 3-point linkage attachment. Use a lifting device to assist you with the assembly. 3. Install the 3-point linkage attachment with the bolts/nuts. Lock with pin.
- Page 16 Washer 6 mm M6x20 Storage for screws, docu- ments, small tools etc. Lock washer 6 mm Secure with the chain. Route the hydraulic hoses through the eyelet on the 3-point linkage attachment. Check that the hoses have no sharp bends or can be exposed to abrasion. Important! Retighten ALL bolts/nuts when the product is assembled.
-
Page 17: Switching On And Off
SWITCHING ON AND OFF • Connect the machine to the tractor's rear 3-point linkage. • Connect the PTO shaft. Adjust the length if required. (See Instruction p.30). • Secure the chain properly. • Ready for use. • Switch off the tractor engine. •... -
Page 18: Lubrication Points
GREASE POINTS... -
Page 19: Flails
FLAILS WARNING! Never mount different types of flails on the mower. When the flails have been mounted, always check the tightness of the flail screws. Ensure that all screws are fully tightened. Mounting of hammer flail onto verge flail mower. -
Page 20: Gearbox
GEARBOX OIL REFILLING TRANSMISSION OIL 80W-90 (1.2 L) LEVEL PLUG DRAINAGE PLUG BELT ADJUSTMENT Release the fastening bolts (see illustration), now adjust the adjustment bolt until the belts are adequately tightened. FASTENING BOLT CHECK BELT TENSION REGULARLY The belt should move 20 mm under pressure (10 mm on each side) Belt BX 1016Li... -
Page 21: Movement Pattern
MOVEMENT PATTERN MODEL 35- WKS145 1320 1000 1560 1400 1610 2040 1500... -
Page 22: Exploded Diagrams And Materials List
Version 1.1... - Page 23 ITEM SPARE PART NO. DESIGNATION QUAN- TITY R35-VKM175.025 Mudguard 72 mm/Ø10mm R35-VKM175.026 Mudguard 70 mm/Ø10mm Plate Protective panel Adjustment plate, gearbox R35-SKL145.014 Mounting plate for support roller, left Rubber laminate Scraper R35-SKL145.015 Mounting plate for support roller, right R35-SKL145.023 Angle bracket for gearbox R35-VKM195H.028 Bushing, lower pulley R35-VKM175.007...
- Page 24 Version 1.1...
- Page 25 ITEM SPARE PART NO. DESIGNATION QUAN- TITY R35-VKM195H2.065 Hex head bolt M12x35 Hex head bolt M24x70 Hex head bolt M24x100 Hex head bolt M24x130 Hex head bolt M24x140 MTB50.002 Hex lock nut M10 VKMATV150HXL.087 Locking nut M8 R35-FDM.068 Locking nut M12 R21-LUW50.019 Lock nut M24 Lock nut M30x2...
- Page 26 Version 1.1...
- Page 27 ITEM SPARE PART NO. DESIGNATION QUAN- TITY R35-VKM175.005 Bevel gear JCTT 33mm R35-VKM175.010 Cog belt BX40 Li1016 R35-VKM175.006 Pulley 3-track upper large Ø170 R35-VKM175.030 Pulley 3-track small Ø120 mm R35-RS165H.032 Clamp bushing pulley large 35 x 60 R35-SK180.076 Clamp bushing pulley R60-SEAL.035 Radial seal 55x80x08 R10-HYD.020...
- Page 28 Version 1.1 ITEM SPARE PART NO. DESIGNATION QUAN- TITY R35-VKMATV.010 Hex head bolt M12x80 R35-SKL145.006 Hammer flails R35-RS165H.017 Locking nut M12 R35-SKL145.011 Blade cylinder/rotary shaft...
-
Page 30: Instructions For Shortening Pto Shaft
DIRECTIONS FOR SHORTENING THE PTO SHAFT 1. Remove the protective device. 2. Cut off the transmission shaft to the desired length. NB The shaft may not be cut more than half the tube length. 3. File the edges of the tube 4. -
Page 31: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 32: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
