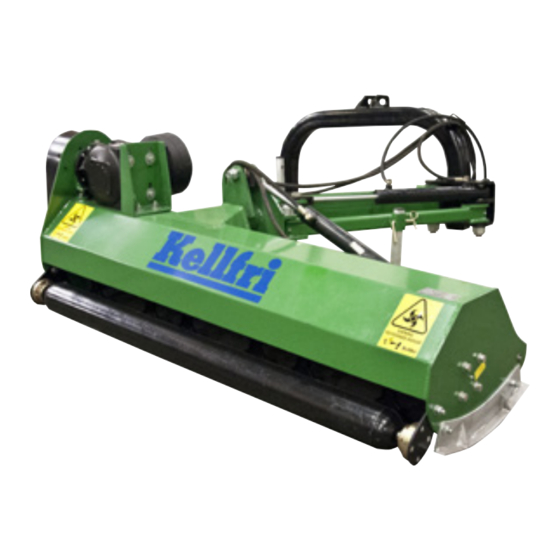

- Page 1 35-SKL145 VERGE FLAIL MOWER Light weight 1.45m Read this manual carefully before using the product! Translated from the original...
- Page 2 Deviation request form Warranty terms and condition Kellfri designs and delivers efficient and affordable machines and components for forestry, agriculture, construction and gardening in Sweden and the rest of the Nordic region and Europe. We recommend that you alway s read and follow the safety information and instructions in the machine’s instruction manual.
- Page 3 INTRODUCTION Thank you for choosing a product from Kellfri AB. By following general safety information, operating instructions and common sense, you will have many years of enjoyable use of the product. Kellfris equipment and products are aimed to be use by active farmers with high demands on functionality.
- Page 4 If the operating instructions gets damaged or in any other way cannot be used, please contact and order a new one from: Your retailer or download from manual.kellfri.co.uk Do not use the equipment or product if you feel ill, tired or are under the influence of alcohol.
- Page 5 SURROUNDINGS Make sure your working area is clear from people, children and objects before installing and using the machine. Risk of serious injuries can occur during operation. Take an extra caution when children are in the area where the equipment/ product is being use or stored. Check the area for low hanging electrical wires.
- Page 6 SAFETY TRAINING Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by a single careless act of an operator or bystander. In addi- tion to the design and configuration of equipment, hazard control and accident prevention are depen- dent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of this equipment.
- Page 7 IMPORTANT! Avoid lubricating too much. Dirt gathers easily on excess grease which increases wear. After lubrication, wipe off excess grease from couplings. Kellfri AB is constantly working to further develop their products and therefore reserves the right to make changes regarding, among other things, design and appearance without prior notice.
- Page 8 MACHINES / TOOLS CONNECTED TO HYDRAULICS Be careful when connecting your machine or implement to a hydraulic hose. DANGER! Leaking oil or fuel under pressure can penetrate the skin and can cause serious injury. Do not use your hands when searching for leaks. Use a piece of cardbo- ard or paper when searching for leaks.
- Page 9 To ensure the best lubrication effect, cleaning parts of the machine thoroughly is needed. We recommend degreasing agents to get it clean and to remove any residues of old lubricant that may contain destructive particles. The degreasing agents we supply at Kellfri is OKQ8. Table of contents >>...
- Page 10 RISKS AND HAZARDS DURING USE OF MOWING MACHINES Risk of crushing Bystanders may be injured when the machine is lowered to the cutting position. The machine has crushing points around the hinge areas and between the three-point hitch mount and the main body.
- Page 11 Accidents involving slips and falls Accidents involving slips and falls often happens as the result of: • Slippery surface • Uneven steps and platforms The potential for slip-and-fall accidents can be significantly reduced by using good judgment. All unprotected rotating machinery is a potential for accidents. Injuries usually occurs when loose clothing or long hair is caught and wrapped around rotating parts such as transmission shafts or drive shafts on the machine.
- Page 12 WARNING LABELS Ensure that warning labels are always clearly visible, clean warning labels if necessary. Do not flush with a high pressure directly on the warning label. If sticker is damaged, replaced with new decals. SYMBOL Explanatio Read the instruction manual before starting the operation! Warning for rotating knives! Warning! risk of cruching! Never put hands or...
- Page 13 SERVICE INTERVAL Flails Before each run Replace all broken flails. Sharp flails gives better result. When replacing any flails ensure that the bolts are firmly tightened. During operation Always listen to any unsual noise After each run Check Gearbox Before each run Check oil level Transmission oil After every 50 operation hours...
- Page 14 GEARBOX REFILL TRANSMISSION OIL 80W-140 (1,5 L) OIL LEVEL PLUG OIL DRAIN PLUG CHECK THE TENSION OF THE BELTS REGULARLY. NEW MACHINE’S SHOULD BE CHECK AND RETIGHTEN AFTER 2 HOURS OF OPERATION BELT ADJUSTMENT Release the mounting bolts (see illustration), then adjust the adjusting bolt until the belts are sufficiently tensioned.
- Page 15 MACHINE ASSEMBLY I 1.) Mount the gearbox, then the pulley and the belts. Adjusst the belt tension and tighten all bolsts 2.) Mount the cylinders one the unit and one on the swing arm. Table of contents >>...
- Page 16 MACHINE ASSEMBLY II 3.) With help of a lifting device, lift the swing arm and mount it on the cutting unit 4.) Mount the bracket for the folding arm onto the three point frame and finally assemble the 3-point frame together with the swing arm as shown below: Table of contents >>...
- Page 17 MACHINE ASSEMBLY III 5.) Pull the hydraulic hoses through the loop on the three-point bracket. Check that the hoses are drawn through the holder and that the hoses are not sharply bend or get squeezed when the mashine is moving. Table of contents >>...
- Page 18 INSTRUCTIONS FOR CUTTING PTO SHAFT Remove the protective cover. Measure and cut the transmission shaft to the desired length. NOTE! The shaft must not be cut more than half the length of the pipe. Fill the tube edges. Cut of the protection tube to the same length as transmission shaft.
- Page 19 DRAWING I POS.No Specification Lock nut m30 Washer Bearing 30x34x40 Steering pin for swing arm Grease nipple M8x1 Locking nut m24 Swivel arm (large) Banjo fitting M24x65 Swing Cylinder Plug Swivel arm (small) Bearing 30x34x24 Pin to swing arm Support leg R - pin Locking pin 3-point frame...
- Page 20 DRAWING II Table of contents >>...
- Page 21 POS.No Specification POS.No Specification Bolt M12x35 Attachement bracket 3point frame and swing arm Washers Washer Lock nut M12 Ball Bearings (UC205) Spring washer Support roller Bolt M12x25 Mounting bracket for the roller (left) Guard cover Bearing 63x68x40 Countersunk screw M8x20 Mounting bracket for the roller (right) 1 Lock nut M24 Large washer...
- Page 22 SPARE PARTS Spareparts no. Specification R35-SKL145.001 Swing cylinder SKL145 R35-SKL145.002 Seal kit for the swing cylinder SKL145 R35-SKL145.003 Support leg SKL145 R35-SKL145.004 Support roller SKL145 R35-SKL145.005 R10-Uc205 bearing for the roller SKL145 R35-SKL145.006 Hammer flail 80 mm/480 g R35-SKL145.007 Clamping bush big pulley 33*60 SKL145 R35-SKL145.008 V-belt BX38 Li965 R35-SKL145.009...
- Page 23 Case No.: DEVIATION REQUEST FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint please read Kellfri’s Purchasing terms in our catalog or Kellfri’s website at www.kellfri.co.uk as well as enclosed User’s manual that comes with the machine.
- Page 24 You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
