Summary of Contents for Kellfri 35-XKE240

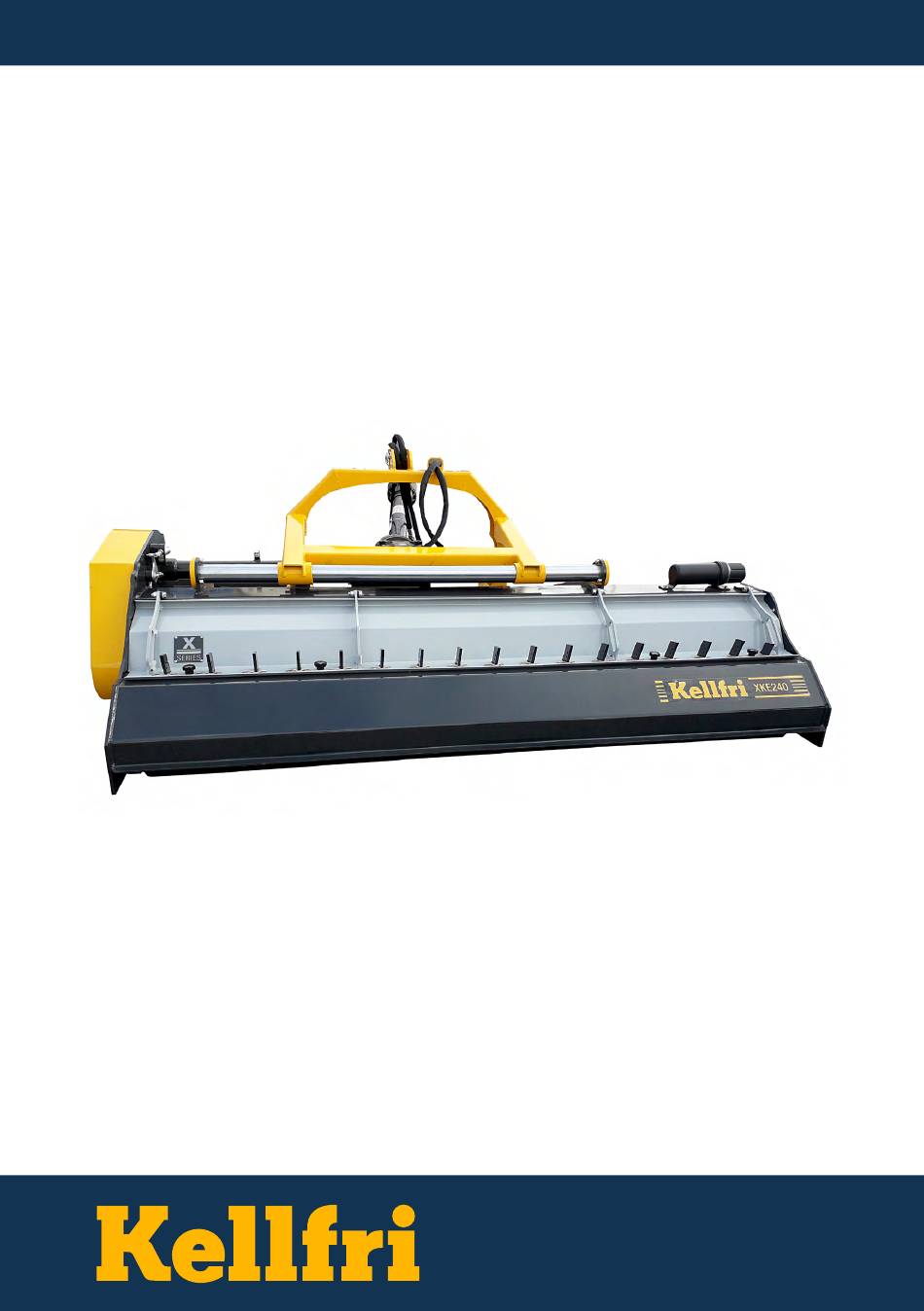

- Page 1 35-XKE240 FLAIL MOWER Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
- Page 2 - Check belt tension. For more information, see the manual. Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. Please note that the information in this document is general and may not pertain to your particular machine.
-
Page 3: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse en- thusiasts and other country-dwellers who have stringent performance demands. -
Page 4: Safety Instructions
For the safety of both yourself and others, it may be a good idea to read through the safety instructions every now and then. If the safety instructions or the operating manual are dam- aged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Storsvängen 2, SE-532 38 SKARA, Sweden. -
Page 5: Before Use
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: After Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Exercise cau- tion when working with equipment with hydraulic hoses, as oil under pressure can penetrate the skin. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. - Page 8 RISKS AND HAZARDS ASSOCIATED WITH THE USE OF GARDEN MACHINERY Risk of crushing Observers can be injured when the machine is lowered in the cutting position. Pasture toppers have crushing points around the hinge areas and between the 3-point linkage and the main body.
- Page 9 All unprotected rotating machine parts increase the risk of accidents. Accidents usually occur when loose-fitting clothing or long hair is caught and wrapped around rotating parts, such as PTO shafts or drive shafts on the machine. Ensure that all guards are correctly fitted. Drive safely on public roads •...
-
Page 10: Power Take-Off Shaft
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. •... - Page 11 CHEMICALS To maximise the service life of a product/equipment, maintenance - and not least preventive maintenance - is important, and this is largely what greases and oils do. Carefully read the operating manuals for your new products or equipment to ensure correct maintenance and service life and that the warranty remains valid! Lubricating greases First aid measures.
-
Page 12: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 13: Before Operation
BEFORE OPERATION: • Important! Check re-tightening of all bolts and nuts, especially bolts for clamp bushings and belt pulleys! IMPORTANT! Check mounting bolts for CLAMP BUSHINGS and BELT PULLEYS Check the pulley’s clamp bushings. Re-tighten the bolts at regular intervals. Tighten and check the belt tension if necessary. - Page 14 Operate at 540 rpm. Start with the lowest possible speed; check that the flail mower is working effectively with the engine at 540 rpm without straining. Stop and check that the cutting unit is correctly adjusted after the first 10 metres. The mower must always be adjusted with the tractor’s engine switched off.
- Page 15 SERVICE INTERVAL MEASURE Flails Before each use Replace all defective flails. Sharp blades give better results. When replacing blades, tighten bolts fully. While operating Listen out for noises After each use Check Gearbox Before each use Check level of oil type: Transmission oil (approx.
-
Page 16: Grease Points
GREASE POINTS Lubricate the indicated grease nipples regularly, and every time you rinse off the machine, to remove the water that has penetrated into the bearings during rinsing. Inadequate lubrication can result in unnecessary wear and mechanical damage. Use a universal lubricant. IMPORTANT! Avoid over-lubricating. - Page 17 GEARBOX Oil refilling, gearbox Transmission oil 80W-90 approx. 1.5 – 1.8 litres Gearbox level plug Gearbox drainage plug Oil refilling, tube Level plug IMPORTANT! ALWAYS CHECK THE OIL LEVEL AND LUBRICATING GREASE BEFORE OPERATION! Table of Contents...
-
Page 18: Belt Adjustment
BELT ADJUSTMENT CHECK BELT TENSION REGULARLY The belt should move 20 mm under pressure (see figure below). BELT GUARD CHECK AND TIGHTEN V-BELT AFTER ONE HOUR OF OPERATION! Re-tighten the pulley bolts at regular intervals. To keep the clamp bushing in place while replacing belt or pulley: •... - Page 19 ADJUSTMENT BOLT FASTENING BOLT Then adjust the adjustment bolt until the belts are adequately tightened. CHECK AND TIGHTEN THE BELTS AT REGULAR INTERVALS. A NEW MACHINE SHOULD BE CHECKED AND THE BELTS TIGHT- ENED IMMEDIATELY BEFORE FIRST OPERATION. V-belt B60 Li1524 Table of Contents...
- Page 20 Safety chain. Secure with R-pin. Stabiliser. Height can be adjusted in 3 positions Lock with pin. Counter blades. Using counter blades gives you better shredding of your cut grass, as the grass is retained in the mower. The counter blades help you to cut the grass shorter and more effectively, as the hammer flails have something to throw and cut the grass or straw against.
- Page 21 Three-point linkage. Secure with pin. Hydraulic hoses. Thread through the eyelet on the frame to keep them in place and avoid damage to the hoses. Table of Contents...
- Page 22 OPENABLE FLAP The mower has an openable flap. You open the flap when you know you are cutting or top- ping ground that generates a higher flow of material. This enables you to drive freely under the same conditions as with a closed flap and a normal flow of material. You save on fuel and reduce wear on the belts, and you can also operate at a higher speed, as the grass does not become twisted around the roller.
- Page 23 Table of Contents...
- Page 24 Version 1.1 Table of Contents...
- Page 25 ITEM NO. SPARE PART NO. DESCRIPTION QUANTITY VKM280N.005 Three-point linkage VKM280N.081 Bearing housing roller VKM280N.070 Belt tensioning arm VKM280N.002 Pin for 3-point linkage, lower VKM280N.096 Support roller bearing retainer RH VKM280N.049 Skid shoe, right VKM280N.065 Skid shoe, left VKM280N.069 Belt tensioning roller VKM280N.051 Sliding sleeve, rear VKM280N.053...
- Page 26 Version 1.1 Table of Contents...
- Page 27 ITEM NO. SPARE PART NO. DESCRIPTION QUANTITY VKM280N.036 Spring washer 10 R35-FDM.077 Hex head screw M10x30 R35-FDM.062 Washer 10x2.5 VKM280N.037 Hex head bolt M10x20 VKM280N.021 Flat washer 12x2.5 R35-RS165H.017 Lock nut M12 VKM280N.008 Flat washer 6x1.6 R35-FDM.047 Hex head bolt M12x40 VKM280N.058 Flat washer 8x1.6 R35-FDM.041...
- Page 28 Version 1.1 Version 1.1 Table of Contents...
- Page 29 ITEM NO. SPARE PART NO. DESCRIPTION QUANTITY R35-SK140.037 Protective cover PTO, plastic Pulley, small VKM280N.052 Hopper R35-FDM.012 Spring 125x28x4.5 VKM280N.093 Bearing housing incl. bear- ing for support roller R10-HYD.012 Quick coupling 1/2 male R35-FDM.020 Washer R35-FDM.014 Hollow bolt R35-SK180.018 Clamp bushing pulley, lower VKM280N.001 Wear ring 68x3x15 R35-FDM.026...
- Page 30 Version 1.1 ITEM NO. SPARE PART NO. DESCRIPTION QUANTITY Shaft R35-SK140.004 Flails, hammer R35-SK140.009 Hex head bolt M16x95 R35-SK140.008 Lock nut 16 Table of Contents...
- Page 31 Version 1.1 ITEM NO. SPARE PART NO. DESCRIPTION QUANTITY Shaft Connection shaft R35-VKM175.046 Drive cup 33mm - 33mm R35-VKM175.034 Spline 10x40 R35-VKM175.033 Spline 10x70 VKM280N.021 Flat washer 12x2.5 VKM280N.030 Spring washer 12 Hex head bolt M12x1.25x35 VKM280N.024 Bearing 6008-RZ VKM280N.022 Circlip SGH68 VKM280N.025 Shim washer...
- Page 32 MOVEMENT PATTERN NOTES: Table of Contents...
- Page 33 NOTES: Table of Contents...
- Page 34 NOTES: Table of Contents...
- Page 35 DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied.
-
Page 36: Warranty Terms And Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
