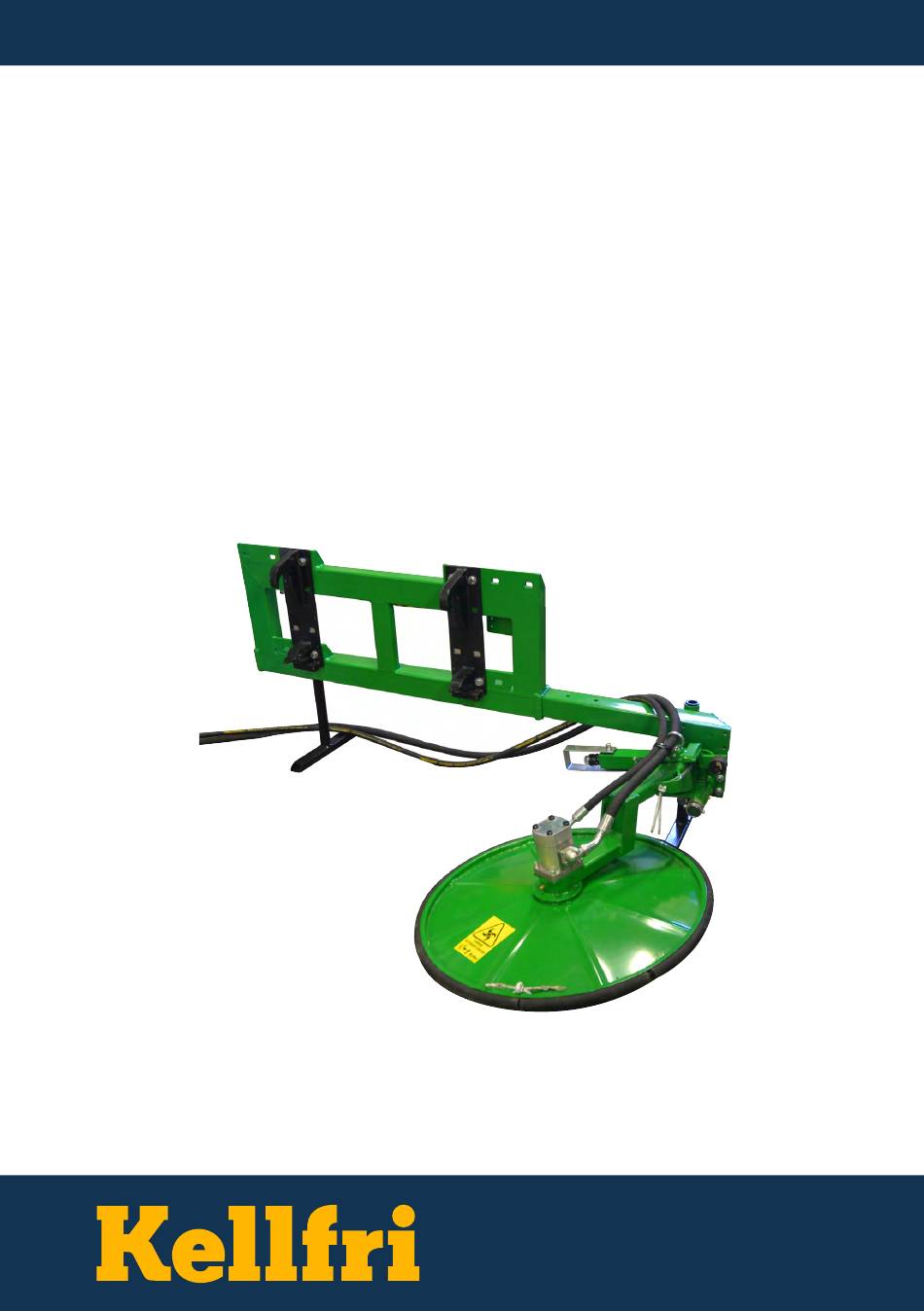

- Page 1 35-HKKFE 35-HKKFT FRONT MOUNTED STRIMMER The figure shows Trima bracket fitted. Read the operating instructions carefully before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Important! Before using the Strimmer, top up with grease. See page 21 for instructions. Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse en- thusiasts and other country-dwellers who have stringent demands on performance. -
Page 4: Safety Instructions
For the safety of both yourself and others, it may be a good idea to read through the safety instructions every now and then. If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 40 SKARA, Sweden. -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equip- ment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hang- ing electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Exercise cau- tion when working with equipment with hydraulic hoses, as oil under pressure can penetrate the skin. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: When Using Machine/Equipment Connected To Tractor
WHEN USING MACHINES/ATTACHMENTS CONNECTED TO THE TRACTOR PAY ATTENTION TO THE FOLLOWING: • Carefully read the machine's operating manual before using the machine! It is important that you understand the directions in the manual. • Keep the work area clear of children and other people. Moving parts increase the risk of accidents. -
Page 9: Machines/Equipment Connected To Hydraulics
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. •... -
Page 10: Risks And Hazards Associated With The Use Of Garden Machinery
RISKS AND HAZARDS ASSOCIATED WITH THE USE OF GARDEN MACHINERY Risk of crushing Observers can be injured when the machine is lowered in the cutting position. Pasture toppers have crushing points around the hinge areas and between the 3-point linkage and the main body. - Page 11 All unprotected rotating machine parts increase the risk of accidents. Accidents usually occur when loose-fitting clothing or long hair is caught and wrapped around rotating parts, such as PTO shafts or drive shafts on the machine. Ensure that all guards are correctly fitted. Drive safely on public roads •...
-
Page 12: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If apart with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Warning! Before starting work... -
Page 13: Chemicals
CHEMICALS To maximise the service life of a product/equipment, maintenance - and not least preventive maintenance - is important, and this is largely what greases and oils do. Carefully read the operating manuals for your new products or equipment to ensure correct maintenance and service life and that the warranty remains valid! Lubricating grease First aid measures. -
Page 14: Connecting The Equipment
CONNECTING THE EQUIPMENT • Connect the unit to the tractor’s frontloader. • NOTE Remove the transport safety device before starting work. The figure shows Trima bracket fitted. • Connect the hydraulic hoses to the tractor’s hydraulic outlet. Note: Connect the hoses to the correct PRESSURE/RETURN. -
Page 15: Transport Mode
TRANSPORT MODE When the mower is to be moved from one workplace to another, it must be put in transport mode. The tractor engine must be switched off and the rotor completely stationary before adjusting to transport mode. Remove all grass from the mower before leaving the field. Never move from one place to another with the rotor running. -
Page 16: Exploded Diagrams And Materials List
CUTTING HEAD Table of contents... -
Page 17: Other Spare Parts
CUTTING HEAD Item Spare part no. Designation Quantity Cutting head Ball bearing6007 Rubber seal (R35-HKK.016) Protection plate Socket Ball bearing 6206 Spring Shaft Threaded rod Blade attachment R35-185.001 Knife R35-185.002 Blade bolt M12x1.5 R35-185.003 Nut for blade bolt M12 x 1.5 Bolt M20 x 90 (R35-HKK.012) Hydraulic motor 25 CC... -
Page 18: Parts
PARTS frame stabilisers, 2 pcs. hydraulic hose cutting head suspension beam for cutting head hydraulic motor Bolt kit 4 x M8x30 Euro attachment for Trima attachment for 2 grease nipples 35-HKKFE 35-HKKFT Table of contents... -
Page 19: Assembly Instructions
ASSEMBLY INSTRUCTIONS Lift the frame, fit the cutting head suspension and remove the sleeve from the shaft to fit the cutting head. Fitting the cutting head. Lubricate the shaft before fitting the cutting head. Assembly Lubricate Table of contents... - Page 20 Refit the sleeve Fitting the stabilisers. Table of contents...
- Page 21 Install the grease nipples. The figure shows Trima bracket fitted. Important! Before using the Strimmer, top up with grease. See red marking. All lubrication points are greased after every 30 hours of use. NOTE Slowly and carefully pump in grease to prevent damage to the bearing seals. Be extra careful when using a high-pressure grease gun.
- Page 22 INSTALLING THE HYDRAULIC MOTOR • The hydraulic motor must be mounted on the attachment plate. • Splined sleeve is fitted on the hydraulic motor’s shaft. Use spring washer and nut from the hydraulic motor shaft. • Fit the hydraulic adapter on the pressure side of the engine. The pressure side is the side where the engine’s pressure limiter is positioned.
- Page 23 • Mount the hydraulic motor on the attachment plate. Use 4 x M8x30 screws and spring washers. fit and tighten bolts • Fit the hydraulic hoses as described above. 1⁄2" hose on the pressure side, 3⁄4" on the return side. 1/2”...
-
Page 24: Connecting The Hydraulic Hoses And Check Valve
CONNECTING THE HYDRAULIC HOSES AND CHECK VALVE Press 1/2" red marking Note the different sizes of hoses. Return 3/4" blue marking Placement of check valve. Important! Fit the check valve in the correct direction, see symbol on the check valve. Fit check valve. -
Page 25: Hydraulic Diagram
HYDRAULIC DIAGRAM Note: The RETURN hose is thicker than the PRESSURE hose. (Pressure) (Return) Pressure Return 1/2“ 3/4” IMPORTANT! If the hoses are fitted incorrectly, the gasket in the engine is pushed out, resulting in leakage. The engine cannot be used until the gasket has been replaced. -
Page 26: Mounting Brackets (Euro/Trima)
Fit the brackets to the frame. Euro attachment for Trima attachment for 35-HKKFE 35-HKKFT Inspect the machine and check that bolts, nuts and couplings are tightened. Ready for use. The figure shows Trima bracket fitted. Table of contents... -
Page 27: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 28: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS The warranty’s validity - Kellfri’s warranty is valid for 12 months from the date of purchase The warranty covers - Reimbursement for parts replaced after a material fault or manufac- turing fault has been verified. The warranty does not...
