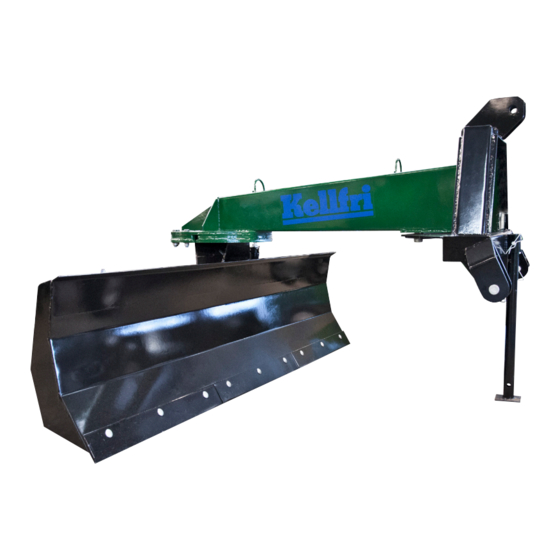

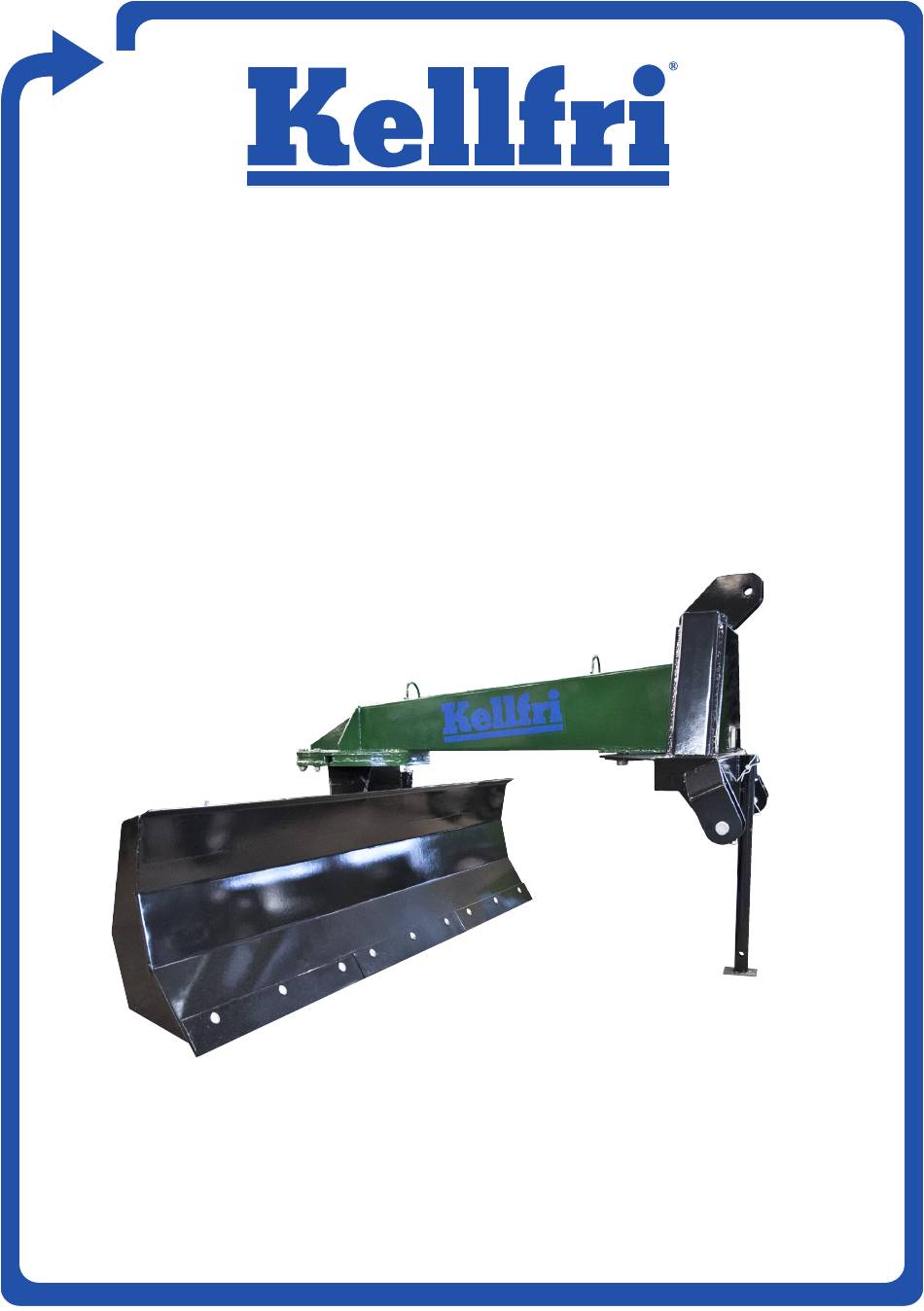

- Page 1 37-25063SHC DOZER BLADE PLEASE READ ALL INSTRUCTIONS BEFORE USING THE PRODUCT !!! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information, instruction manual and common sense, you will get many years of enjoyable use of the prod- uct. Kellfri’s tools and machines are aimed for farmers with high demands on functionality. -
Page 3: Product Safety
PRODUCT SAFETY Read the instruction manual carefully before using the machine. Always check the perfor- mance of the machine combination to be used to ensure the safety and functionality. Visually inspect the equipment before use. • Do not put hands or feet under the machine without stopping the machine and the trac- tor’s engine. -
Page 4: Before Use
INSTRUCTION FOR EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accesable during all work, maintenance and service. SURROUNDINGS Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. -
Page 5: Operation
OPERATION Only people who understand the safety information and operating instructions to operate this equipment or product. Be alert and cautious while working with the tool or product, and use only the tool or product in the manner described in the manual. When working with equipment that has moving parts, there is always the risk of injury. -
Page 6: Maintenance And Service
Check all nuts and bolts are tightened after performning maintenance and service.Al- ways test the machine before using it. • Lubricate all lubrication points regularly. For spare parts: Contact Kellfri Service RECYCLING Disposal of the product, disassemble and transport to the municipality’s recycling station. Contact your local authority for further information. - Page 7 A. Mount the wheel (4) in the suspension (8) with the joint sprint (18) and its M20 nut and washer. On either side of the wheel on the inside of the fork in the suspension there shall be a sleeve (27) to distance the wheel from the suspension.
- Page 8 E. Mount the boom (10) and the rotation plate (11) on the blade with 6 pc M16x80 bolt, nut and washer, tighten alternately. F. Mount the locking pin on the boom (6) with M10 bolt and washer. Put pin (5) to lock angle of the blade.
- Page 9 I. Mount the hydraulic hoses (24) with the hook (25), NOTE; don’t over tighten the hydraulic hoses to the cylinder! WIRING DIAGRAM 37-25063SHC J. Mount the support leg with the small L-sprint, secure with R-clip. Mount the 3 locking pins (21) and secure with R-clips. H.
- Page 10 NOTES:...
- Page 11 Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a com- plaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine.
-
Page 12: Warranty Terms And Conditions
Other equipment must meet the hardware requirements of the Directive Tina Baudtler, Representative Kellfri AB is constantly working on further developing their products and therefore reservesthe right to modify, among other things the design and appearance without notice CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
