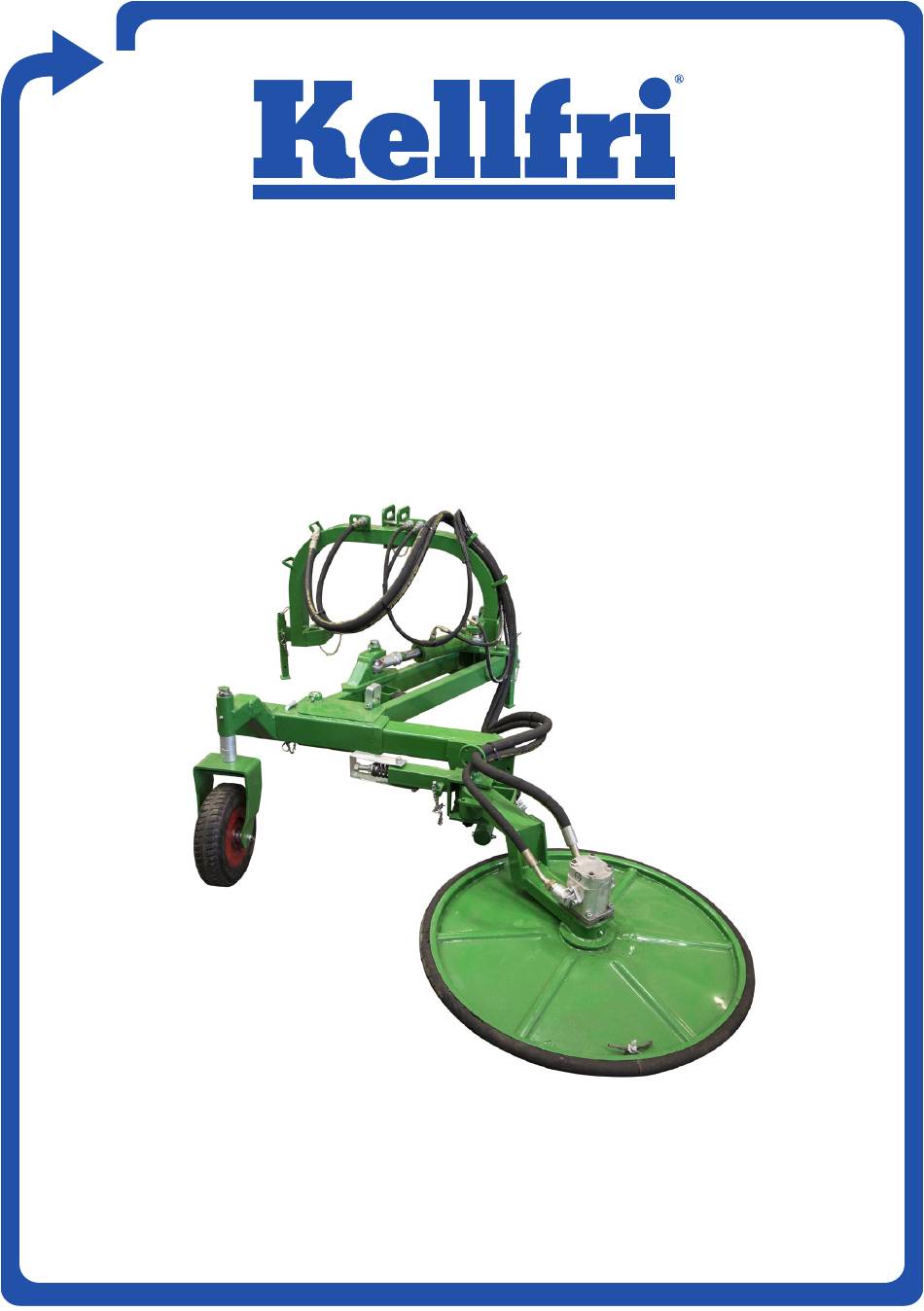

- Page 1 35-HKK HYDRAULIC STRIMMER CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Table Of Contents
Table of contents Introduction Product information Technical data Basic safety instructions Product safety information Personal protective equipment Surroundings Warning decals Before use Connecting the machine Driving and speed Adjusting the cutting head distance from the tractor After use Transport and storing Maintenance and service Inspection Cleaning and rinsing... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information, instruction manual and common sense, you will get many years of enjoyable use of the prod- uct. Kellfri’s tools and machines are aimed for farmers with high demands on functionality. -
Page 4: Basic Safety Instructions
Kellfri AB, Munkatorpsgatan 6, 532 37 SKARA Sweden. Tel.: +46 (0)511 242 50 (Pls. contact the retailer) https://www.kellfri.co.uk/ Do not work with the equipment or product if you feel ill, tired or are under the influence of alcohol. -
Page 5: Personal Protective Equipment
IN CASE OF EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accesable during all work, maintenance and service. PERSONAL PROTECTIVE EQUIPMENT Wear suitable clothing and footwear. -
Page 6: Warning Decals
WARNING DECALS Make sure that the warning labels are always visible, clean the warning labels if necessary. Do not wash with high pressure washer directly on the warning label. If any part of the decal is worn or label becomes frayed or otherwise unreadable, order new decals. SYMBOL EXPLANATION Risk zone... -
Page 7: Before Use
BEFORE USE Read the instruction manual carefully. Be sure that you understand the safety information, in- struction manual and warning labels. Use common sense when using and use the appropriate personal protective equipment . Always check the performance and the machine combination that are used. It’s highly important these matches in a satisfactory manner. -
Page 8: Use
Only people who understand the safety information and instructions in this manual may op- erate the equipment. Be alert and careful when working with the machine and only use the tool or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk of injury. -
Page 9: Driving And Speed
DRIVE AND SPEED The amount of grass to be cut determines the speed forward; low speed usually gives the best results. Start with the lowest possible speed, ensure that the strimmer is working effectively with the tractor at maximum speed without effort. It is important to always listen to the engine to ensure that the engine and machine functions effectively, slow down or stop if the motor starts to go heavy. -
Page 10: Transport And Storing
Use only original replacement parts or spare parts with equivalent performance to reduce the risk of damage. For spare parts: contact Kellfri Service Check all bolts and nuts are tightened after maintenance and service. Always test the machine before work is started. -
Page 11: Inspection
INSPECTION It is very important to regularly check the machine in order to detect and prevent wear and tear, damage, etc. • Lubricate moving parts regularly: All lubrication points should be lubricated after every 30 hours of use. NOTE! Pump grease slowly and carefully to prevent damage to the seal- ing layer. - Page 13 DESCRIPTION QTY. Iron bar 90x90x3mm Reinforcement Wheel bracket 60x60x5mm Angle support Angle support Bracket Suspension of the cutting head 80x80x5mm Mounting plate fitting of the cutting head Flat Iron Fixing plate Swivel Washers 12 Spring washer 12 Bolt M12x40 Spacer Sleeve - fastening pin Shaft sleeve Wheel suspension...
- Page 15 DESCRIPTION QTY. DESCRIPTION QTY. Ring pin Cutting head Bearings 6007 Threaded rod Rubber seal Rubber stopper Cover plate Blade attachment Sleeve M12 nut Bearings 6206 Knife Suspension M20x90 bolt Shaft Nut M20 L-sprint Cylinder Wheel complete Round nut Swivel Washer Bolt M8x70 M8x60 Nut M8...
-
Page 16: Assembly Instructions
ASSEMBLY INSTRUCTIONS 3-point frame Cutting head Wheel Rubber stopper Hydraulic motor Suspension beam for cutting head Bolt kit 4x M8x30 4x grease fittings... - Page 17 1.) Lift the 3-point frame, mount the suspension of the cutting head and remove the sleeve from the shaft and mount the cutter head. PICTURE1 PICTURE 2 2.) Installing the cutting head: Lubricate the shaft before mounting the cutting head. See pictures below: Mount PICTURE 4 PICTURE 3...
- Page 18 4.) Lift and turn the machine over to be able to fit the grease fittings under the machine. Warn- ing risk of crushing! Ensure that the machine cannot fall down. Mount the grease fittings and lubricate the joints. assemble and lubricating PICTURE 7 PICTURE 8...
-
Page 19: Complaint Form
Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 20: Warranty And Ec Declaration Of Conformity
Other equipment must meet the hardware requirements of the Directive Tina Baudtler, Representant Kellfri AB is constantly working on further developing their products and therefore re- servesthe right to modify, among other things the design and appearance without notice Updated 20170201 CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
