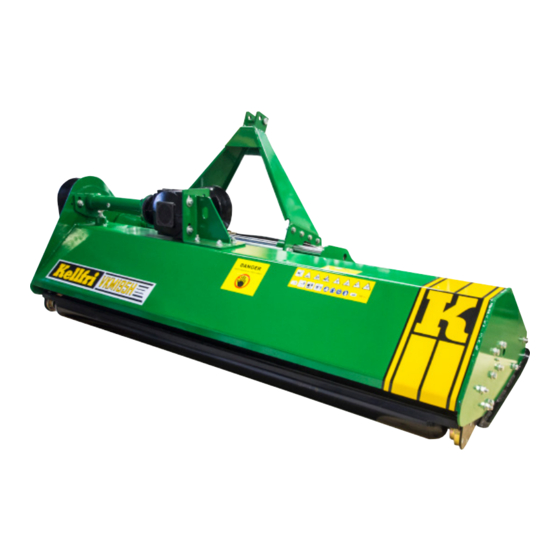

- Page 1 35-VKM195H FLAIL MOWER Read this manual carefully before using the product! Translated from the original...
-
Page 2: Table Of Contents
Maintenance and service Recycling Service Troubleshooting Gearbox VKM195H Checking the belt tension Adjusting the belt Refilling grease Lubrication points Assembly 35-VKM195H Drawing 1 18-19 Drawing 2 20-21 Assemble kit for 35-VKM195H Complaint form Ec-declaration of conformity, original Table of contents... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following general safety information, operating instructions and common sense, you will have many years of enjoyable use of the product. Kellfris equipment and products are aimed to be use by active farmers with high demands on functionality. -
Page 4: Safety Information
Your retailer The general safety instruction is also available from Kellfris website: www.kellfri.co.uk Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness. -
Page 5: Product Safety Information
PRODUCT SAFETY INFORMATION The user of the machine should understand the contents of this manual before use, service and installation of equipment to the tractor and all other relevant measures. Never wear jew- ellery, loose clothing, ties, scarves, belts, unbuttoned jackets that can get caught in moving parts. -
Page 6: Personal Protection
PERSONAL PROTECTION Always wear suitable clothing and footwear. Do not wear loose clothing or jewelry when us- ing the machine. Remember to put up long hair when operating machines with rotating parts. Wear protective gloves, to prevent burn injuries on contact with hot surfaces such as exhaust system, and to avoid oil and gasoline on the skin. -
Page 7: Before Use
BEFORE USE Read the safety information and instruction manual carefully. Be sure you understand the safety measures, instruction manual and warning labels. Use common sense when operating the machine and use appropriate personal protective equipment. Always check the performance and the machine combination that are used. It’s highly impor- tant these matches in a satisfactory manner. -
Page 8: Risks And Hazards When Using A Mowing Machine
RISKS AND HAZARDS WHEN USING A MOWING MACHINE Risk of crushing Bystanders may be injured when the machine is lowered to the cutting position. The machine has crushing points around the hinge areas and between the three-point hitch mount and the main body. -
Page 9: Warning Labels
WARNING LABELS Make sure that the warning labels are always visible, clean the warning labels if necessary. Do not wash with high pressure washer directly on the warning label. If any part of the decal is worn or label becomes frayed or otherwise unreadable, order new decals. SYMBOL EXPLANATION Read the instruction manual! -
Page 10: Operation
BEFORE USING THE MACHINE * IMPORTANT! Check and tighten all bolts, nuts and all connections. The bolts must be retightened at regular intervals. Check belt tension and tighten if necessary. * Check knives/flails, make sure they are installed properly. Replace broken, cracked or worn knives / flails. -
Page 11: After Use
Operate at 540 rpm, start at the lowest possible speed, make sure the mower works ef- ficiently with the engine on 540 rpm without effort. Stop and check that the cutting unit is set correctly after the first 10 meters. Before maintenance, service, connection and disconnection of the machine, the tractor engine must switched off and the ignition key removed. -
Page 12: Maintenance And Service
MAINTENANCE AND SERVICE Make sure the implement is stable and there’s no risk of falling over during maintenance and service. Replace damaged and worn parts immediately to reduce the risk of machine failure and injuries. Perform maintenance, service and inspections as recommended. Use only spare parts with equivalent performance to reduce the risk of damage and failure. -
Page 13: Troubleshooting
TROUBLESHOOTING ERROR MEASURE The flail mower cuts unevenly Make sure the flails are intact and mounted properly. or poorly. Adjust the support roller and make sure it is positioned correctly. Check and tighten any belt. The sound of the machine Check the roller. -
Page 14: Gearbox Vkm195H
GEARBOX VKM195H FILLER PLUG TRANSMISSION OIL 80W-90 (1,0 L) LEVEL GAUGE DRAIN PLUG IMPORTANT! ALWAYS CHECK THE OIL LEVEL AND GREASE LEVEL PRIOR OPERATION! CHECKING THE BELT TENSION DISASSEMBLE THE BELT GUARD FIG. 1 Check belt tension regularly When pressure is applied the belt should move 20 mm (10mm on each side - shown in fig. -
Page 15: Adjusting The Belt
ADJUSTING THE BELT FASTENING BOLTS ADJUSTING BOLT Release the fastening bolts for the gearbox and pulley (see figure). Then adjust the adjusting bolt until the belts are tight enough. CHECK AND TIGHTEN THE BELTS AFTER 2 HOURS OF OPERATION! THIS IS IMPORTANT IN PARTICULAR WHEN OPERATING THE MACHINE FOR THE FIRST TIME! Bolts must be retighten at regular intervals. -
Page 16: Refilling Grease
REFILLING GREASE GREASE FITTING FOR REFILLING OF OIL USE TRANSMISSION OIL Amount; 0,2L LUBRICATION POINTS Lubricate all lubrication points on a regular basis, as well as every time you rinse the machine to remove any water that may have entered the bearing house during rinsing. Unnecessary wear and damage may result from insufficient lu- brication. -
Page 17: Assembly 35-Vkm195H
ASSEMBLY 35-VKM195H 3 - point bracket Attachment for the cylinder Cylinder + 2 pcs Hydraulic hoses Belt guard Outrigger PTO guard Table of contents... -
Page 18: Drawing 1
DRAWING 1 Table of contents... - Page 19 POS NO DESGNATION Upper pin Locking pin Hook 3 point bracket Bolt M12x30 Plan washer 12 Lock nut M12 Bolt M18x45 Spring washer 18 Plan washer 18 Side plate - left Spacer nylon Lock ring 60 Stabilizer bar Side plate - right Rail Lock nut M20 Spring washer 20...
- Page 20 DRAWING 2 Table of contents...
- Page 21 POS NO DESGNATION POS NO DESGNATION Adjustment plate - right Belt 17x1016 mm Scraper Pulley cover Lock nut M8 Plan washer large 12 Inner hexbolt M8x25 Bolt M12x100 Skidplate - left Adjustment plate - left Lock bushing 35x60 Bearing UC205 Pulley - small Large belt buckle Adjusting sleeve...
-
Page 22: Assemble Kit For 35-Vkm195H
ASSEMBLE KIT FOR 35-VKM195H 22 pcs bolts M12x40 22 pcs lock nuts M12 44 pcs plain washers M12 (Ø24) 2 pcs bolts M10x15 2 pcs plain washer M10 (Ø 20) 2 pcs lock washers 7 pcs of rectangular shaped washer (R35-VKM195.035) -
Page 23: Complaint Form
COMPLAINT FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 24: Ec-Declaration Of Conformity, Original
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
