INSTALLATION MANUAL
Connecting to Smart connect cloud

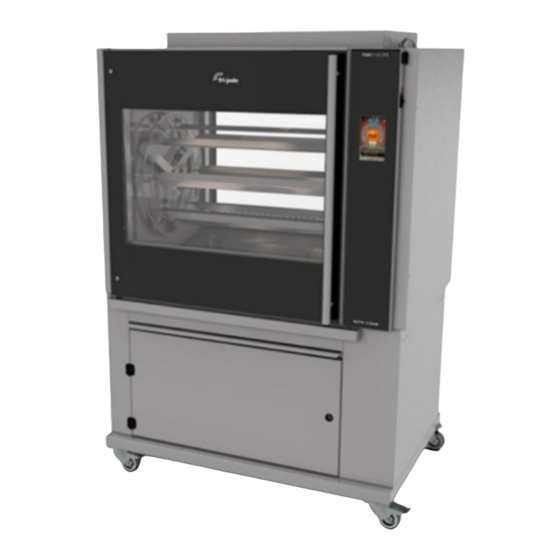

MODEL
S- control ovens
- NOTICE -
This manual is prepared for the use of trained Service Technicians and should not be used by
those not properly qualified. If you have attended a training for this product, you may be
qualified to perform all the procedures in this manual.
This manual is not intended to be all encompassing. If you have not attended a training for
this product, you should read, in its entirety, the repair procedure you wish to perform to
determine if you have the necessary tools, instruments and skills required to perform the
procedure. Procedures for which you do not have the necessary tools, instruments and
skills should be performed by a trained technician.
Reproduction or other use of this Manual, without the express written consent of Fri-
Jado, is prohibited.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fri-Jado S
Summary of Contents for Fri-Jado S
- Page 1 INSTALLATION MANUAL Connecting to Smart connect cloud MODEL S- control ovens - NOTICE - This manual is prepared for the use of trained Service Technicians and should not be used by those not properly qualified. If you have attended a training for this product, you may be qualified to perform all the procedures in this manual.
-
Page 2: Table Of Contents
Index Connecting to the SmartConnect cloud ......................3 SmartConnect cloud ..........................3 Store WiFi network ..........................5 Oven with S control ..........................5 Fri-Jado Connector app ......................... 7 Getting connected ..........................9 Instructions for using static IP address ....................21... -
Page 3: Connecting To The Smartconnect Cloud
1. Smart connect cloud 2. Store WiFi network 3. Oven with S control 4. Fri-Jado connector app 1. SmartConnect cloud The first part is the Smart connect cloud which is a web based enviroment where you can manage Users, devices and groups. - Page 4 You need to enter your Username and Password which has been send to you by email to be able to login. If you did not receive it please contact your local distributor or Fri-Jado. Note: Password must contain at least 8 characters, one uppercase letter, one number, and one special character (@$!^#*?) The oven must be known in the SmartConnect cloud, in one of the groups you have access to.
-
Page 5: Store Wifi Network
Port number; 8883 3. Oven with S control Ovens with S control (touch screen) have an integrated Wi-Fi module to connect the oven with the store Wi-Fi network. Make sure the oven has the latest software version installed. (V 1.00.34 or higher) If not please update... - Page 6 Activate Wi-Fi on the oven First thing we need to do, is making it possible for the oven to communicate with your smartphone. This is necessary to configure the wi-fi connection and to set the date, time and location of the oven. Switch on the oven and select the settings symbol and go to the service parameters page.
-
Page 7: Fri-Jado Connector App
• 4. Fri-Jado Connector app To connect the oven to the Smart connect cloud you need a smartphone with the Fri-Jado connector app installed. With this connector app you connect the oven to the smart Cloud and determine its location. - Page 8 Once you have downloaded the app you need to install the app on you smartphone. Note: While using the app to connect the oven make sure mobile data is switched off on your smartphone.
-
Page 9: Getting Connected
Getting connected This guide will take you step by step trough the connecting process of the Oven to the Smart Connect Cloud. The 2 following signs will be used to show on which device action is required: When you see this icon, actions are required on the oven controller. When you see this icon, actions are required on your smartphone. - Page 10 Scroll down to ‘Start Config’ and select it. A screen with the options ‘no and yes’ pops up. Push ‘yes’ to start the configuration. Wait approximately 10-30 seconds till the Smartphone icon shows up in the top right side of the Oven display. The oven will switch to wi-fi access point mode now, to be able to connect to your smartphone.
- Page 11 Now select about from the home menu, you will see a QR code representing the serial number of the oven. At the bottom of the screen you can also read the serial number and the I/O board version.
- Page 12 Now start the app :”Fri-jado Connector app” on your smartphone Enter Username and Password and press Login. Your current location will automatically be detected. Note: Location tracking must be set to “yes” or “allow” on your phone to make this step work.
- Page 13 The location can also be entered manually in the dashboard. Check location, if you get a press ‘continue’. Scan the QR code which is shown on the Oven display. The App reeds the QR code and the serial number will be shown in the Smartphone screen.
- Page 14 If the scan of the QR code isn’t successful, you can scan the QR code again, or enter the serial number manually by pushing the serial number area in the app. (see picture above) Than type the full serial number as shown in the bottom of the ‘about’ screen. (see picture below)
- Page 15 After filling in the serial number, or scanning it successfully, press “Continue” in the app.
- Page 16 If everything is correct you get the confirmation screen as shown above. Check if the mentioned serial number is correct and press ‘confirm’. After the serial number confirm, an Incoming Wi-Fi message will appear on the screen of the S- control oven.
- Page 17 Press “Accept” You will receive a “You are connected…..” message, press “continue”...
- Page 18 Now select the Wi-Fi network you want to connect with and enter the Wi-Fi password Note: The oven can also be connected with a static IP address. If you want to use this option please follow the instructions in chapter 6 from this point. Press “continue”...
- Page 19 Press “configure oven”, the app/Oven will do some configuration steps automatically now. The oven will now be connected to the selected Wi-Fi network (this can take some minutes) If successful the following message will appear: Press OK to continue.
- Page 20 Close the connector app or choose next oven if there are more ovens to be connected on this location. Note: If the connection was not successful repeat the complete procedure but first switch off and on the Oven and close/logout from the Fri-Jado connector app on the Smartphone.
-
Page 21: Instructions For Using Static Ip Address
Instructions for using static IP address Follow the guidelines as described in chapter ‘Getting Connected’ until you reach the ‘static Ip address’ notification. After you have entered the Wi-Fi name and password do NOT select Continue but select ‘Configure static IP address’ like shown in the left picture below. After this you will see the IP configuration screen like shown on the right side picture above. - Page 22 Fill in the IP static IP address you want to use together with the Netmask and Gateway numbers. Typically looking like : 192.168.10.111 Netmask: 255.255.255.0 Gateway: 192.168.10.0 DNS and port numbers can be left default at: 8.8.8.8 and: 8.8.4.4 or also be specified by someone from Select ‘Continue’...
-
Page 23: Wifi Settings S Controller
Wi-Fi settings S controller Below a list of the Wi-Fi related settings in the S controller with a short explanation of them: Setting Explanation Wi-Fi smart Cloud Option to enable a connection to the Fri-Jado Smart Connect website. Wi-Fi RSSI Shows the signal level of the Wi-Fi connection.
