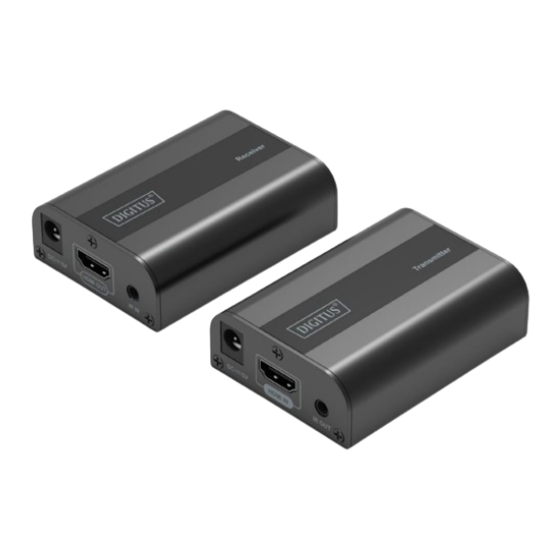

- Page 1 4K HDMI Extender Set, 4K/60Hz Quick Installation Guide DS-55204 Rev.3...
-
Page 2: Table Of Contents
Table of Contents Introduction ................. 3 Product Features ..............3 Package Content ..............3 Specification ................ 4 Penal Description ..............6 Connection ................7 Installation Requirements ........... 8 Troubleshooting ..............8 Important Safety Instructions: Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before installation. -
Page 3: Introduction
1. Introduction The Digitus 4K Extender Set, 4K2K/60Hz offers an extender solution of up to 60 m for the highest demands - both for high-resolution graphics and for absolutely smooth video playback. It transmits digital 4K2K/60Hz video and audio signals to a maximum length of up to 30 m. -
Page 4: Specification
4. Specification Item Description Model DS-55204 HDMI2.0 Extender Product type over CAT 6 HDMI2.0 extender over CAT 6, 30m Function with 4K@60Hz, Feature 60m with 4K @30Hz, zero latency Max transfer rate 18Gbps Color Depth 12bit HDMI version HDMI2.0 HDCP version HDCP2.2... - Page 5 Input and Output TMDS 0.5~1.5Vp-p signal (TMDS) Input and Output DDC 5Vp-p(TTL) signal Voltage DC5V/1A Adapter Power TX<2.5W consumption RX<3W 1a (contact discharge) level 3 1b (air-gap Protection ESD protection discharge) level 3 level International StandardIEC61000- (0°C ~ 50°C) Operating temperature 32°F ~ 122°F Operating (-20°C ~ 60°C)
-
Page 6: Penal Description
5V1A power adapter x 2 IR transmitter x 1 Accessory IR receiver x 1 User manual x 1 5. Penal Description Transmitter unit (TX) ① Reset button Press for restarting the unit RJ45 signal output Output encoded HDMI signal ② ③... -
Page 7: Connection
Reset button Press for restarting the unit ① ② RJ45 signal input Input encoded HDMI signal ③ Power indicator LED indicator turn on when power on DC5V input Connect with the display supply ④ HDMI signal output Connect with the display device ⑤... -
Page 8: Installation Requirements
extension cable should plug in the IR IN port of RX (receiver) unit. • The emitter of IR blaster should as close as possible to the IR receiver window of the signal source device. Using the IR remote controller of the signal source device •... - Page 9 another port to setting HDMI audio output audio output or not No picture or Maybe the HDMI Please check if the HDMI picture flicker cable quality and and UTP connection is UTP cable quality well or change another is not good good quality HDMI 2.0 enough or not standard HDMI cable or...
