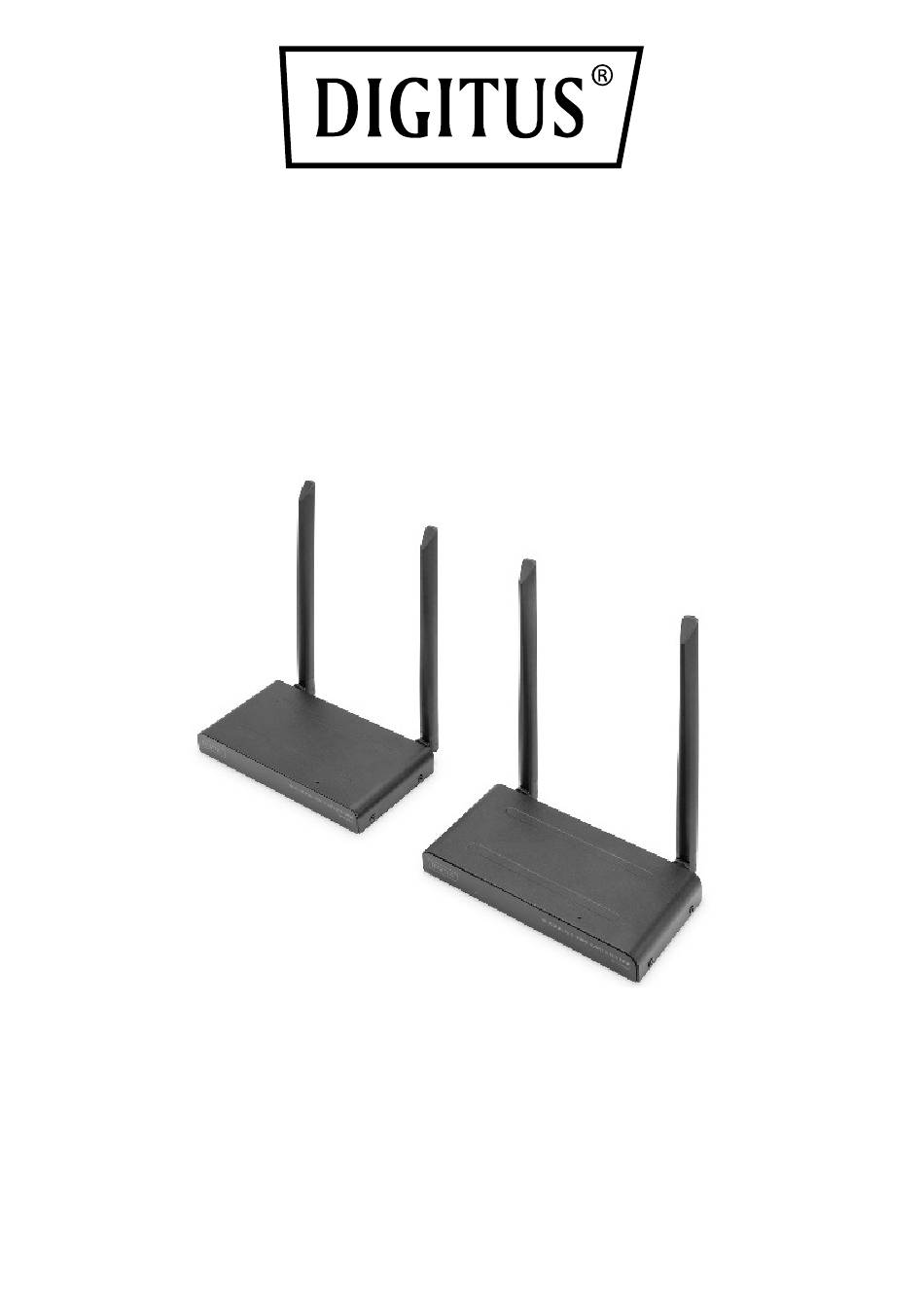

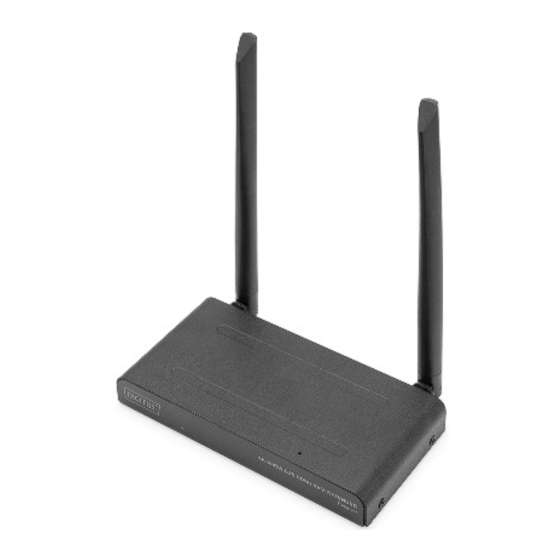

- Page 1 4K Wireless HDMI® KVM Extender Set, 150 m Quick Installation Guide DS-55328...
-
Page 2: Table Of Contents
Table of Contents 1. Safety Instructions ............... 3 2. Introduction ................. 4 3. Main Features ................4 4. Package Contents ................. 5 5. Product Specifications ..............5 5.1 Transmitter Specifications ............5 5.2 Receiver Specifications ..............7 6. Product Overview ................ 9 6.1 Transmitter Overview .............. -
Page 3: Safety Instructions
1. Safety Instructions Please read the following safety instructions carefully before commissioning: Observe all warnings and instructions concerning the device 1. Do not expose the device to rain, moisture, vapors or liquids 2. Do not insert objects into the device 3. -
Page 4: Introduction
2. Introduction The 4K Wireless HDMI KVM Extender Set transfers your HDMI video and audio signals in UHD 4K/30 Hz without a cable over a distance of up to 150 m (unobstructed view). This consists of a transmitter and receiver unit. Thanks to KVM functionality, the mouse/keyboard can be connected to the receiver unit, which makes it possible to control the signal source directly on the output device. -
Page 5: Package Contents
4. Package Contents • 1x Transmitter unit • 1x Receiver unit • 2x USB Power adapter (DC 5V/2A) • 2x USB-A to USB-C cable (1.5 m) • 2x HDMI connection cable (1.5 m) • 1x USB-A to Micro-USB cable (0.8 m) •... - Page 6 USB KVM Supports mouse/keyboard/touch panel back control Wireless Standard IEEE 802.11b/g/n/ac, 2.4G/5GHz, 2T2R Platform Supported Any devices that support HDMI port Distance About 150 meters in the clear line of sight Throughput Up to 866 Mbps Frequency 5150-5350MHz, 5470-5725MHz, 5725-5850MHz, 5850-5925MHz The specific frequency bands utilized are upon the legal regulations by each country...
-
Page 7: Receiver Specifications
Dimensions 154*77.5*21 mm Weight 330 g Operating Temperature 0 °C to +40 °C Storage Temperature -10 °C to +60 °C Operating Humidity 10 % to 80 % relative humidity 5.2 Receiver Specifications Specifications Details HDMI® out Version HDMI 2.0 HDCP Version HDCP 2.2 Output Resolution 4096x2160/60fps, 4096x2160/30fps,... - Page 8 Frequency 5150-5350MHz, 5470-5725MHz, 5725-5850MHz, 5850-5925MHz The specific frequency bands utilized are upon the legal regulations by each country Bandwidth Supports 20 MHz, 40 MHz, 80 MHz WiFi PA About 17 dBm Auto Pairing & Auto Automatically establish connection Connection with the most favorable Wi-Fi channel accessible to guaranteeing exceptional wireless performance High Sensitive Antennas...
-
Page 9: Product Overview
6. Product Overview 6.1 Transmitter Overview 1. HDMI in: Connect with the video source 2. HDMI® out: Connect with display for Pass-through (Loop Out) 3. Micro USB: Connect with USB of video source KVM function 4. IR Port: Connect with IR probe of video source for IR extended function 5. -
Page 10: Receiver Overview
6.2 Receiver Overview 1. HDMI® out: Connect with display 2. USB: Connect with mouse and keyboard for USB KVM function, you can also connect with touch panel USB port for touch panel back control 3. Reset: Reset to factory 4. USB-C: Connect with 5V/2A power adapter 5. -
Page 11: Connection Instruction
7. Connection Instruction The wireless HDMI extender kit includes one transmitter and one receiver, which are paired before shipment. Normally you don’t need to pair them again. However, if you buy additional receiver, you need to follow the instruction below to pair the new receiver with the transmitter. 1) Power on transmitter (if necessary, deactivate already paired receivers beforehand, disconnect them from the power supply) 2) Power on the receiver until it’s on the main menu. -
Page 12: Installation Guide
8. Installation Guide 8.1 Connecting the transmitter The transmitter sends the video signal wirelessly to the receiver in another room. Therefore, place the transmitter near your HDMI source 1. Connect the power adapter to the connector marked "5V" and insert the plug into the wall socket. 2. -
Page 13: Connecting The Hd Receiver
LED indicator of TX Description TX system is booting on Blue Connected Purple No video input signal 8.2 Connecting the receiver Connect the power adapter to the connector marked "5V" and insert the plug into the wall socket. Place the receiver in the room (bedroom, study, or other room) where you want to connect the second TV or projector. -
Page 14: Two Streaming Modes
8.3 Two streaming modes 8.3.1 1x TX – 1x RX mode (Point-to-Point) Normally, when you connect TX and RX by following above step, the TX and RX will connect automatically. 8.3.2 1x TX to 4x RX max. mode (Point-to-Multipoint) -
Page 15: Connecting Infrared Return
The 4K Wireless HDMI KVM Extender Set also supports multicast function, which means video transmission from one transmitter is streamed to a group of receivers simultaneously. One transmitter can support up to 4 receivers. If you buy a new receiver, after power on the receiver, the transmitter will recognize and stream the video to the second receiver automatically. -
Page 16: Testing The Ir Return Function
The 4K Wireless HDMI KVM Extender Set has a Built in “infrared return" that enables continued operation of the connected HDMI sources from another room. For example, operate your HDMI source downstairs from your bedroom (location of second TV). The IR cable receives the commands sent by the IR receiver and forward it to your connected HDMI sources. -
Page 17: Connecting The Usb Extension
8.6 Connecting the USB extension In addition to an infrared return feature, the 4K Wireless HDMI KVM Extender Set also features a built-in USB extension function. This helps you to continue to operate connected HDMI sources, such as a Desktop PC or laptop, from another room, using a mouse and/or keyboard. -
Page 18: Testing The Usb Extension Function
8.7 Testing the USB extension function Once you have connected the Micro USB cable and your mouse/keyboard according to the above description, it is recommended to test the feature first. Take your mouse/keyboard and use one of the functions. The receiver will now send this function to the transmitter. The transmitter will now forward this function to the Media Center PC or laptop. - Page 19 If the transmitter and receiver still no connection, please follow the below step for pairing. 1) Power on the transmitter. 2) Power on the receiver till it’s on the main screen. 3) Press the receiver’s reset button and hold for 5 seconds till the LED is flashing fast.
- Page 20 Q4. The IR blaster doesn’t work. 1) Make sure to use the original remote control of the video source. 2) Please stick the IR emitter probe in the surface of IR window of the source device, if you are not sure the correct position of IR window of source device, 3) please refer to the manual of source device.
- Page 21 Frequency Range & Maximum Transmit Power DS-55328 WiFi Standard: IEEE 802.11.b/g/n/ac 5.8G Channel: 36/40/44/48 Core Frequency: 5150-5350MHz ; 5470-5725MHz; 5725-5850MHz ; 5850-5925MHz (The specific frequency bands utilized are upon the legal regulations by each country) Bandwidth: Support 20MHz, 40MHz, 80Mhz...
- Page 22 DS-55329 WiFi Standard: IEEE 802.11.b/g/n/ac 5.8G Channel: 36/40/44/48 Core Frequency: 5150-5350MHz ; 5470-5725MHz; 5725-5850MHz ; 5850-5925MHz (The specific frequency bands utilized are upon the legal regulations by each country) Bandwidth: Support 20MHz, 40MHz, 80Mhz Transmitter power: 17dBm SW version: RX: 4.0.7 HW version: RX: V11RX-4K60-V1...
- Page 23 Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
