Summary of Contents for Digitus DS-55321

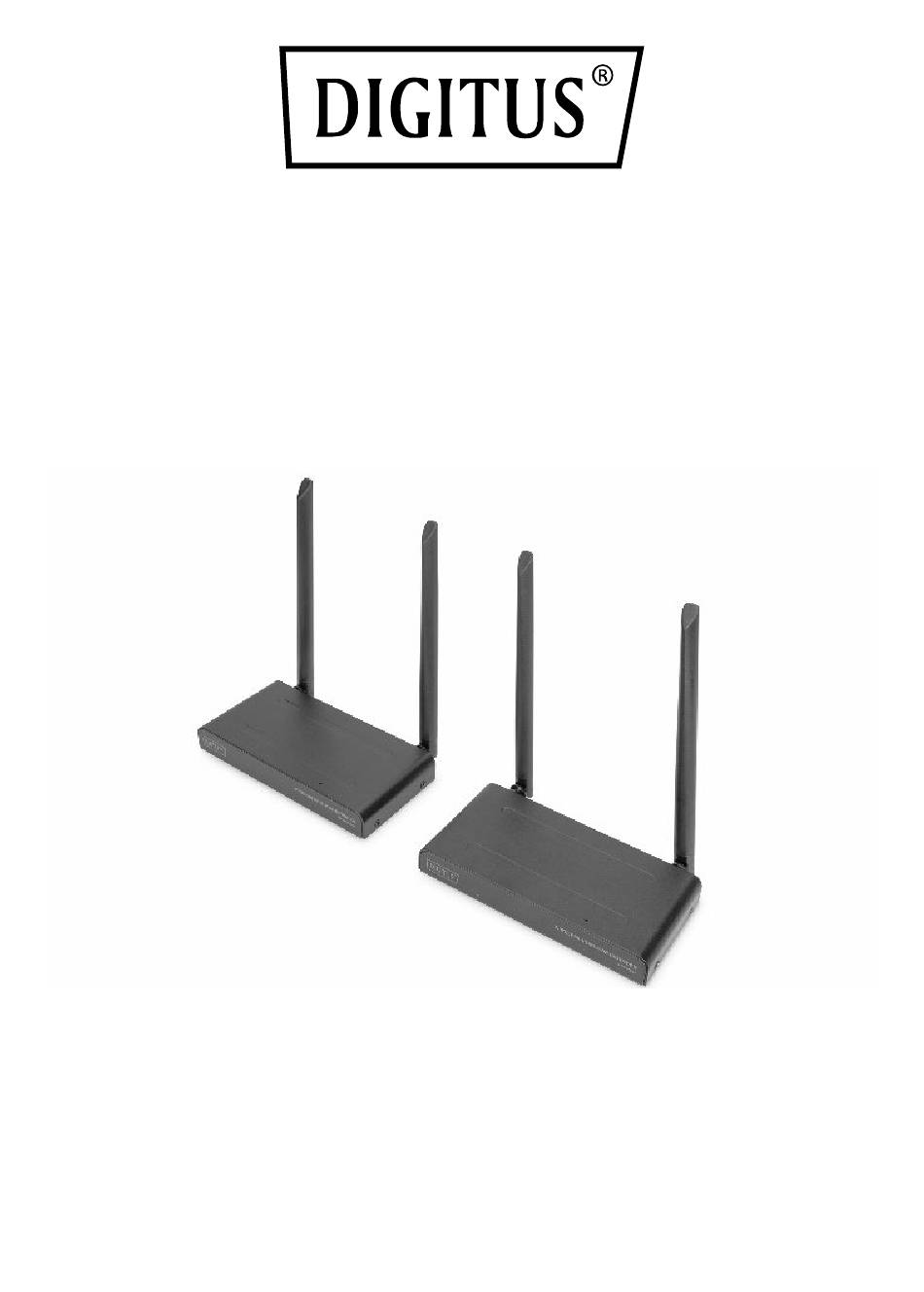

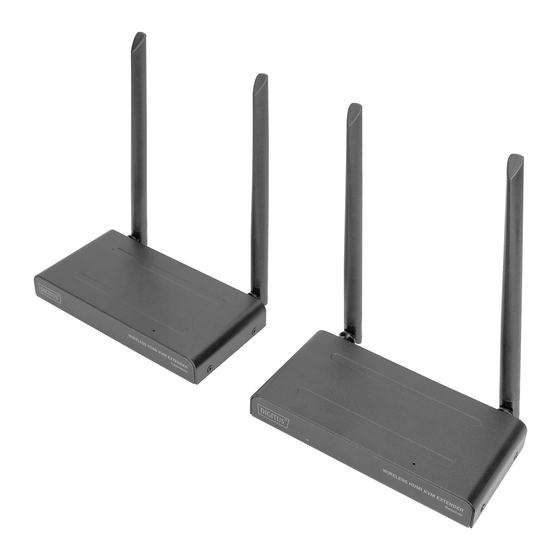

- Page 1 Wireless HDMI KVM Extender Set, 200 m Quick Installation Guide DS-55321...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................2 2. Main Features ............... 3 3. Package Contents ..............3 4. Product Features ..............4 5. Product Specification ............. 5 6. Connection Instruction ............7 Install Transmitter ..............7 Install Receiver ..............7 7. -
Page 3: Main Features
2. Main Features • Wireless HDMI signal transmission up to 200 m (with unobstructed view) • Point-to-point connection - 1x transmitter (source) + 1x receiver (output device) • Supports transmissions resolutions up to Full HD (1080p / 60 Hz) • KVM functionality for connection to mouse and keyboard •... -
Page 4: Product Features
4. Product Features Features Description Plug and play Simply connect the transmitter with the PC HDMI ports and connect the receiver with the screen, the transmitter and receiver will connect automatically 4K60 HDMI IN Supports up to 4K60 HDMI IN 4K60 HDMI Loop out Supports 4K60 Loop out with no latency... -
Page 5: Product Specification
Anti-interference Proprietary anti-interference Technology technology to ensure stable streaming in a crowded Wi-Fi environment, support up to 6 sets of equipment running at the same time at one space High Security Protection No worries about the data security, Wireless HDMI KVM Extender Set supports AES 128-bit security encryption and WPA2/WPA-PSK/ WPA2-PSK authentication protocol to... - Page 6 Interface HDMI OUT x 1 HDMI in x 1, Micro USB x 1, IR Jack x 1 Micro USB (DC 5V) Red/Blue Power supply DC5V/1A Power Consumption About 2,5 W Dimension 15.5 x 7.9 x 22 cm Weight 326 g Temperature Range Operating 0°C to +40°C (+32°F to +104°F)
-
Page 7: Connection Instruction
Blue x 1 Power Supply DC 5V/1A Power Consumption About 2,5 W Dimension 15.5 x 7.9 x 22 cm Weight 326 g Temperature Range Operating 0°C to +40°C (+32°F to +104°F) Storage -10°C to +60°C (+14°F to +140°F) Humidity Range Operating 10% to 80% relative humidity Storage... - Page 8 Transmitter Receiver back Receiver front view view 1. HDMI Loop out 4. USB cable 2. HDMI In 5. HDMI Out 3. IR Emitter cable 6. IR Extender function How to control the device by using remote control 1. Connect the IR emitter cable with the Transmitter IR jack, and stick the IR probe in front of the IR sender of the video source (Please find the correct position of IR sensor of the video source or the IR signal won't pass through)
-
Page 9: Questions And Answers
7. Questions and answers Q1: No Video/Bad Video or Incorrect Video/Video Stuck A1: This device will take about 25 seconds booting time after plug in the main power if all connects are OK, then you should see the signal on the TV on both Transmitter and Receiver A2: Please make sure the HDMI in/out are connected correctly, if above connects are OK, then make sure you are using the HDMI cable inside the gift box, which provides noise reduction and... - Page 10 Q2: Bad or incorrect audio A1: Our device only support 48/44. 1KHZ 16 bit digital audio, please check the source device set to correct audio standard A2: If problems still not solved, please restart Transmitter/ Receiver and try again Q3: The coverage distance is short A1: The max WiFi distance between Transmitter/ Receiver could reach 200 meters (Clear light of sight) If the environment is not good (too many WiFi signals or with...
- Page 11 Frequency Range & Maximum Transmit Power WiFi Standard: 802.11b/g/n/ac 5G WiFi Channel: 36, 40 Core Frequency: 5180,5200 Range: 5170 ~ 5210MHz Bandwidth: 20/40MHz Transmitter power: 13 dBm max SW version: RX: 2.64, TX: 2.3.8 HW version: TX: A11TX-LC01-01 RX: A11RX-LC01-01 Important safety instructions Please read the following safety instructions carefully before installation and operation:...
- Page 12 7. In the event of thunderstorms, there is a risk of lightning strike and damage to connected electrical equipment due to overvoltage 8. Do not install this device during a thunderstorm 9. Disconnect the device from the connected electrical appliances during a thunderstorm 10.
- Page 13 Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
