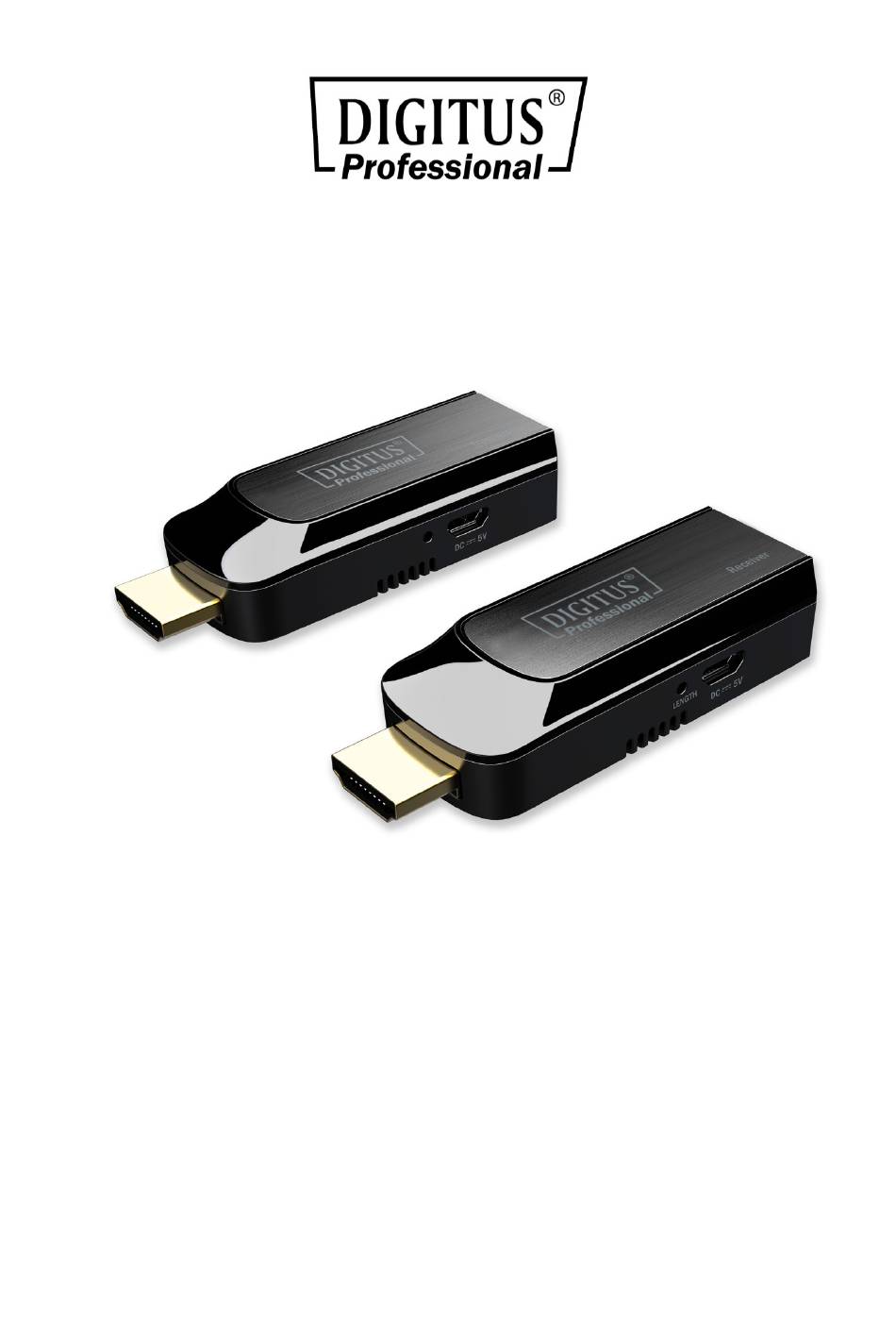

Mini HDMI Extender, Full HD
Manual
DS-55203
Product Introduction

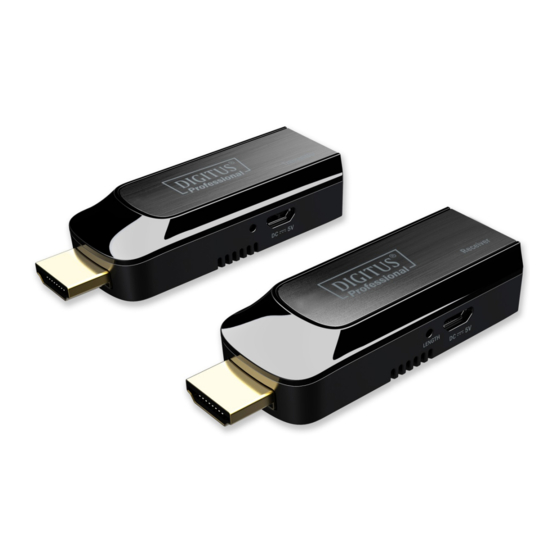

This HDMI Extender includes a transmitter unit (TX) and a receiver unit (RX), working
as a pair. It allows for transmission and extension uncompressed full HD1080p@60Hz
HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to
50 meters with zero latency. This product is perfect for AV transmission in
applications of HD conference system, HD video shooting, HD multimedia education
system, home entertainment and signage etc.
Advertisement
Related Manuals for Digitus DS-55203
Summary of Contents for Digitus DS-55203
-
Page 1: Product Introduction
Mini HDMI Extender, Full HD Manual DS-55203 Product Introduction This HDMI Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension uncompressed full HD1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 50 meters with zero latency. -
Page 2: Important Safety Notice
Important Safety Notice Please read below safety instructions carefully before installation and operation: 1. Do not mix up the transmitter unit (TX) and the receiver unit (RX) before installation. 2. Do not hot plug when it is working. 3. No extender power supply needed, use micro USB cable to power the transmitter, and receiver is powered from transmitter. -
Page 3: Specification
Specification Item Description Model DS-55203 HDMI version HDMI1.3 HDCP version HDCP1.2 480i@60Hz, 480p@60Hz, 576i@50Hz, Supported video resolution 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Supported audio formats L/R Stereo Audio HDMI Performance Input Maximum transfer rate 10.2Gbps and Interface ≤5m Input cable length (AWG26 HDMI cable support HDMI1.3) -
Page 4: Installation Requirements
Installation Requirements HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment…etc.) HDMI display device like SDTV, HDTV, and projector with HDMI port. UTP/STP CAT6/6A/7 cable, follow standard IEEE-568B. Panel Description 1. Transmitter unit (TX) RJ45 signal output Output encoded HDMI signal ... -
Page 5: Installation And Connection
Remarks: Users can press button “Length” to adjust the transmission distance of this device automatically or manually. If users do not press this button when power on, then the device will work like last time because of memory function. If users press this button after power, on the first “two times”... - Page 6 B. Connection USB Cable HDMI IN Transmitter Receiver HDMI Cable CAT6 HDMI display C. Connection instruction Plug the transmitter unit (TX) to the HDMI output port of the source device directly, and plug the receiver (RX) to the HDMI input port of the display device directly.
- Page 7 Disclaimer The product name and brand name may be registered trademark of related manufacturers. TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
