Takex PB-30SU Instruction Manual

We appreciate your purchase of a TAKEX photoelectric beam sensor. This sensor will provide long and dependable service when
properly installed. Please read this Instruction Manual carefully for correct and effective use.
Please Note : This sensor is designed to detect intrusion and to initiate an alarm ; it is not a burglary-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God ( including inductive
surge by lightning ), abuse, misuse, abnormal usage, faulty installation or improper maintenance.

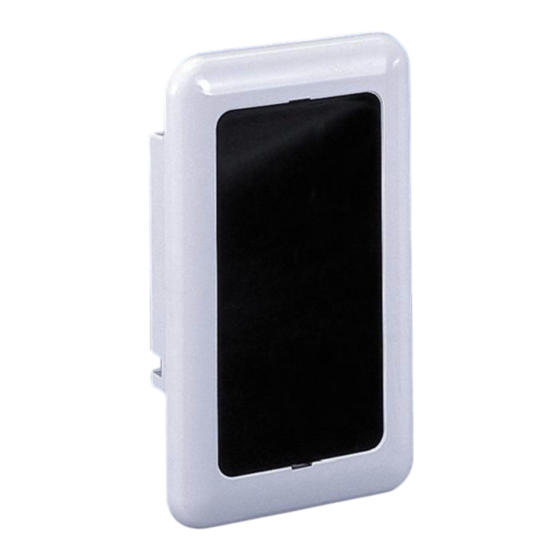

PRODUCT DESCRIPTION
This product is indoor ush mount photoelectric beam sensor.
PB-30SU is designed to t with an outlet box (Japanese) without obtrusion.
It blends well in any residential, commercial or industrial applications.
In addition to ush mount, exposed installation by using exposed outlet box is available.
1

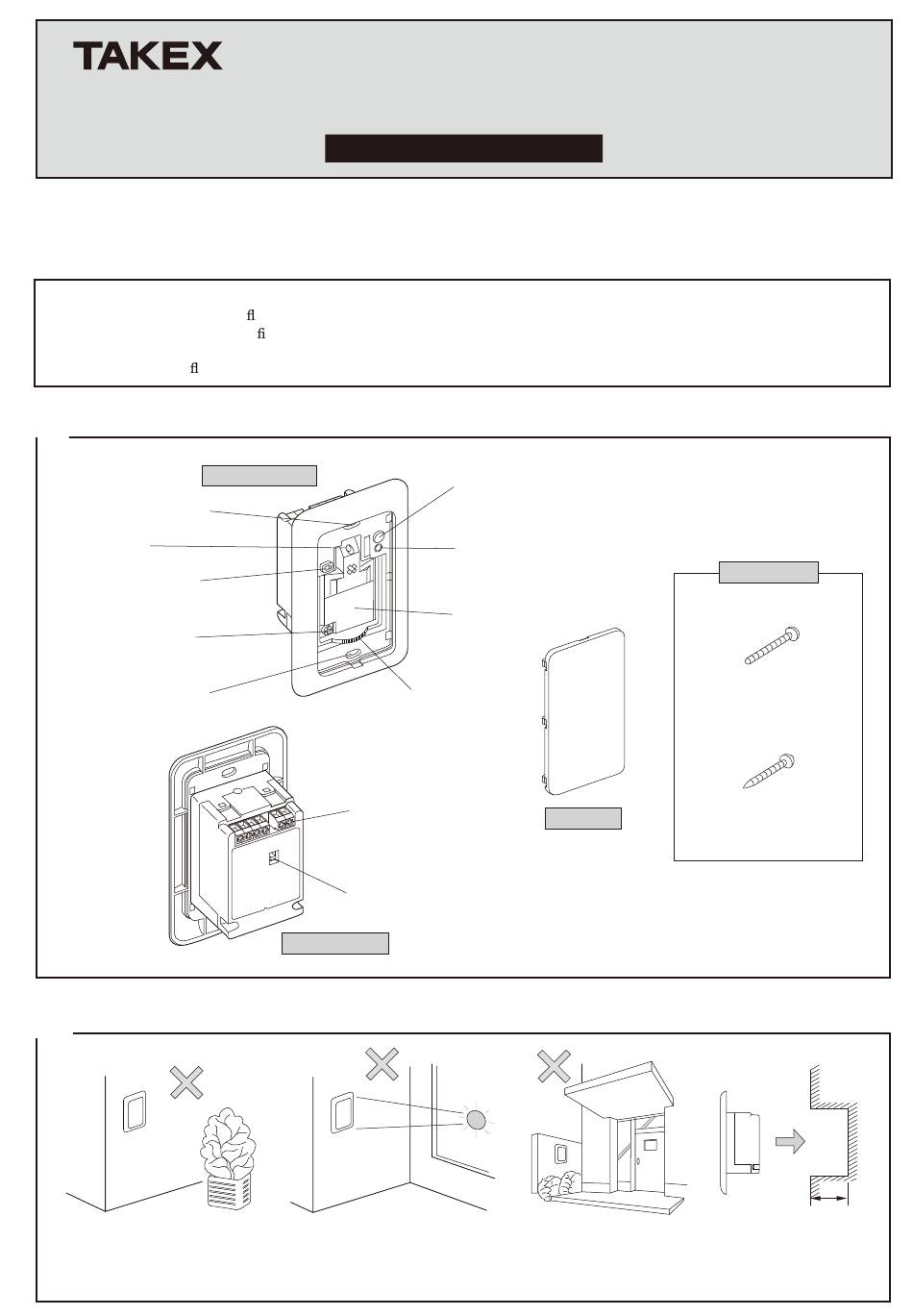

PARTS DESCRIPTION
Installation hole
Finder
Tamper switch
(Receiver only)
Vertical angle
adjustment screw
Installation hole
2
DO'S AND DON'T'S
Remove obstacles that may
●
interrupt the beam.
PHOTOELECTRIC BEAM SENSOR
Instruction Manual
FRONT SIDE
Horizontal angle
adjustment
Terminals
｛
Beam power selection switch [ L-H ] ( Transmitter )
Alarm contact selectable switch [ N.O.-N.C. ] ( Receiver )
BACK SIDE
Avoid strong light from the sun,
●
automobile headlights etc. shinning
on transmitter and receiver directly.
PB-30SU
LED masking rivet
( Receiver only )
｛
Transmission LED ( Transmitter )
Alarm LED ( Receiver )
Window
｛
2P ( Transmitter )
COVER
6P ( Receiver )
This product is for indoor
●
use only.
Accessory
Screw : 4 pcs.
Tapping screw : 4 pcs.
1.57"(40mm)
This product needs
●
1.57" (40mm) depth
from wall surface.
