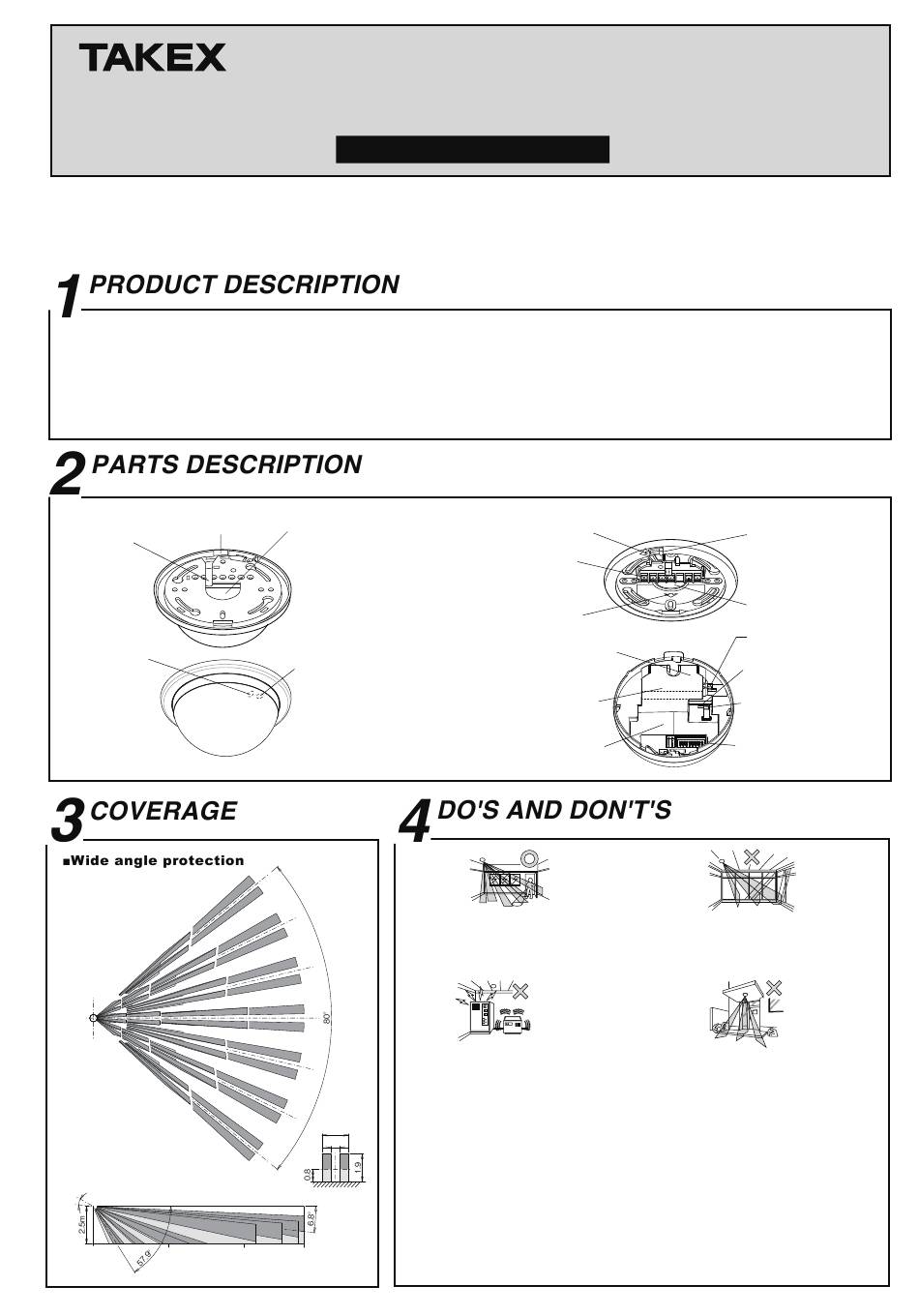

Takex PA-6614E Instruction Manual

Wide angle protection : PA-6614E ・PA-6614E(BL)：Black color
We appreciate your purchase of a TAKEX passive infrared sensor. This sensor will provide long and dependable service when
properly installed. Please read this Instruction Manual carefully for correct and effective use.
Please Note : This sensor is designed to detect intrusion and to initiate an alarm ; it is not a burglary-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God ( including inductive
surge by lightning ), abuse, misuse, abnormal usage, faulty installation or improper maintenance.

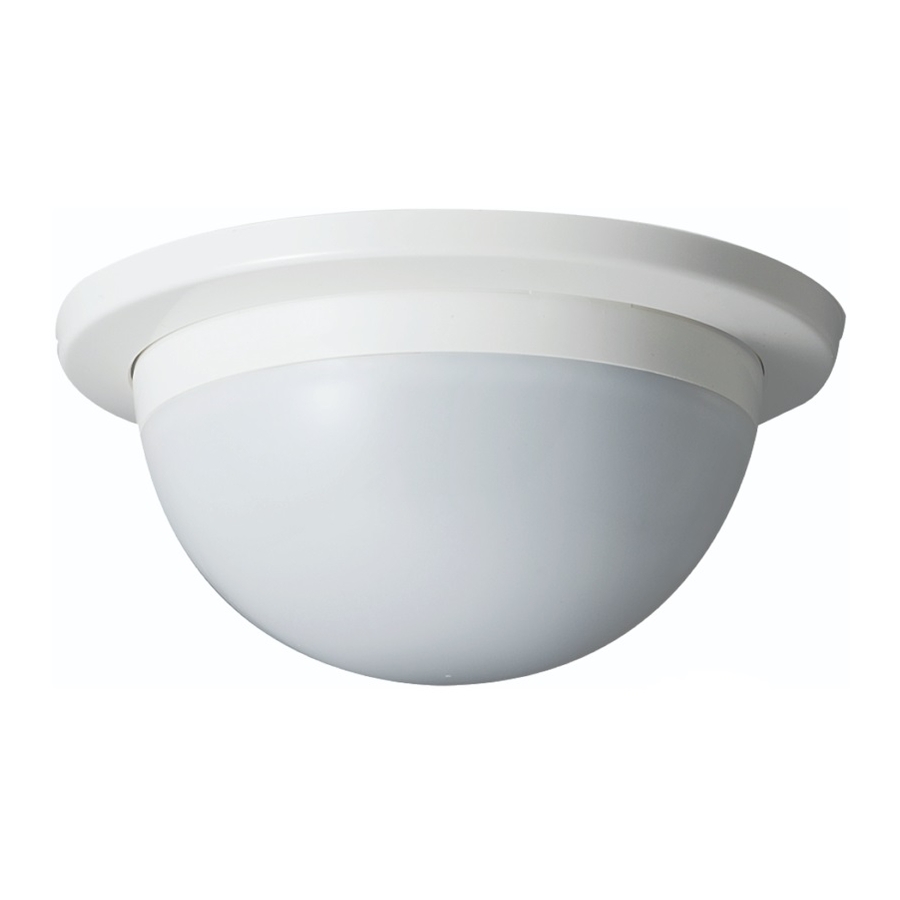

・PA-6614E is a passive infrared sensor that detects far-infrared energy emitted from the human body and outputs an alarm signal.
・A new detection system that combines the twin mirror system and the second generation fuzzy processing improve a detection
performance and reduce a false detection by small animals, and stable operation is possible in wide range of installation locations.
・Detection distance up to 14m(46')
・Mounting height up to 6m(19') in "High density mode" (*Max 5m(16') in "Standard mode")
・Lower current consumption makes it possible to use a power supply with a smaller capacity than before.
Wire lead
Wire lead
(Knockout)
(For exposed wiring)
Alarm LED
(inside) : Red
Top view
●
Side view
●
23.4°
Variable range
0
5
10
TWIN MIRROR
PASSIVE INFRARED SENSOR
Instruction Manual
Wiring hole
Memory LED
(inside) : Yellow
Install the sensor in a location where
●
intruders are more likely to cross the
protection zones, rather than approach
head on.
Do not install in a location which is
●
subject to electrical noise or
intense vibration.
[MAINTENANCE]
The passive infrared sensor is designed to detect infrared energy variations
●
1.8
caused by the presence of a human body.
0.6
Therefore, note that similar variations in conditions in protection area, due
to other reasons, may cause the sensor to create an alarm as it is unable
to distinguish between sources.
1.When the unit is soiled, clean the cover with a soft cloth moistened with a small
2.Check operation once a week.
14m
indicator 【Ｂ】
Locking screw hole
Terminals
Front mark
Front mark
Area setting chart
Function setting
amount of cleansing -solution.
Do not use chemicals such as thinners or alcohol.
Do not fail to check operation whenever furniture in coverage area is moved.
①
【BASE UNIT】
Release lever
Wiring hole
Range setting selector
【SENSOR UNIT】
Indicator
Area setting selector
Function selector
Avoid direct sunlight, spot light or
●
intense reflections on the sensor or
the protection zone.
Do not install the sensor outdoors
●
(indoor only).
